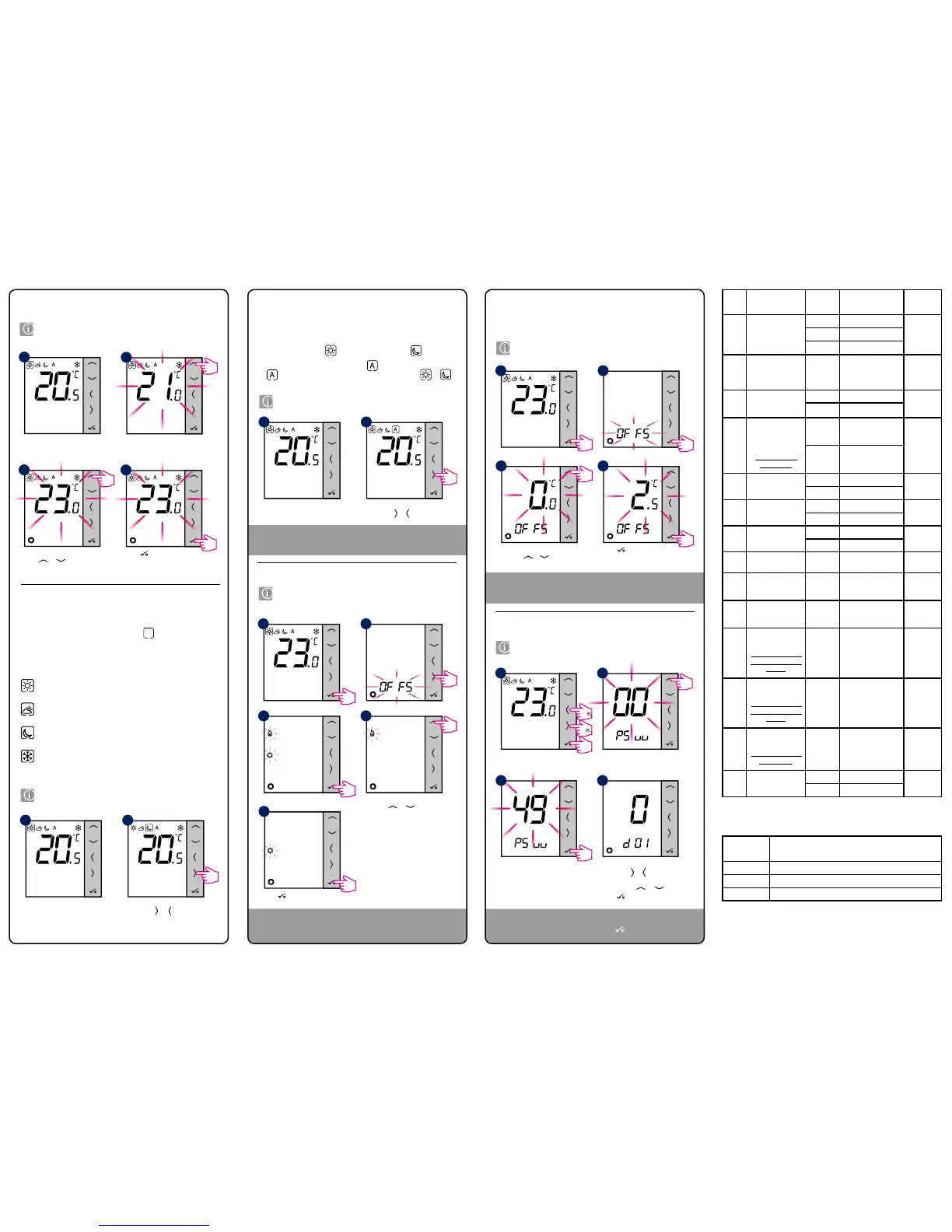

Salus VS35W Installation Manual

Temperature setting
Manual mode - temperature settings
NSB function - automatic mode
Changing the HEATING / COOLING mode
Oset function (temperature calibration)
Installer settings
Error codes
dxx Function Value Description
Default
value
d01
Control method
temperature
0 PWM algorithm
0
1 Span ±0.5°C
2 Span ±1.0°C
d02 Oset temperature
from -3.0°C
to +3.0°C
If the thermostat indica-
tes wrong temperature,
you can correct
it by ± 3.0°C
0°C
d03
Using a oor
temperature sensor
(S1, S2)
0 No sensor
0
1 Sensor is connected
d04
External sensor
used for air
or oor temperature
measurement
(Function is active,
when d03=1)
0
Thermostat measures
the temperature only on
the external sensor
0
1
The sensor is used
as a protection against
overheating the oor
d05
Cooling mode control
method
1 Span ±0.5°C
2
2 Span ±1.0°C
d06
Type of thermoelectric
actuator
0 NO - normally open
1
1 NC - normally closed
d07 Valve protection
0 OFF
1
1 ON
d08
Frost protection
temperature
5-17°C
Frost protection / Holiday
mode temperature
5°C
d12
Heating temperature
limit
5-35°C
The maximum heating
temperature that can be set
by the user
35°C
d13
Cooling temperature
limit
5-40°C
The minimum cooling
temperature that can
be set by the user
5°C
d14
Maximum oor
temperature
(this function is active
in heating mode when
d04 = 1)
6-45°C
In order to protect the
oor from overheating,
heating will be turned
OFF, when the maximum
temperature of the oor
sensor will be reached
27°C
d15
Minimum oor
temperature
(this function is active
in heating mode when
d04 = 1)
6-45°C
In order to protect
the oor, heating will
be turned ON, when the
minimum temperature
of the oor sensor will
be reached
10°C
d16
Lower oor temperature
limit for cooling
(this function is active
when d04 = 1)
6-45°C
In order to protect the
oor, cooling will
be turned OFF, when
the minimum temperatu-
re will be reached
6°C
d18
Operating mode
HEATING / COOLING
0 Heating system
0
1 Cooling system
Error code Description
Err02 The maximum / minimum oor temperature has been exceeded
Err03 Temperature sensor is faulty
Err04 Temperature sensor is shorted
1
4
3 sec
3 sec
3 sec
1
5
2
43
3 sec
Choose mode
using or buttons.
1 2
43
3 sec
Set Oset temperature value
using or buttons.
Set the temperature with
or buttons.
Select the service parameter
using or buttons.
The parameter value
is set by or .
Press to conrm the changes.
Simultaneously hold the buttons
for 3 seconds.
Press to conrm the changes.
Press to conrm the changes.
Current temperature.
Temperature set in the selected
operating mode.
Choose the temperature mode
using or buttons.
Select the automatic mode
using or buttons.
Press to conrm the changes.
Press any button to highlight the screen, then follow the steps below:
Press any button to highlight the screen, then follow the steps below:
Press any button to highlight the screen, then follow the steps below:
Press any button to highlight the screen, then follow the steps below:
Press any button to highlight the screen, then follow the steps below:
There are 4 temperature levels available. In manual mode only one
temperature level is active (icon in the frame indicates which mode is
currently choosen). For each temperature levels you can set a dierent
temperature.
The NSB (Night SetBack) function can automatically change temperatures
on VS35 daily thermostats via VS30 programmable thermostat connected to
a wiring centre (or another external clock). NSB function switches between
comfortable temperature and economic temperature .
The VS35 thermostat allows you to adjust the displayed temperature ± 3.0°C.
You can do it according to the following steps:
To activate the automatic mode, select the icon. On display together with
the icon, the controller indicates active temperature mode: or .
- Comfort mode
- Standard mode
- Economic mode
- Frost protection mode. Usually used in a longer period of absence
or during the holidays (available only in heating mode).
Press any button to highlight the screen, then follow the steps below:
Note: You can also set the Oset temperature value using the service
parameter d02.
Note: For the NSB function to work, it is necessary to connect the wirings
properly. Connection diagrams can be found on the previous page.
2
3
Note: To restore the thermostat’s factory settings, in step 2 set the PSuu
to 47 code, and conrm the selection with the button.
Note: Heating / cooling mode can also be set using the service parameter
d18.
2
2
1
1
1
2
3
4

Salus VS35W Specifications

General

Brand	Salus
Model	VS35W
Category	Thermostat
Language	English
