WARNING
These pumps are operated with a non-vented reservoir. If the reservoir
is subjected to high pressure, the casing may rupture, causing
personal injury and/or equipment damage. NEVER attempt to return
more oil to the reservoir than it is capable of holding.
INSTALLATION
Connecting the Pump
1.
Thread hose into pump outlet. Use 1
1
⁄
2
wraps of Teflon tape (or suitable thread
sealant) on hose fitting, leaving the first complete thread free of tape to ensure that
tape does not shed into hydraulic system, causing damage. Trim loose ends.
2. Install a pressure gauge in-line from the pump for added safety and better control.
3. Connect the hose(s) to your cylinder or tool.
Pump Venting
Pump Position
NOTE:
When operating the pump in the vertical position, the hose end must be pointed
down, or the pump will pick up air and will not build pressure properly.
A
Release Valve
B
3
/
8
NPTF
Outlet Port
C
Fill Plug
C
OPERATING POSITION
HC-15 . . . . . . . . . . . . . . . . . either

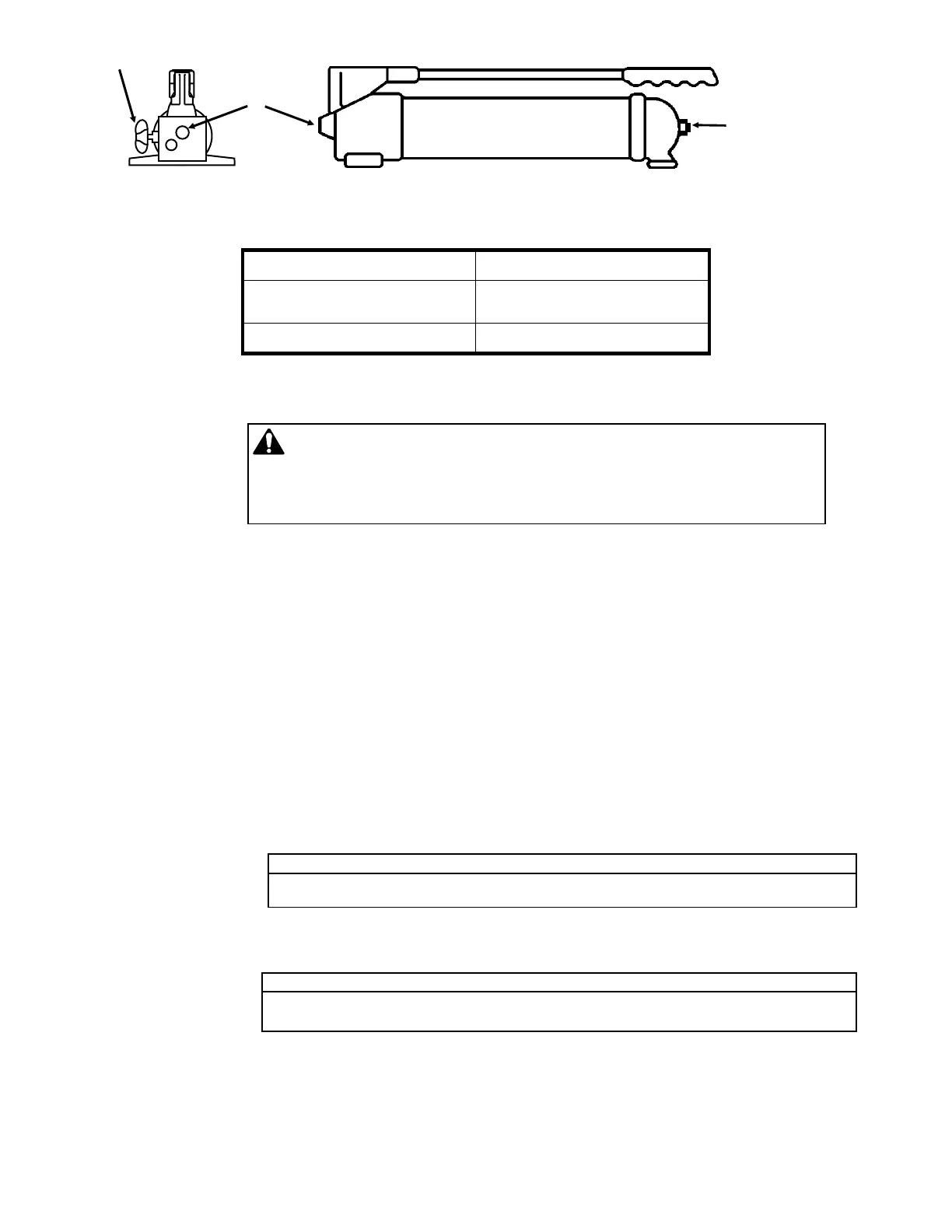

Figure 1
A
B
VENTING OPTIONS
HC-15 . . . . . . . . . . . . . . non-vented
2
