3. LOAD SENSING VALVE, PRESSURE CONTROL VALVE

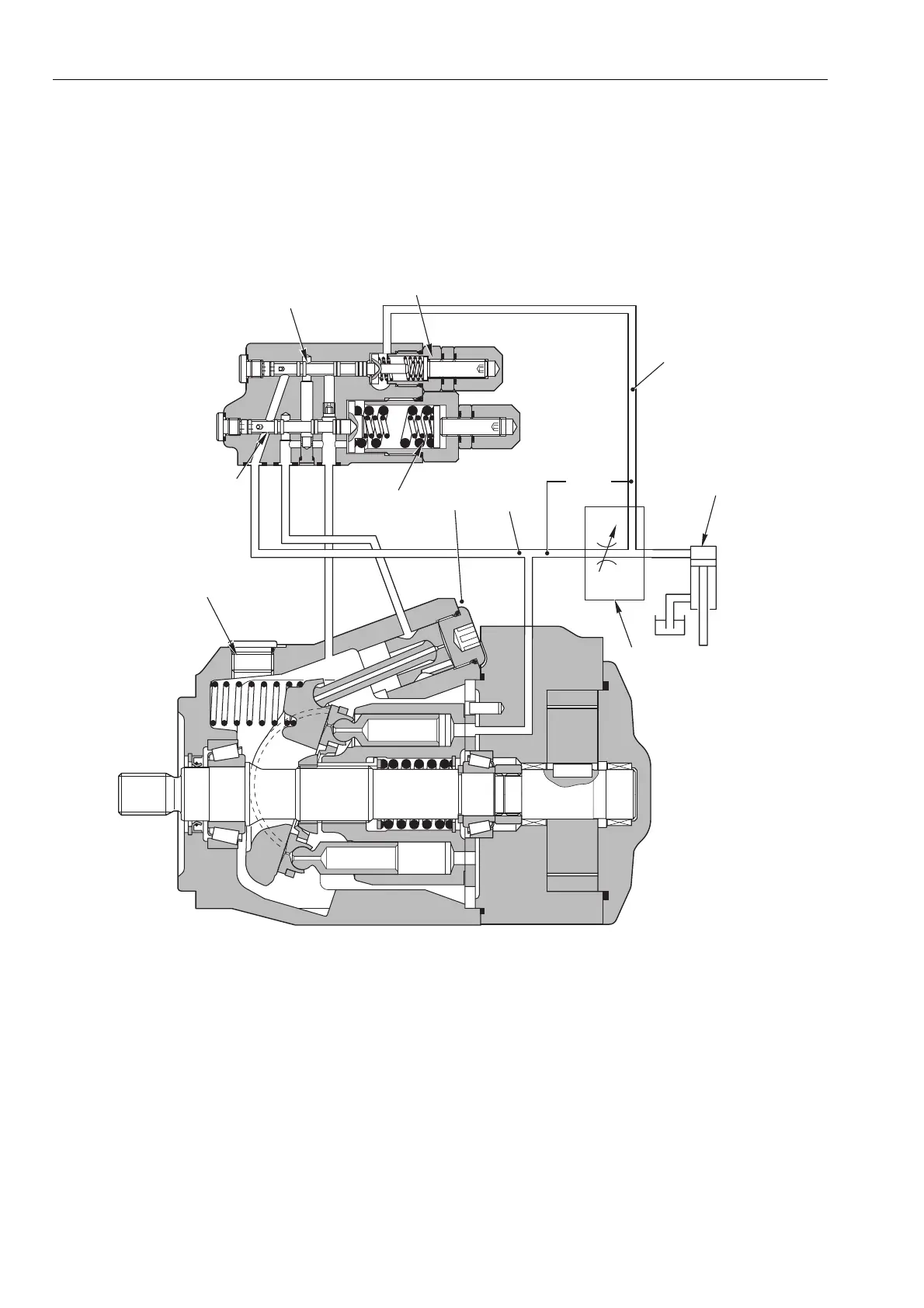

COMPONENTS
1. Load Sensing valve spool
2. Load sensing valve spring
3. Pessure control valve spool
4. Pessure control valve spring
5. Swash plate return spring
6. Control piston
7. Directional control valve
8. Actuator
D000 0560
1
2
3
4
6
7
8
5
PP
⌬PLS
PLS
LOAD SENSING VALVE, PRESSURE CONTROL VALVE
