1. Introduction
WARNING : Safety warning: the GNM 100 must never be installed in an explosive atmosphere.
This means it must be installed outside the coating booth at a minimum distance of 1.5 meters
(5 feet) from the nearest opening.
The
GNM 100-A
is a control module (controller) for controlling the high voltage generated by the units
hereafter called “high voltage units”. The controller has to be used with SAMES high voltage units.
The model referred as the
GNM 100-A
is enclosed in a ventilated case which conforms to IP 20, refer-
ence number 858224. The “
A
” version is for the installation of racks and electrical control panels.
This type of GNM is designed to be installed in the back of the metallic cabinet with the help of fourlegs
(leg contact/cabinet back) metallic hooks on GNM box designed for that.
The back of the cabinet must be connected to earth (cable up or equal to 6 mm2).
For an other configuration (for example installation on a door of a panel) the box must absolutely be con-
nected to earth of installation through a cable or a metallic braiding of cable with a gauge up or equal to
6 mm2.
WARNING : Customer is responsible the checking which local fire & safety standards apply for
his operation. For a use in cabinet, the room temperature must be below 45°C.
We strongly advise you not to place the GNM close to any source of heat, which would increase
its inner temperature and engender a working defect.
However, if the GNM has to be located in such conditions, provide for an air conditioning device.
The maximum temperature is 45°C for a use with a 90 KV/ 100µA high voltage unit (HVU).
This maximum temperature depends on the supplied power, therefore on the type of HVU/
sprayer which controls the GNM.
Storage temperature: 0°C to 70°C
High voltage units for use in the automatic mode are:
UHT 108, 208, 152, 153, 037.
2. Description
2.1. Presentation
The
GNM
is a control module equipped with a microprocessor. The operation of the controller and
access to the function and parameters are through the front panel. The front panel contains a two line
display, 5 buttons and 3 LED Lights.
Notes: * - Special Functions are described in this manual in their appropriate sections.

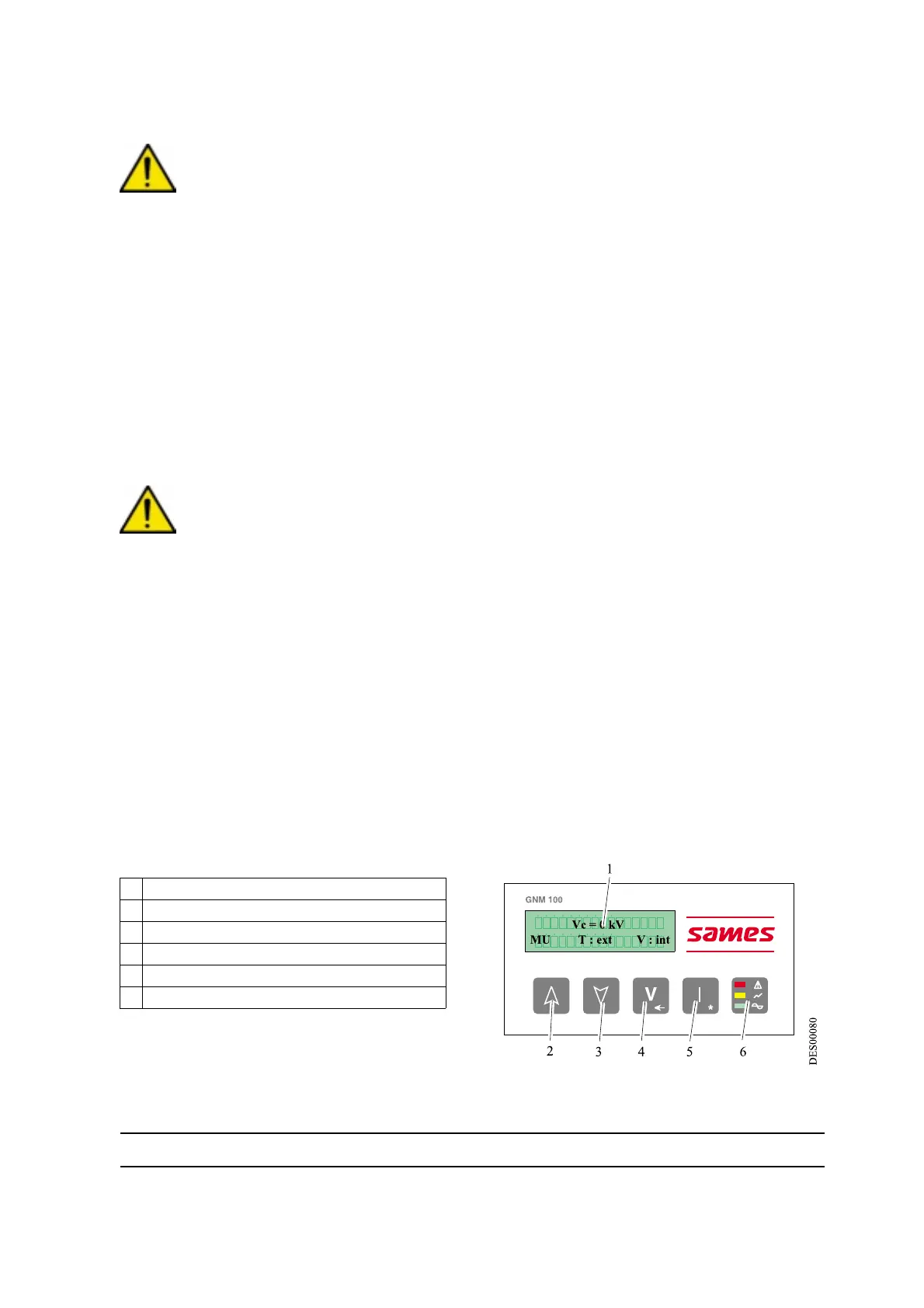

1 Display screen
2 Increment parameter values (+.)
3 Decrement parameter values (-.)
4 Validation Enter / Next Screen
5 Previous Screen / Special Function*
6 Operating LED Lights
