SAMES KREMLIN GNM 100-A - 2.2. Specifications

Indice de révision : G 5 6102
Description of the Operating LED Lights

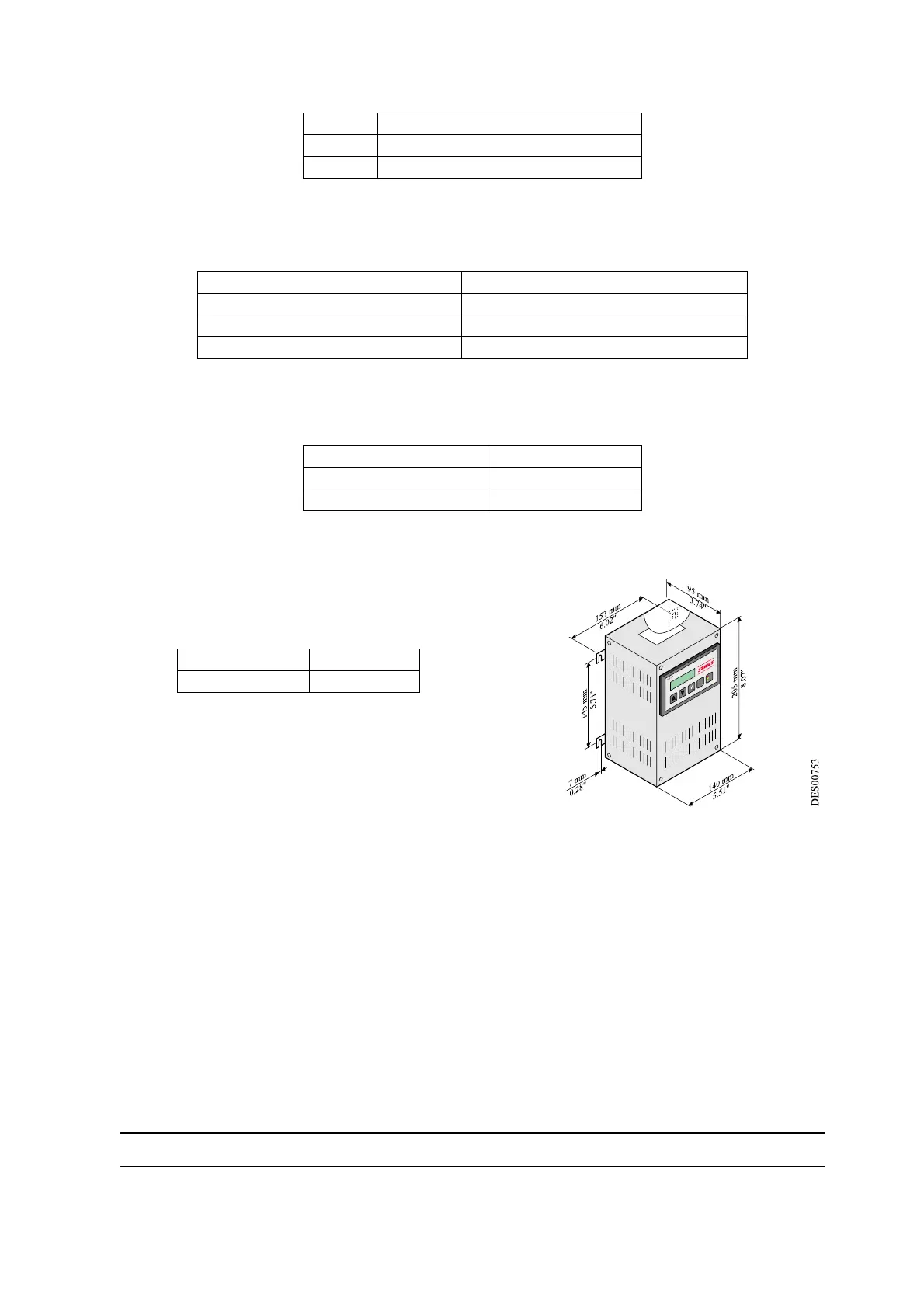

2.2. Specifications
2.2.1. Electrical input data
2.2.2. Electrical output data
2.2.3. Size and weight
2.2.4. Connecting Cables Specifications
A - Low Voltage Cable ( GNM to high voltage unit)
• 22 Gauge Minimum, 0.34mm2, shielded
• 12 Pin Connector
• 30 Meters Maximum length, 100 feet.
• Male Plug Reference Number E4PTFS343
B - PLC Cable
• 22 Gauge Minimum, 0.34mm2, shielded
• 19 Pin Connector
• 30 Meters Maximum Length, 100 feet.
• Female Plug Reference Number E4PTFS406
C - Atomizer Cable
• Cable: no specifications.
• 7 Pin Connector
• Male Plug Reference Number E4PTFS316
Green GNM Power is ON
Orange High Voltage is Triggered (HV ON)
Red Fault
Input voltage 220 VAC +/- 20 V or 110 VAC + / - 20 V
Frequency 50 / 60 Hz
Max input power for GNM 100-A 80 VA
Impedance 0 - 10 V ~ 15 k Ω
Max output voltage 60 V RMS
Frequency output 16-60 kHz
Max output current 1,1 A RMS
Protection IP 20
Mass 2.2 kg
