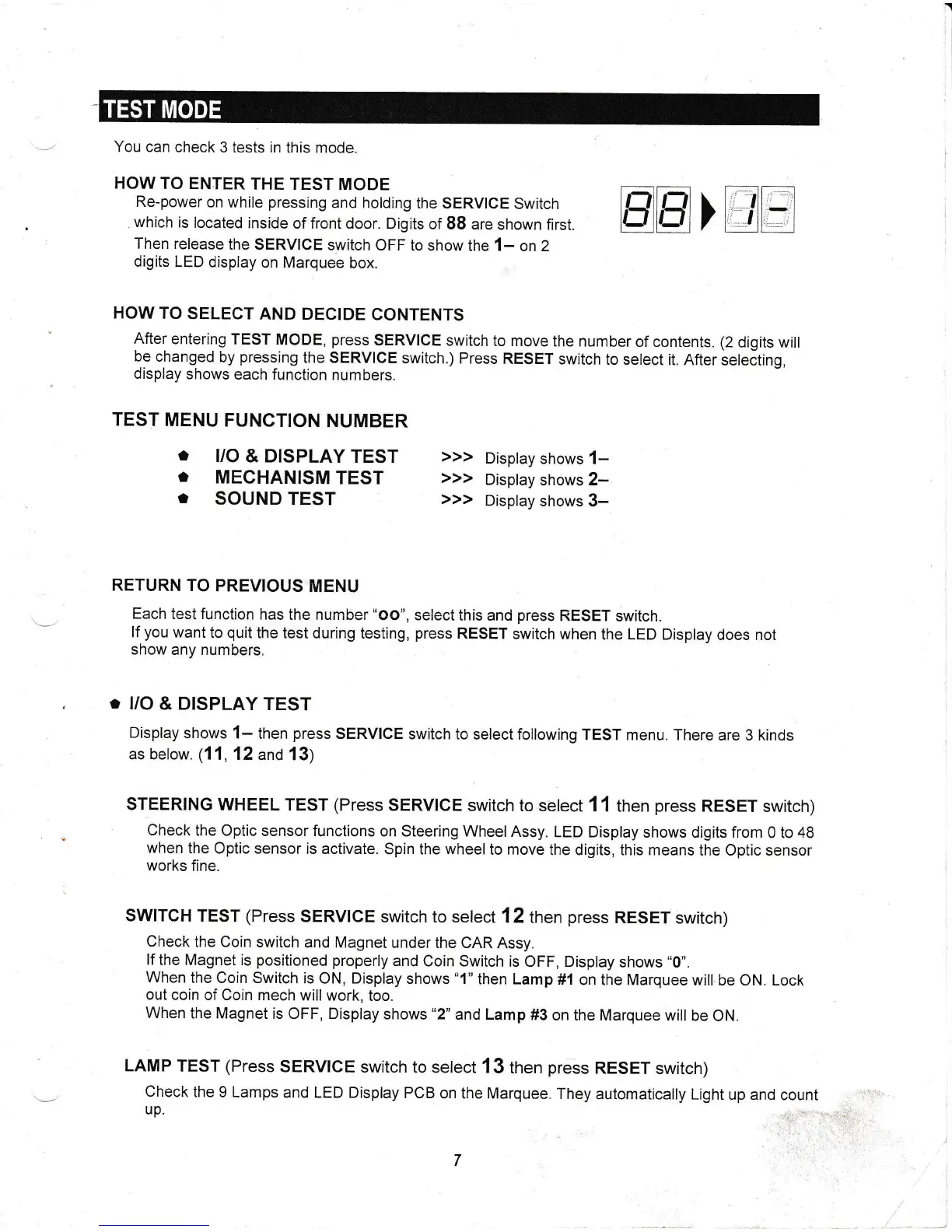

Sammy Mighty Driver - TEST MODE PROCEDURES; Entering and Navigating Tests; Specific Test Functions

You can
check
3 tests in
this mode.
HOW
TO ENTER
THE TEST MODE
Re-power
on while
pressing
and holding
the SERVICE
Switch
which
is
located
inside
of front door. Digits
of 88 are
shown first.
Then
release
the SERVIGE
switch
OFF
to show the
1- on 2
digits LED
display
on Marquee
box.
EE)ET
HOW
TO
SELECT
AND DECIDE
GONTENTS
After
entering
TEST
MODE,
press
SERVICE
switch
to move
the
number
of contents.
(2
digits
will
be changed
by
pressing
the SERVICE
switch.)
Press
RESET
switch
to select
it. After
selecting,
display
shows
each
function numbers.
TEST
MENU
FUNCTION
NUMBER
.
I/O
& DISPLAY
TEST
.
MECHANISM
TEST
.
SOUND
TEST
RETURN
TO
PREVIOUS
MENU
Each
test function
has
the number
"oo",
select this
and
press
RESET
switch.
lf
you
want
to
quit
the test during
testing,
press
RESET
switch when
the LED Display
does not
show
any numbers.
r
I/O
& DISPLAY
TEST
Display
shows 1-
then
press
SERVICE
switch to select
following
TEST menu. There
are 3 kinds
as below.
(1,
12
ana 131
STEERING
WHEEL TEST
(Press
SERVICE switch
to select
11
ttren
press
RESET
switch)
Check
the Optic
sensor functions
on Steering WheelAssy.
LED Display
shows digits from
0 to
48
when
the
Optic sensor
is activate.
Spin the wheel
to move
the digits, this means
the Optic sensor
works
fine.
SWITCH
TEST
(Press
SERVICE
switch to select
12
tfren
press
RESET
switch)
Check
the Coin
switch
and Magnet
under the CAR Assy.
lf
the Magnet is
positioned
properly
and
Coin Switch
is OFF, Display
shows
"0".
When
the
Coin Switch
is ON, Display
shows
"l"
then Lamp
#1
on the Marquee
will be ON. Lock
out coin
of Coin mech
will work,
too.
when
the Magnet
is oFF, Display
shows
"2"
and Lamp
#3
on the Marquee will
be
oN.
LAMP
TEST
(Press
SERVICE
switch to
select 13
tfren
press
RESET
switch)
Check
the
9 Lamps
and LED Display
PCB
on the Marquee"
They automatically
Light up and
count
up.
