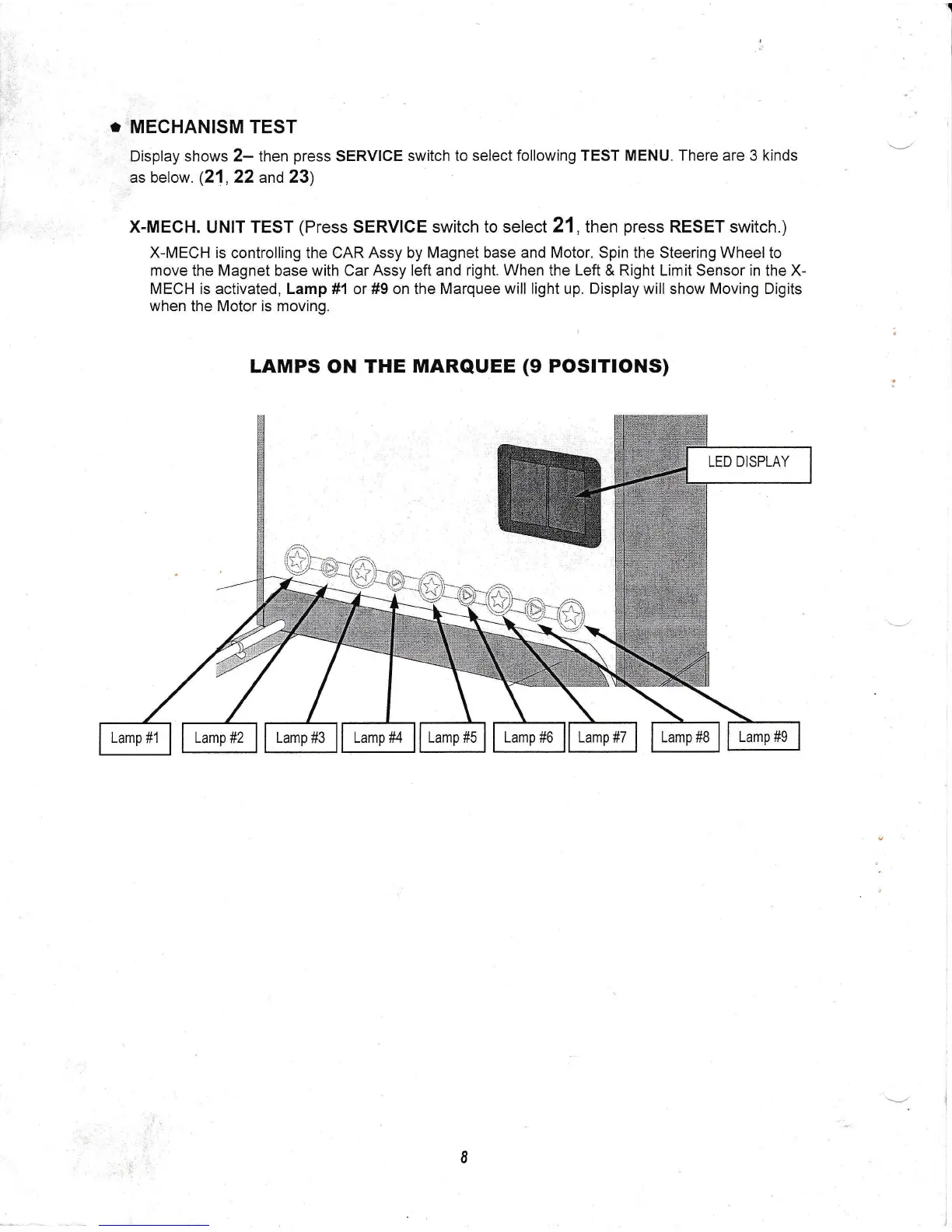

MECHANISM TEST
Display shows 2- then
press
SERVICE
switch to
select following TEST MENU. There are 3
kinds
as below.
(21,22
and 23)
X-MECH.
UNIT TEST
(Press
SERVICE
switch to select 21, then
press
RESET switch.)
X-MECH is
controlling the CAR
Assy
by
Magnet base and Motor. Spin the Steering Wheelto
move
the
Magnet base with Car Assy left and right.
When
the
Left
& Right Limit Sensor in the X-
MECH is activated, Lamp #1or#9 on the Marqueewill light up.
Displaywillshow
Moving Digiis
when
the
Motor is moving.
LAMPS ON THE
MARQUEE
(9
POSTTTONS)
