No. Code Description Qty. Notes
1 Table 1 Directional valve 1 Options:
Normal exhaust
Driven exhaust
Externally controlled
2 Table 2 Balls -
3 Table 3 Ball check seats / O-rings / Ball guides -
4 Table 4 Bushing / Seal / Push rod -
5 Table 5 Diaphragms -
6 Table 6 Air sensor - Not available with externally controlled models
7 755111 Diaphragm cover enclosure 2 (Not sold as a kit)
8 940334 Diaphragm cover bolts 20 (Not sold as a kit)
10 940914 Upper and lower shield bolts 7 (Not sold as a kit)
12 940319 Valves cap bolts 8 (Not sold as a kit)
13 Table 13 Balls caps 2 (Not sold as a kit)
14 Table 14 Body 1 (Not sold as a kit)
17 855604 Cover 2 (Not sold as a kit)
21 Table 9 Upper shield 1 (Not sold as a kit)
22 Table 9 Lower shield 1 (Not sold as a kit)

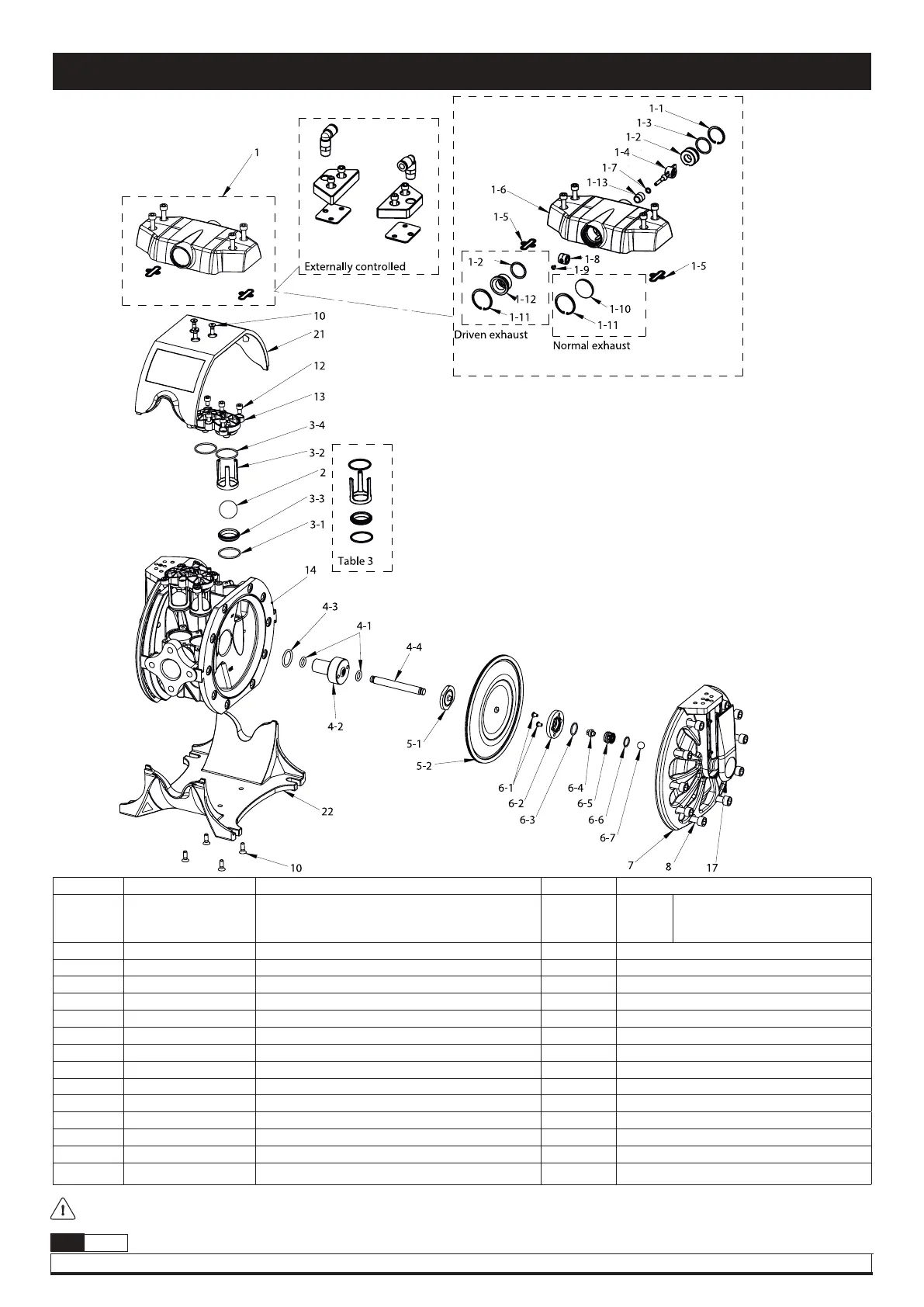

Composite body pump parts
DF100 METALLIC
Directional valve is sold as
kit. Assembled and verified
in Samoa facilities.
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to 55xxxx go to
page 14, if that code corresponds to DFXXXXXXXXX go to page 16.
