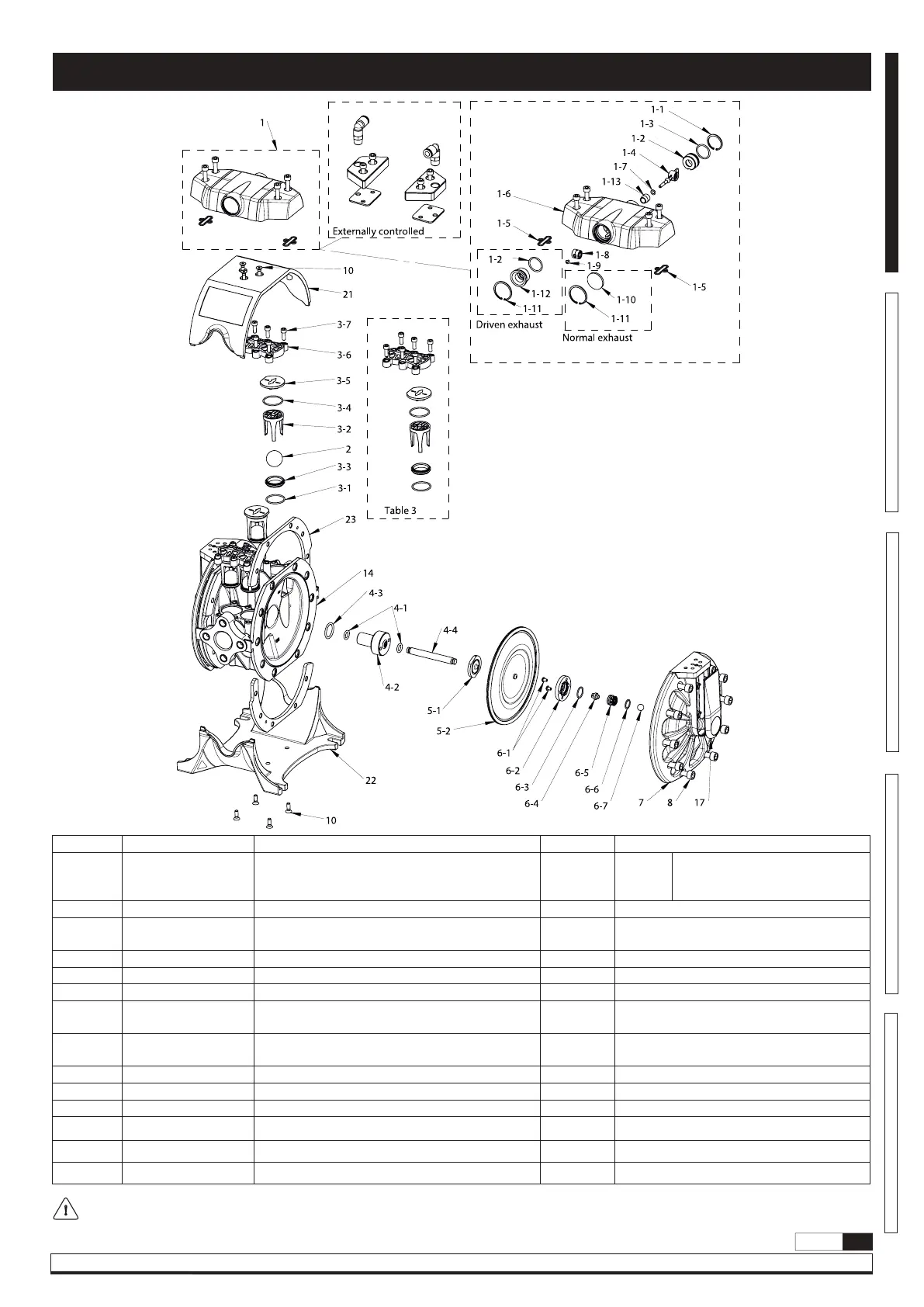

Composite body pump parts
DF100 COMPOSITE
No. Code Description Qty. Notes
1 Table 1 Directional valve 1 Options:
Normal exhaust
Driven exhaust
Externally controlled
2 Table 2 Balls -
3 Table 3
Ball check seats / O-rings /
Ball guides
-
4 Table 4 Bushing / Seal / Push rod -
5 Table 5 Diaphragms -
6 Table 6 Air sensor - Not available with externally controlled models
7
755111 /
894621
Diaphragm cover metallic enclosure pumps /
Non metallic pumps
2 (Not sold as a kit)
8
940334 /
940086+942158
Diaphragm cover bolts metallic series /
Non metallic series + washer
20 (Not sold as a kit)
10 940914 Upper and lower shield bolts 7 (Not sold as a kit)
14 Table 14 Body 1 (Not sold as a kit)
17 855604 Cover 2 (Not sold as a kit)
21 Table 9 Upper shield 1 (Not sold as a kit)
22 Table 9 Lower shield 1 (Not sold as a kit)
23 855416 Diaphragm cover washers 4 *Only for composite
Directional valve is
sold as kit. Assembled
and verified in Samoa
facilities.
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to 55xxxx go to
page 14, if that code corresponds to DFXXXXXXXXX go to page 16.
