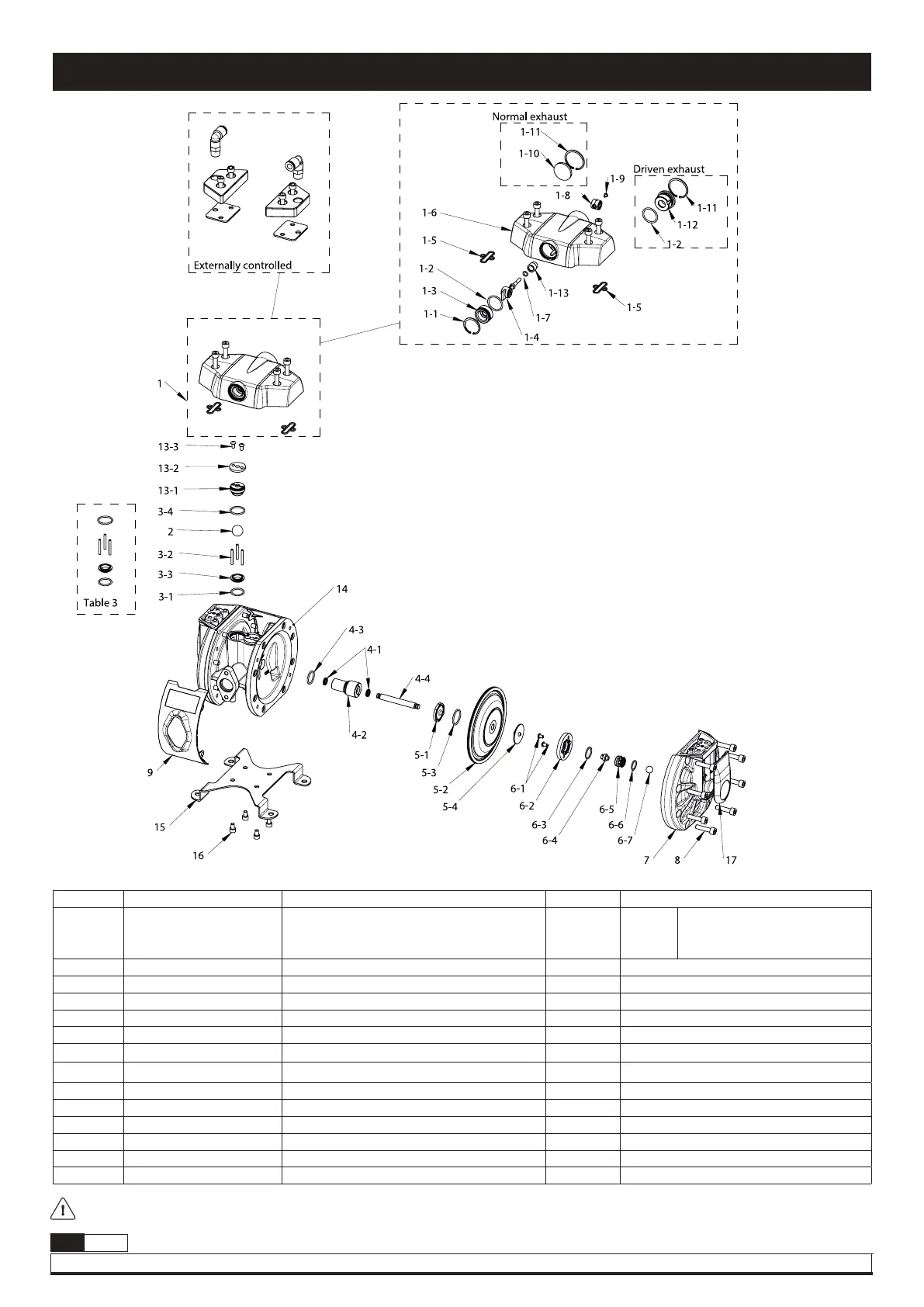

Composite body pump parts
DF50 STAINLESS
No. Code Description Qty. Notes
1 Table 1 Directional valve 1 Options:
Normal exhaust
Driven exhaust
Externally controlled
2 Table 2 Balls -
3 Table 3 Ball check seats / O-rings / Ball guides -
4 Table 4 Bushing / Seal / Push rod -
5 Table 5 Diaphragms -
6 Table 6 Air sensor - Not available with externally controlled models
7 755106 Diaphragm cover metallic enclosure pumps 2 (Not sold as a kit)
8 940380 Diaphragm cover bolts metallic series 16 (Not sold as a kit)
9 Table 9 Pump shields 2 (Not sold as a kit)
13 Table 13 Balls caps 2 (Not sold as a kit)
14 Table 14 Body 1 (Not sold as a kit)
15 855414 Pump support 1 (Not sold as a kit)
16 940319 Support bolts 4 (Not sold as a kit)
17 855601 Cover 2 (Not sold as a kit)
Directional valve is
sold as kit. Assembled
and verified in Samoa
facilities.
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to 55xxxx go to
page 14, if that code corresponds to DFXXXXXXXXX go to page 16.
