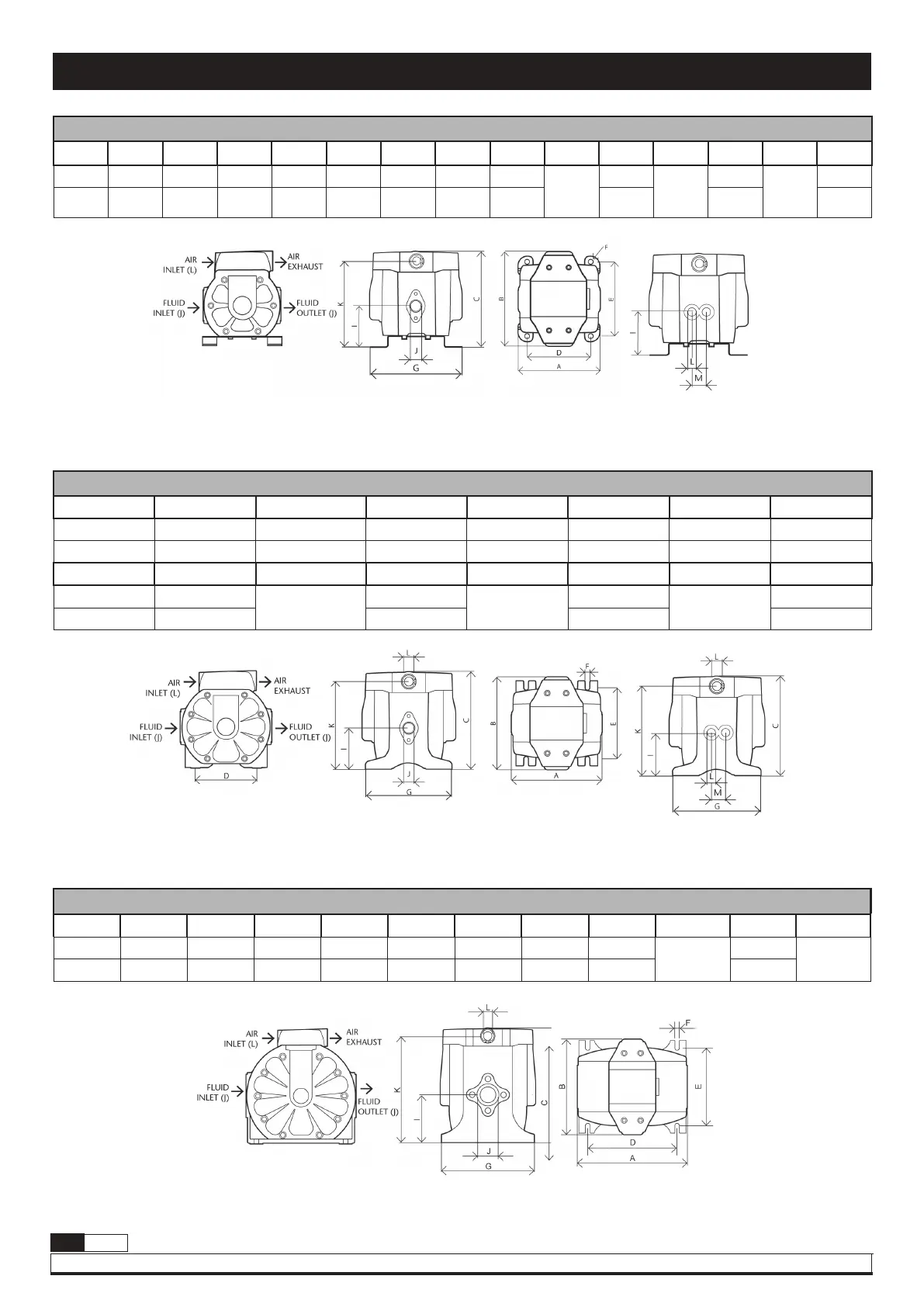

Dimensions
Only DF30T
Only DF50T
DF30 / DF30T
A B C D E F G H I J K L M N P
5.12" 6.3" 6.38" 4.13" 4.8" 0.31" 5.51" 5.31" 2.76" 1/2"
BSP
NPT
5.71" 3/8"
BSP
NPT
0.94"
M6
1,61"
130 mm 160 mm 162 mm 105 mm 122 mm 8 mm 140 mm 135 mm 70 mm 145 mm 24 mm 41 mm
DF50 / DF50T
A B C D E F G H
6.14" 6.3" 6.57" 4.13" 4.8" 0.31" 5.75" 5.51"
156 mm 160 mm 167 mm 105 mm 122 mm 8 mm 146 mm 140 mm
H I J K L M N P
5.51" 2.76"
1/2" BPS NPT
NPSM
5.91"
3/8" NPSM
0.94"
M6
1.61"
140 mm 70 mm 150 mm 24 mm 41 mm
DF100
A B C D E F G H I J K L
8.5" 7.44" 8.94" 6.89" 6.06" 0.35" 7.24" 8.27" 3.72"
1"BSP
NPT
8.27"
3/8" NPSM
216 mm 189 mm 227 mm 175 mm 154 mm 9 mm 184 mm 210 mm 94,51 mm 210 mm
