Samson 3222 N - 6 Dimensions in MM and Weights

6 Dimensions in mm and weights
14 EB 5867 EN

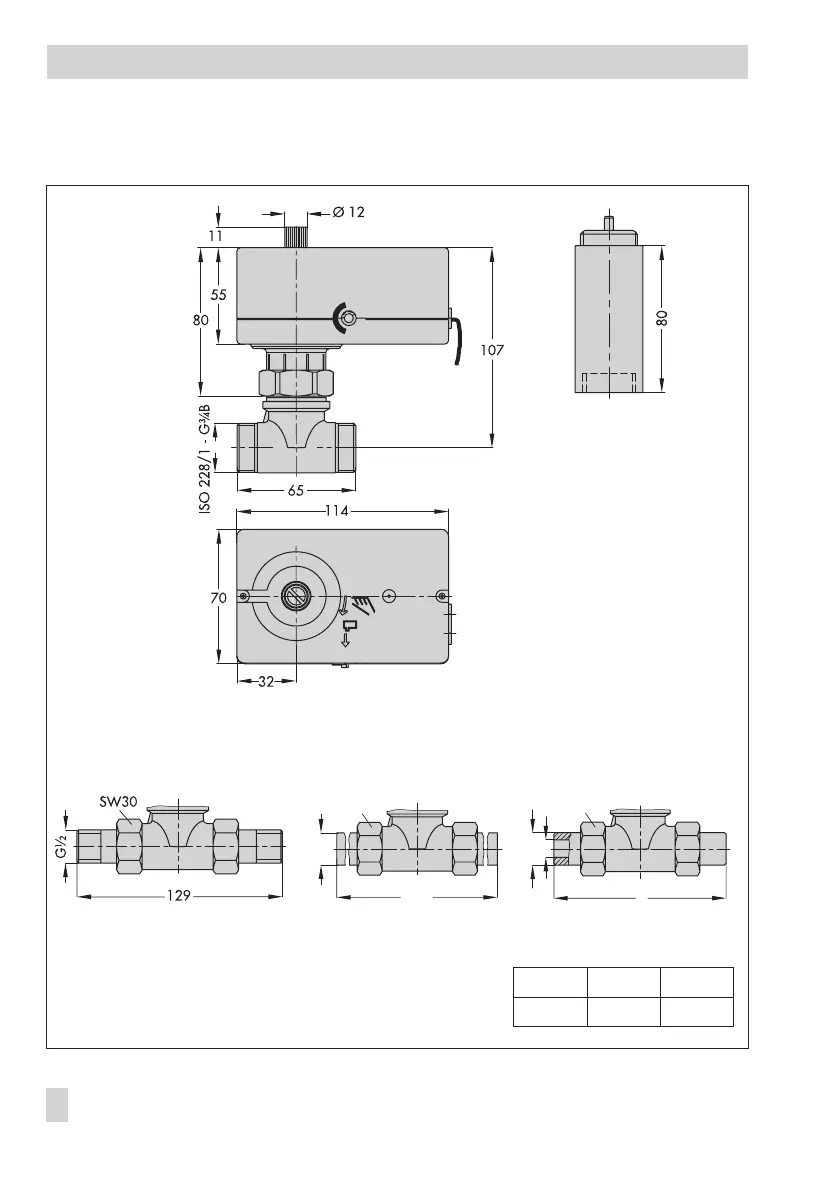

Dimensions in mm and weights
Type 3222 N/5857 (basic version)
Type 3222 N Valve with Type 5857 Actuator
Intermediate
insulating piece
Version with threaded ends
L
SW30
Ø21.3
di
Version with soldering ends
Inside
∅
di 15 18
Length L 107 103
210
SW30
Ø21.3
Version with welding ends
Weights:
Valve without actuator: Approx. 0.3 kg
Valve with actuator: Approx. 1.0 kg
