EB 8026 EN 2-1
Markings on the device
2 Markings on the device
The nameplate shown was up to date at the
time of publication of this document. The
nameplate on the device may differ from the
one shown.

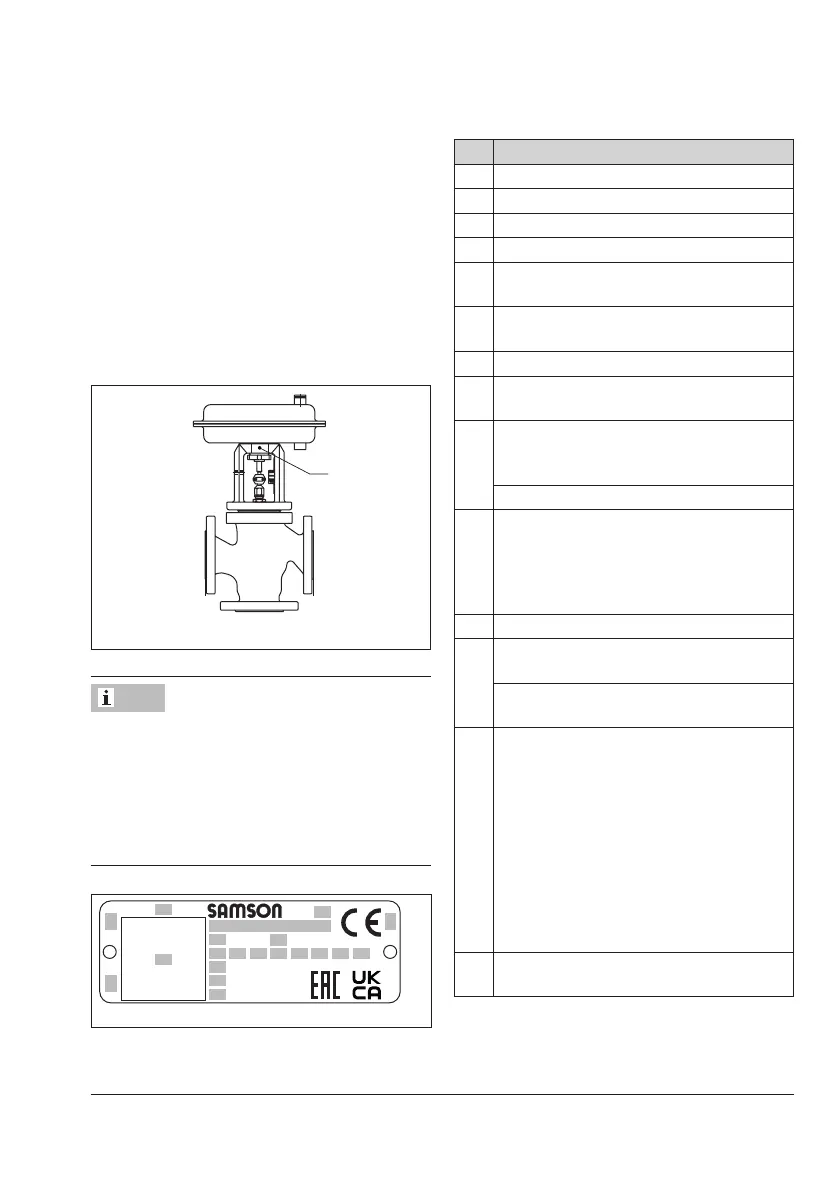

2.1 Valve nameplate
The valve nameplate (80) is afxed to the
ange (see Fig.2-1).
80
Fig.2-1: Nameplate on the ange
Fig.2-2 and the inscription table list all
possible characteristics and options that may
appear on a valve nameplate. Only the
inscriptions relevant to the ordered
Type3244 Valve actually appear on the
nameplate.
23
22
21
19
1716
18
151413121110
4
7
6
5
8/
2
1
Fig.2-2: Inscriptions on the valve nameplate
Item Inscription meaning
1 Data Matrix code
2 Type designation
4 Material
5 Month and year of manufacture
6 Nominal size:
DIN: DN · ANSI: NPS · JIS: DN
7 Pressure rating:
DIN: PN · ANSI: CL · JIS: K
8 Order number/item
10 Flow coefcient:
DIN: KVS · ANSI: CV
11 Characteristic:
%: equal percentage · LIN: linear
mod-lin: modied linear
NO/NC: on/off service
12 Seat-plug seal:
ME: metal · HA: carbide metal ·
ST: metal base material with Stellite
®
facing
KE: ceramic · PT: PTFE soft seal · PK: PEEK
soft seal
13 Seat code (trim material): on request
14 Pressure balancing:
DIN: D · ANSI/JIS: B
Version:
M: mixing valve · V: diverting valve
15 Noise reduction:
1:ow divider(ST)1 · 2:ST2 ·
3:ST3 · 1/PSA:ST1 standard and inte-
grated in seat for PSA valve ·
AC-1/AC-2/AC-3/AC-5: anti-cavitation
trim, versions1 to5
LK: perforated plug · LK1/LK2/LK3:perfo-
rated plug with ow divider ST1 to ST3 ·
MHC1:multi-hole cage ·
CC1:Combi Cage · ZT1:Zero Travel ·
LDB:LowdB
16 PSA version:
PSA
Note
