Auro D12/D15Owner's Manual 9
Wiring Guide
Signal Signal Tip (signal)
Sleeve (ground)
Ground Ground
Unbalanced 1/4” Connector

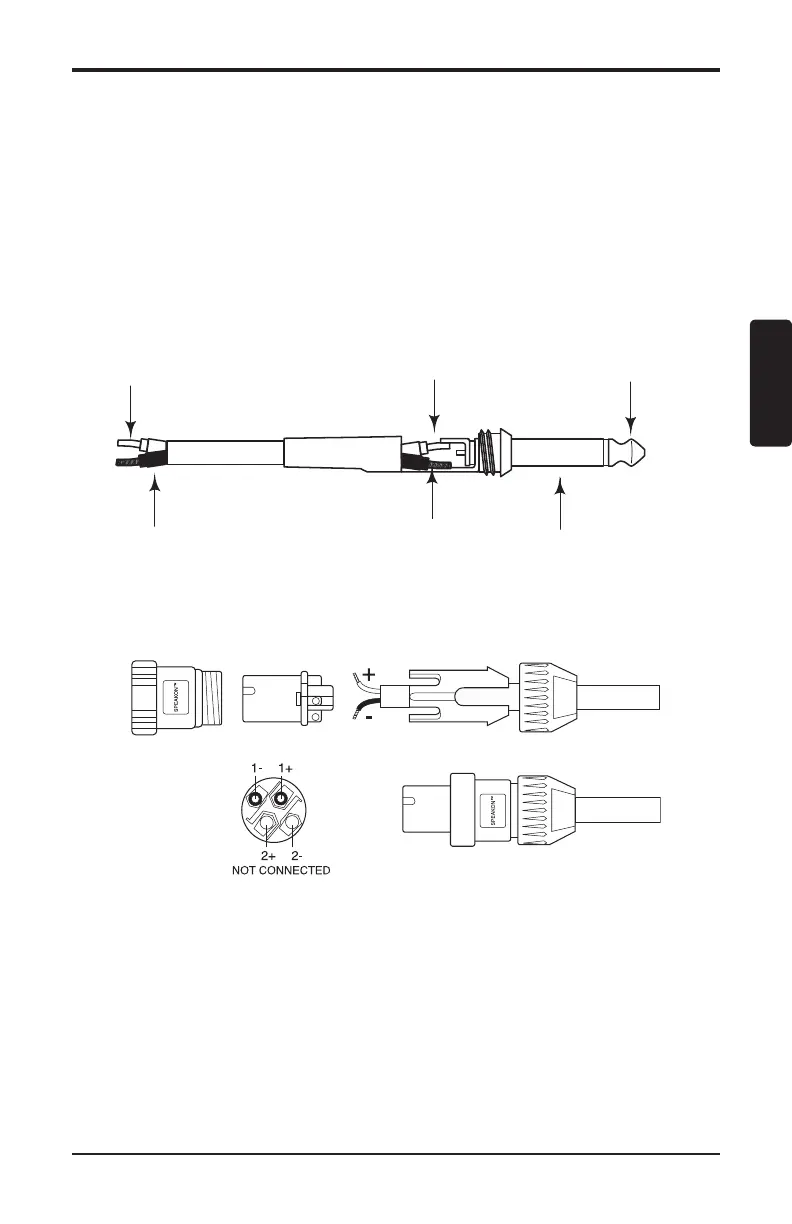

Speakon® Wiring Guide
The Auro loudspeaker provides both Speakon® and 1/4” phone connectors for easy
interface with industry standard cables. You can use a variety of standard speaker
cables that are available “off the shelf” at you local pro-audio or musical instrument
retailer. Be sure the cables use stranded speaker wire; gauge 12–14 is recommended.
If you are making you own cables, use the diagrams below to ensure a proper hook
up.
