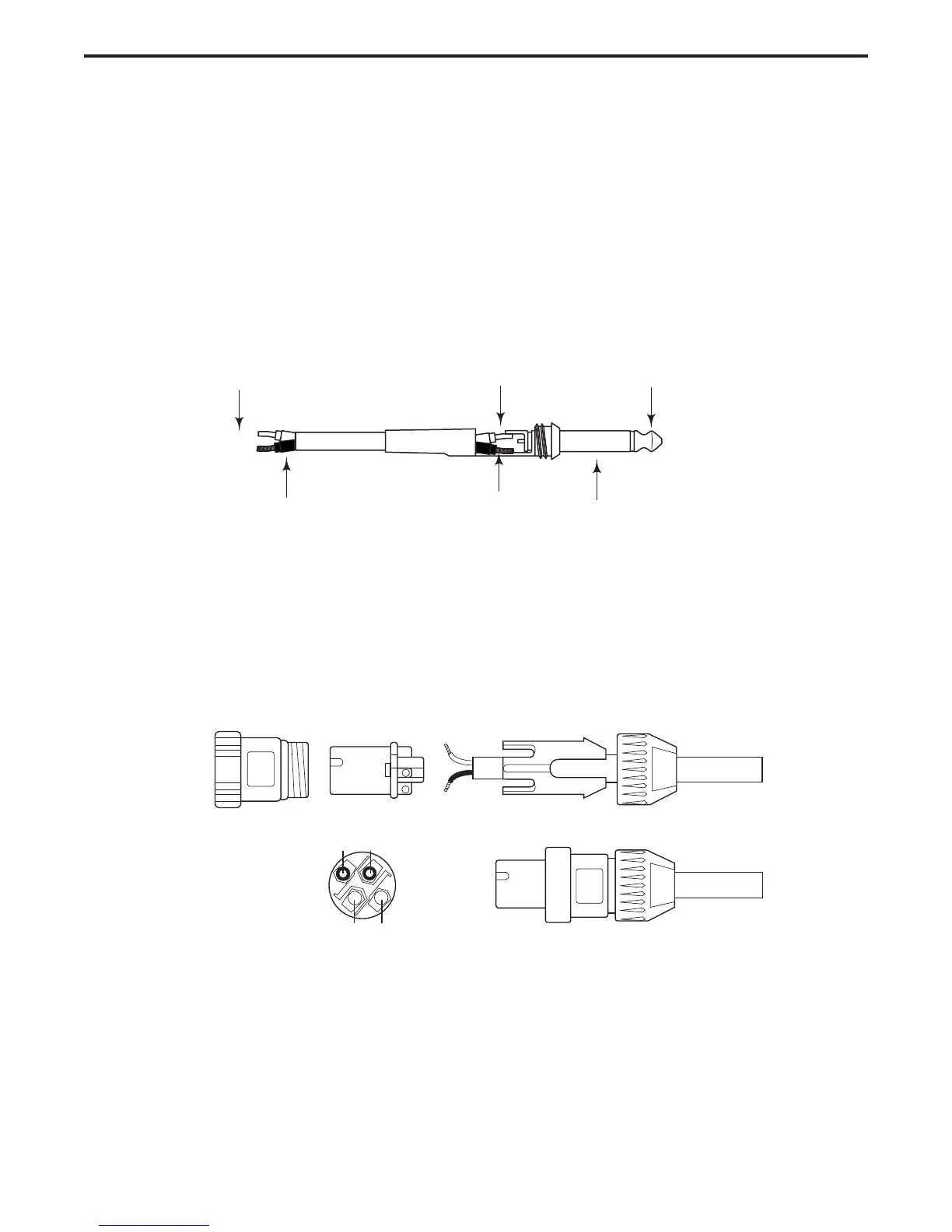

dB500 Wiring Guide
10
Tip (signal)Signal
Signal
Sleeve (ground)
Ground
Ground
SPEAKON™
SPEAKON™
+
-
1- 1+
2+
2-
NOT CONNECTED
Unbalanced 1/4” Connector
Speakon Wiring Guide
CONNECTING THE dB500
The dB500 provides both Speakon and 1/4” phone connectors for easy interface with industry standard cables.
You can use a variety of standard speaker cables that are available “off the shelve” at you local pro-audio or
musical instrument retailer. Be sure that cables use standard strained speaker wire, and a gauge 12-14 is rec-
ommended. If you are making you own cables, use the diagrams following below to ensure a proper hook up.
