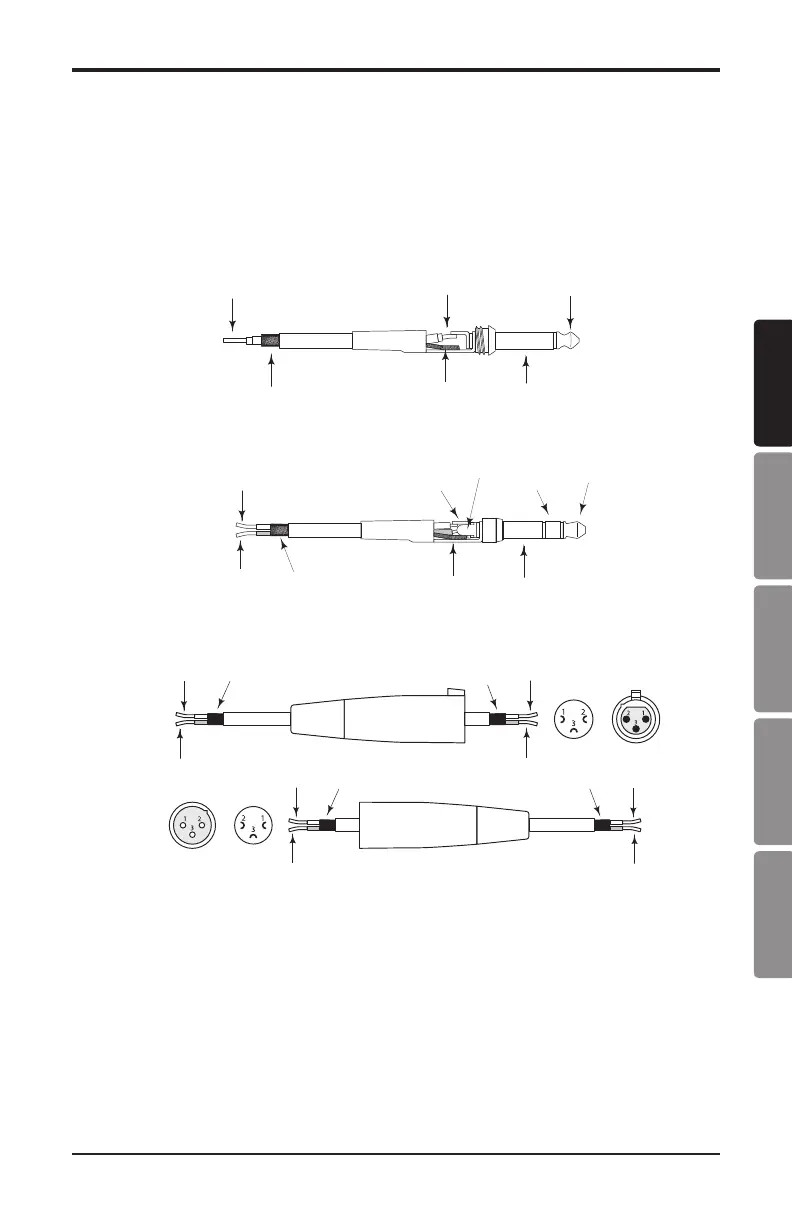

XP150 Wiring Guide
There are several ways to interface the XP150 to support a variety of applications. The
XP150 features balanced inputs, so connecting balanced and unbalanced signals is
possible.
Unbalanced ¼” Connector
Stereo TRS 3.5mm Connector
XLR Balanced Wiring Guide
Signal
Ground Ground Sleeve (ground)
Signal
Tip (signal)
Sleeve (ground)Ground
Ground
Tip (left signal)
Ring (right signal)
Right Signal (ring)
Right Signal (ring)
Left Signal (tip)Left Signal (tip)
Female XLR
+Hot
–Cold
Common (ground) Common (1)
(ground)
+Hot (2)
–Cold (3)
End ViewSolder Points
Male XLR
+Hot
–Cold
Common (ground)Common (1)
(ground)
+Hot (2)
–Cold (3)
End View Solder Points
Owner's Manual
15
Expedition XP150
