MDR10 System Set-Ups

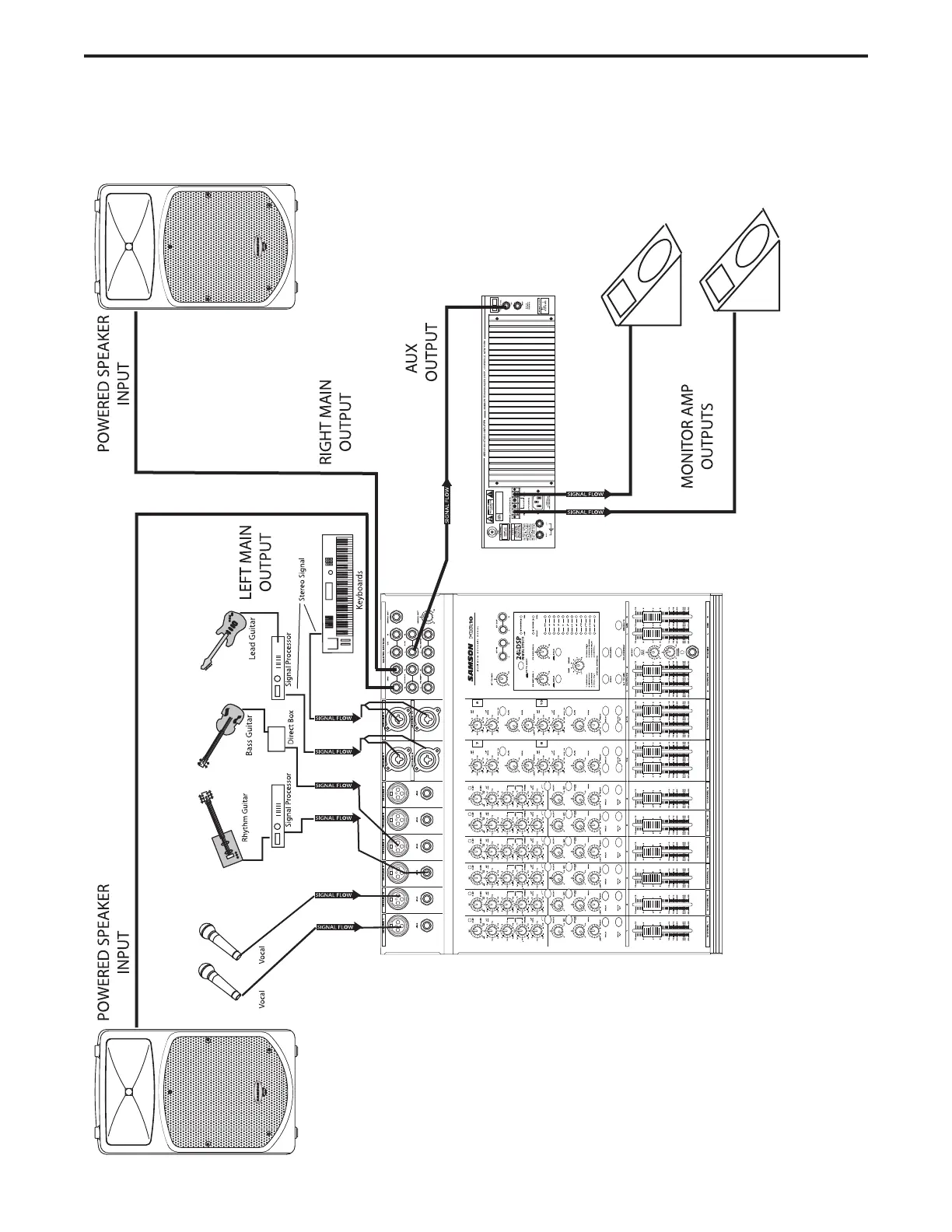

This system shows the
MDR10 connected to a
pair of powered speakers
like the SAMSON dB500a.
The AUX 1 is connected to
an external power amp,
which is driving 2 monitor
speakers. For inputs, two
microphones are connect-
ed to channels 1 and 2’s
low-impedance inputs,
and the output of the Bass
Direct Box is also connect-
ed to the low-impedance
input on channel 4. The
Keyboards, as well as the
Lead and Rhythm Guitar
signal processor's outputs,
are connected to the
MDR10’s line inputs.
MDR10’s AUX OUT
connected to an
external monitor
amp.
MDR10 LIVE SOUND SET-UP
