MediaOne Series Rear Control
Panel - continued
The Ins and The Outs
The MediaOne Series features a
stereo pair of input connectors
providing easy installation with
a variety of audio devices like
recording consoles, hard disk
recorders, CD players and computer
sound cards, to name a few. The
following section details the
MediaOne Series’ input connectors.
In addition, there is a detailed cable-
wiring diagram on page 12.

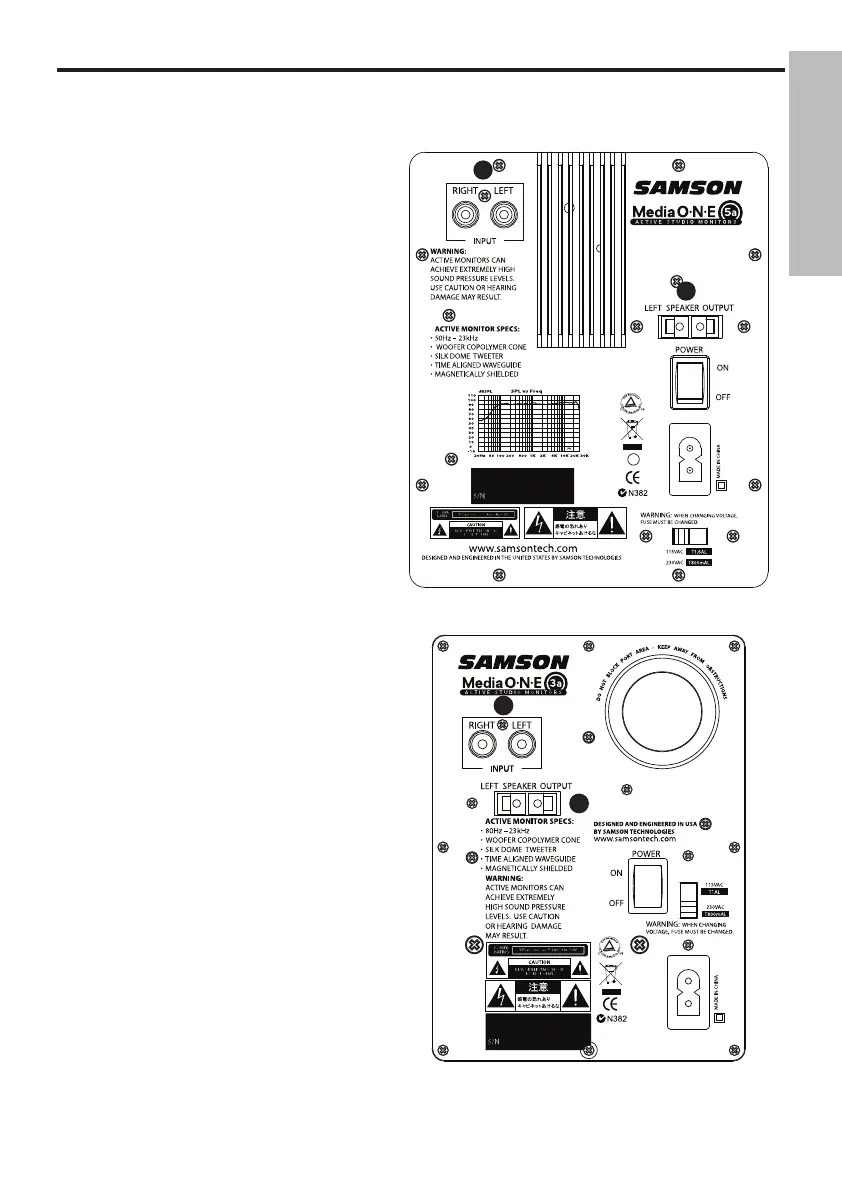

4. RCA Input
– The RCA input
accepts signals from unbalanced
–10dBV devices.
5. LEFT SPEAKER OUTPUT
– Push
Terminals for connecting the Left-
side Extension Speaker.
