Samson MIXPAD User Manual

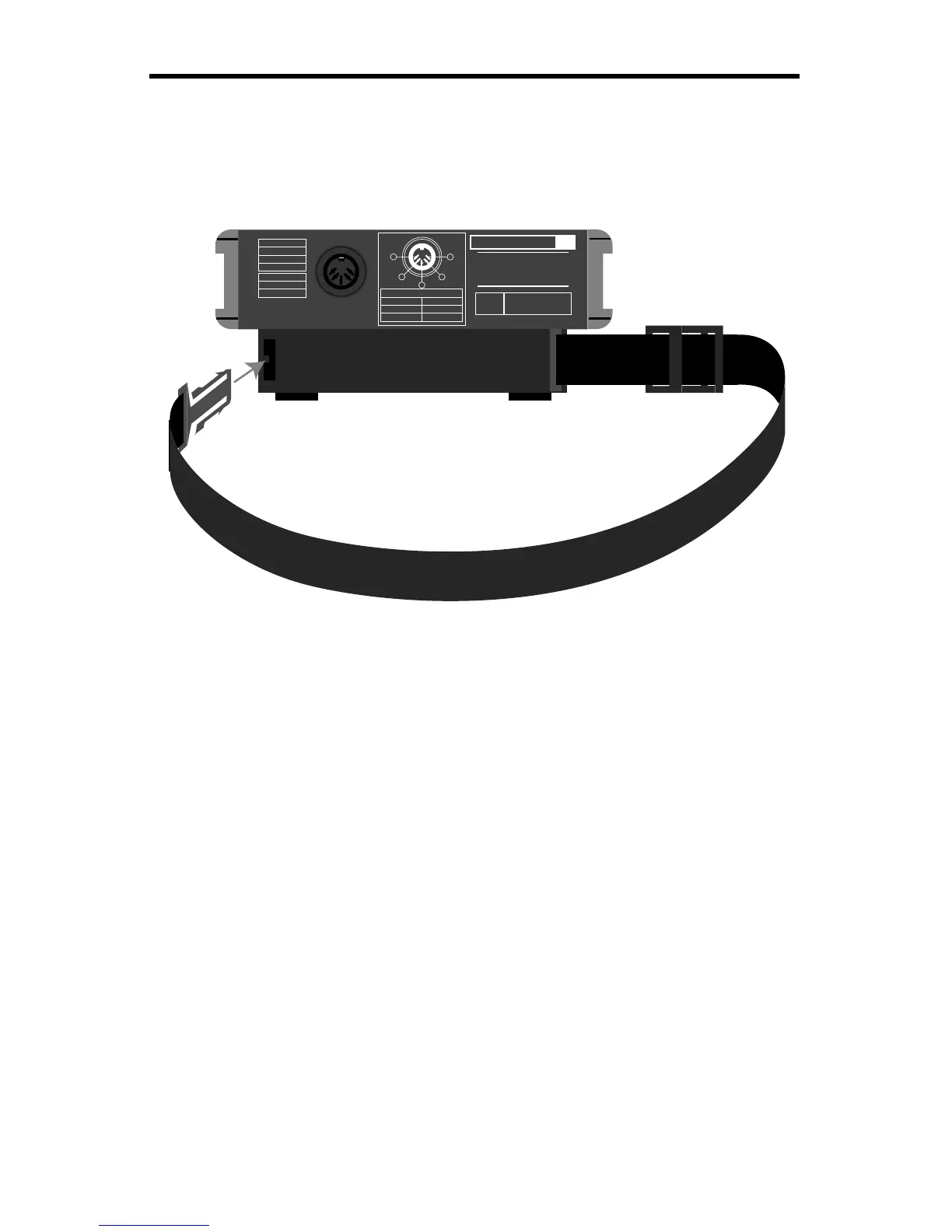

The MIXPAD 4 is supplied with a handy carrying strap for easy
portability. As shown in the illustration above, attach the strap to the
MIXPAD 4 by placing the buckles in the connector slots and pressing
them in firmly until they snap in place. Remove the carrying strap by
gently squeezing together the outside buckle clips in order to extract
them from the connector slots.
Connecting the MIXPAD 4
Carrying Strap
11
MIXPADPAD 4
S/N
AVIS;
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
1
2
3
4
5
D.C. INPUT
PIN 1 +15V
PIN 2 -15V
PIN 3 GND
PIN 4 +32V
PIN 5 GND
XLR/LINE INPUT
2/TIP +
3/RING -
1/SLEEVE GND
AUX SEND/RETURN
TIP +
SLEEVE GND.
DC INPUT
M
I
X
P
A
D
4

Samson MIXPAD Specifications

General

Brand	Samson
Model	MIXPAD
Category	Mixer
Language	English
