34
Appendix A: Operating the
MIXPAD 12/9 off Battery Power

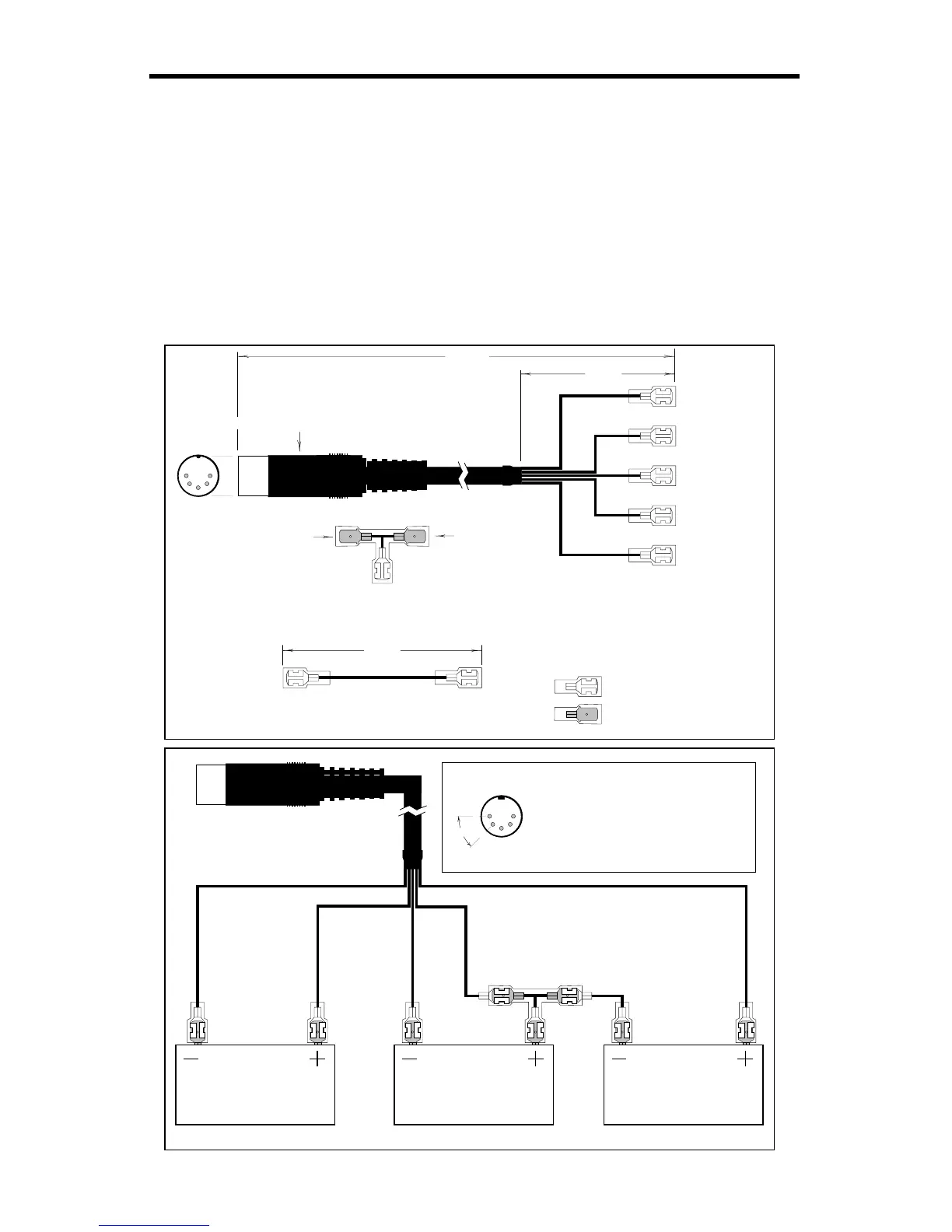

The MIXPAD 12 and MIXPAD 9 can optionally be battery powered.
This requires the use of two 12 Volt rechargeable Lead-Acid (Gelcell)
batteries, connected to the rear panel AC connector, wired as shown in
the illustration below. These batteries will provide the necessary bi-polar
voltages needed to operate and maintain excellent audio quality.
Jumper
(2 pieces)
1 m
1 piece
Phantom Power
+12V
-12V
Ground
Ground
20cm
M9/M12 Connector
Standard 5 Pin DIN (MIDI) Connector
All Quick Disconnects are Female except
where noted. All Male and Female Quick
Disconnects are fully insulated and .187"
"T" Connector
(2 pieces)
Male
Male
Phantom Power+12V-12V GroundGround
All Batteries .187" Male Quick Disconnect
"T" Connector
Jumper
Female .187" Quick Disconnect
Male .187" Quick Disconnect
20cm
Rear View of Connector for soldering
2
31
45
Pin 1 = +15V
Pin 2 = Ground
Pin 3 = Ground
Pin 4 = -15V
Pin 5 = Phantom Power
45º
To Next Page
