Samson MPL 1502 User Manual

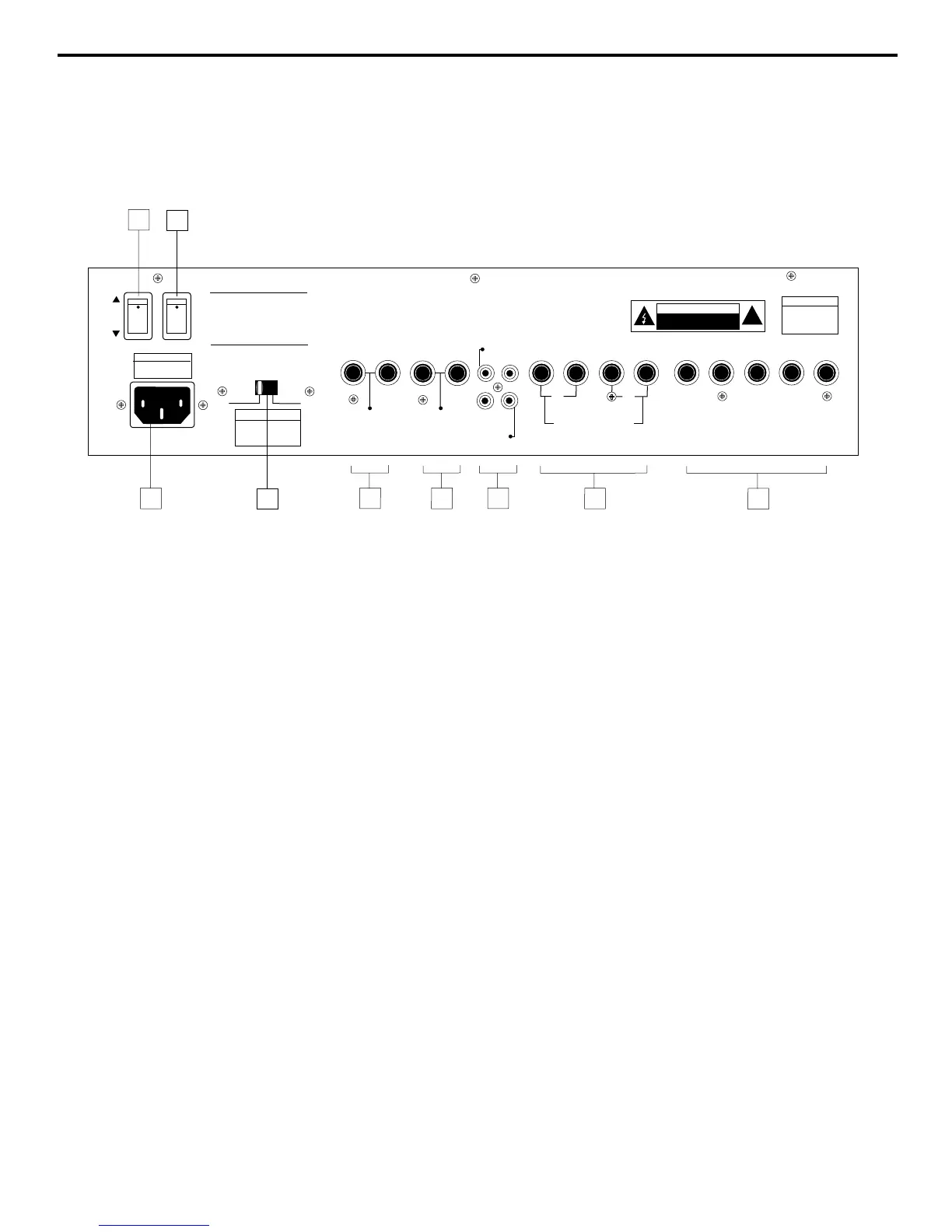

Guided Tour - Rear Panel
1: Power on-off switch - As you may have guessed, this is what you use to
turn the MPL 1502 on and off. To avoid potential damage to your speakers, turn
the mixer on before you turn on any connected power amps—and turn it off after
the power amps are turned off.
2: Phantom switch - When this switch is turned on, the MPL 1502 delivers 48
volts of phantom power to pins 2 and 3 of all XLR microphone connectors (mono
channels 1 - 5).
WARNING: Only turn this on or off with the MPL 1502 powered
down. Use phantom power only when one or more condenser microphones are
connected to the MPL 1502 (these microphones will correctly load the input in
order to “drain off” the phantom power voltage). Before turning phantom power
on, be sure to disconnect all non-microphone signal sources (such as direct
injection boxes) from the XLR mic jacks. Phantom power will generally have no
adverse affect on connected dynamic microphones; however,
we strongly
recommend that you refer to the owners manual of your microphone to
determine whether or not it requires 48 volts phantom power. We cannot
assume responsibility if you damage a mic by incorrectly applying
MPL 1502 phantom power.
If you’re not sure that one or more connected mics
require 48 volts phantom power, leave this switch OFF.
3: AC input - Connect the supplied standard 3-pin “EEC” plug here.
4: Voltage selector - Set this to the left (“115 V”) position for operation in the
United States and Canada. Set this to the right (“230 V”) position for operation
in other countries. This will normally be preset correctly at the factory and will
require no adjustment unless you use the MPL 1502 in a country other than the
one in which you purchased the unit.
8
ON
OFF
POWER
RIGHT
LEFT/MONO
CHANNEL INSERT - TIP RETURN - RING SEND
MAIN OUT
(BALANCED 600 Ω +4dB)
1
2
AUX SEND
(UNBALANCED 2KΩ +4dB)
SAMSON TECHNOLOGIES CORP., HICKSVILLE, NEW YORK
SERIAL NUMBER
ASSEMBLED IN R.O.K.
AVIS:
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
MPL 1502
15 CHANNEL STEREO MIXER
TIP RING SLEEVE
TIP +
RING -
SLEEVE GND
PHANTOM
48V
RIGHT LEFT
TAPE IN
(10KΩ -10dB)
12345
RIGHT
LEFT/MONO
2
1
AUX RETURN
(UNBALANCED 2KΩ +4dB)
115V
230V
VOLTAGE SELECTOR
FUSE RATING
0.3A/250V(115V)
0.15A/250V(230V)
~115/230V,50/60Hz 23W
SAMSON
TAPE OUT
(600Ω +4dΒ)
L
R
1
2
3
4
5
6
7
8
9

Samson MPL 1502 Specifications

Audio Specifications

frequency response	17 Hz to 30 kHz ± 1.5 dB at +4 dB
equivalent input noise channel 1-5 mic input	-128 dB (A filter, 150 Ω shorted)
equivalent input noise channel 1-15 line input	-131 dB (A filter, input shorted)
total harmonic distortion + noise	Less than 0.03 %
input level channel 1-5 mic input	-50 dBV to +4 dB (10 kΩ, balanced XLR)
input level channel 1-15 line input	-40 dBV to +14 dB (10 kΩ, balanced stereo phone jack)
input level aux return 1-2	+4 dB (47 kΩ, unbalanced phone jack)
maximum input level channel 1-5 mic input	+17 dB
maximum input level channel 1-15 line input	+27 dB
trim gain range	0 dB to +54 dB
channel fader range	+15 dB to -80 dB
aux send gain range	+10 dB to -75 dB
crosstalk ch-to-ch (1 kHz)	-80 dB
crosstalk stereo ch L/R (1 kHz)	-65 dB
standard output level main out	+4 dBV (balanced, 600 Ω loaded)
standard output level aux out	+4 dBV (unbalanced, 2.2 kΩ loaded)
standard output level headphones	150 mW (30 Ω loaded)
maximum output main out	+22 dBV (balanced, 600 Ω loaded)
maximum output aux out	+22 dBV (unbalanced, 2.2 kΩ loaded)
maximum output tape out	+22 dBV (unbalanced, 600 Ω loaded)
tone control high	10 kHz ± 15 dB
tone control mid	800 Hz ± 12 dB
tone control low	80 Hz ± 15 dB

Weight and Dimensions

dimensions	13.8 in (w) x 10.4 in (d) x 3.2 in (h)
dimensions metric	350 mm (w) x 264 mm (d) x 82 mm (h)
weight	7.7 lbs • 3.5 kg
