Connecting to the Rubicon R10s Subwoofer
Resolv A Series with Mono Sub
Adding a subwoofer and extended low frequency response to your Resolv A Series's system is easy using the
Resolv A Series LINE LEVEL inputs. Below is a typical system set-up using the Samson Rubicon R10s with a
mixer and a pair of Resolv A Series satellite speakers. The Resolv A Series inputs utilize industry standard RCA
and XLR connectors. For a detailed wiring diagram, see the section “Resolv A Series Connections” on page 12.

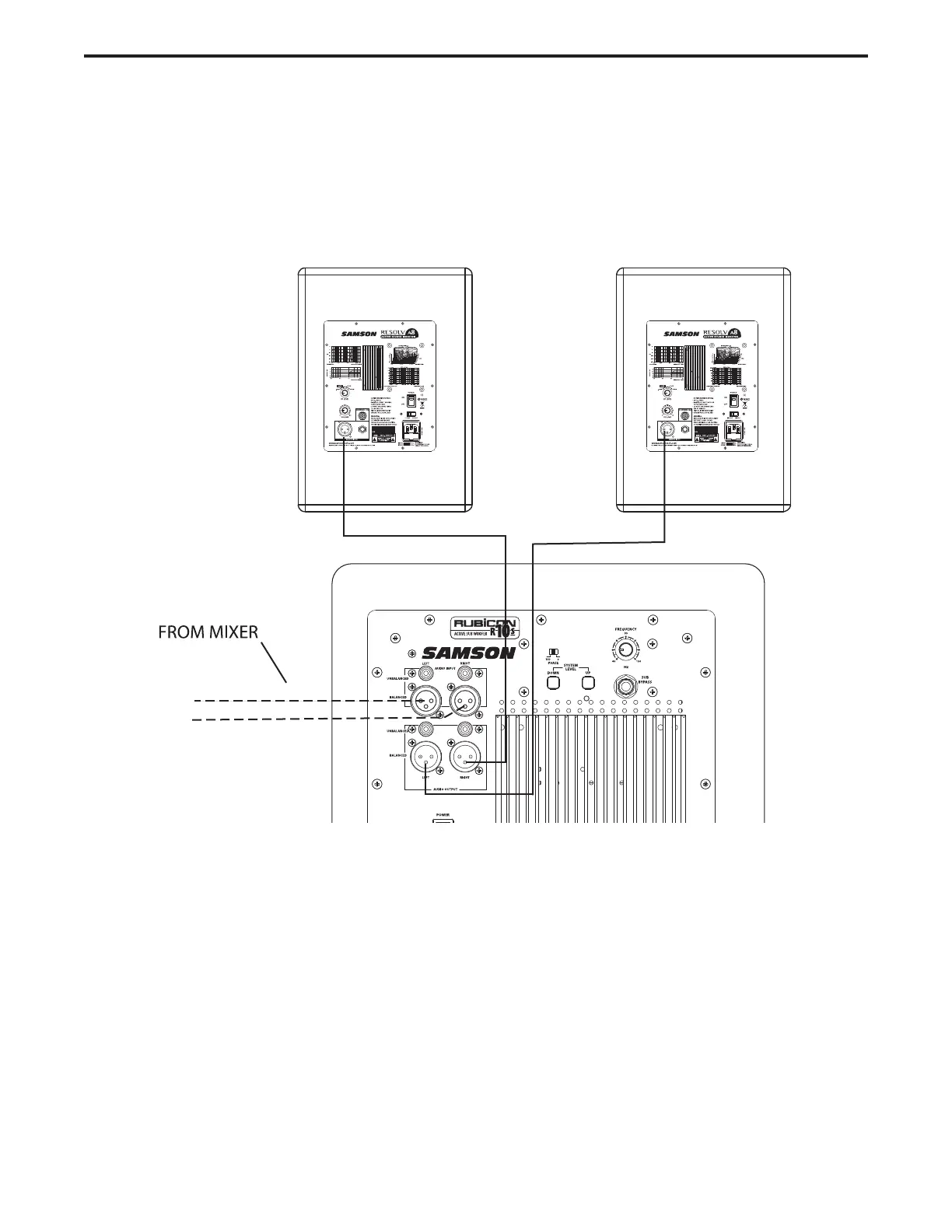

Follow the steps in the diagram below to set up your system.
• Lower your mixer’s master outputs to all the way off.
• Connect the mixer’s left output to the Rubicon R10s' LEFT LINE INPUT and the mixer’s right output to
the Rubicon R10s' RIGHT LINE INPUT. Now connect the Rubicon R10s’ LEFT LINE OUTPUT to the input
of the left Resolv A Series , and the Rubicon R10s' RIGHT LINE OUTPUT to the input of the right Resolv
A Series .
•
Run an audio signal (like some music from a CD) through your mixer and raise the level to a comfort-
able listening level.
• Now adjust the FREQUENCY control to the desired frequency. You can also use your ears by adjusting
the FREQUENCY control to the frequency that sounds good to you. A good place to start is about 70
Hz.
