Samson Resolv A5 - Resolv A Series Connections; Resolv A Series Wiring Guide

Resolv A Series Connections
Unbalanced 1/4” to RCA Cable
Un-Balanced XLR to RCA Cable

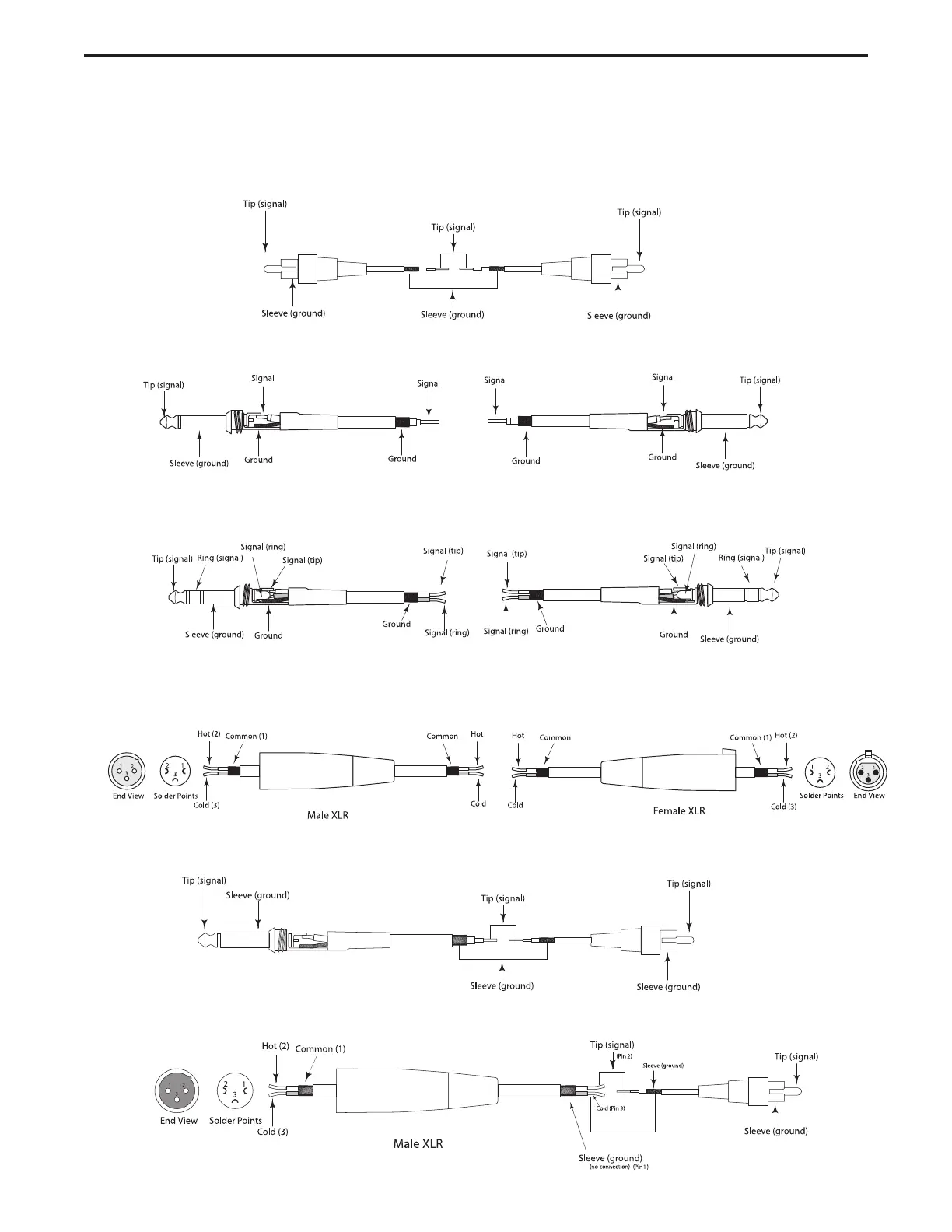

Resolv A Series Wiring Guide
There are several ways to interface the Resolv A Series, depending on your exact monitoring set-up. Follow
the cable diagrams below for connecting your monitor system.
Balanced XLR to XLR Cable
Balanced 1/4” to 1/4” Cable
Un-Balanced 1/4” to 1/4” Cable
RCA to RCA Cable
