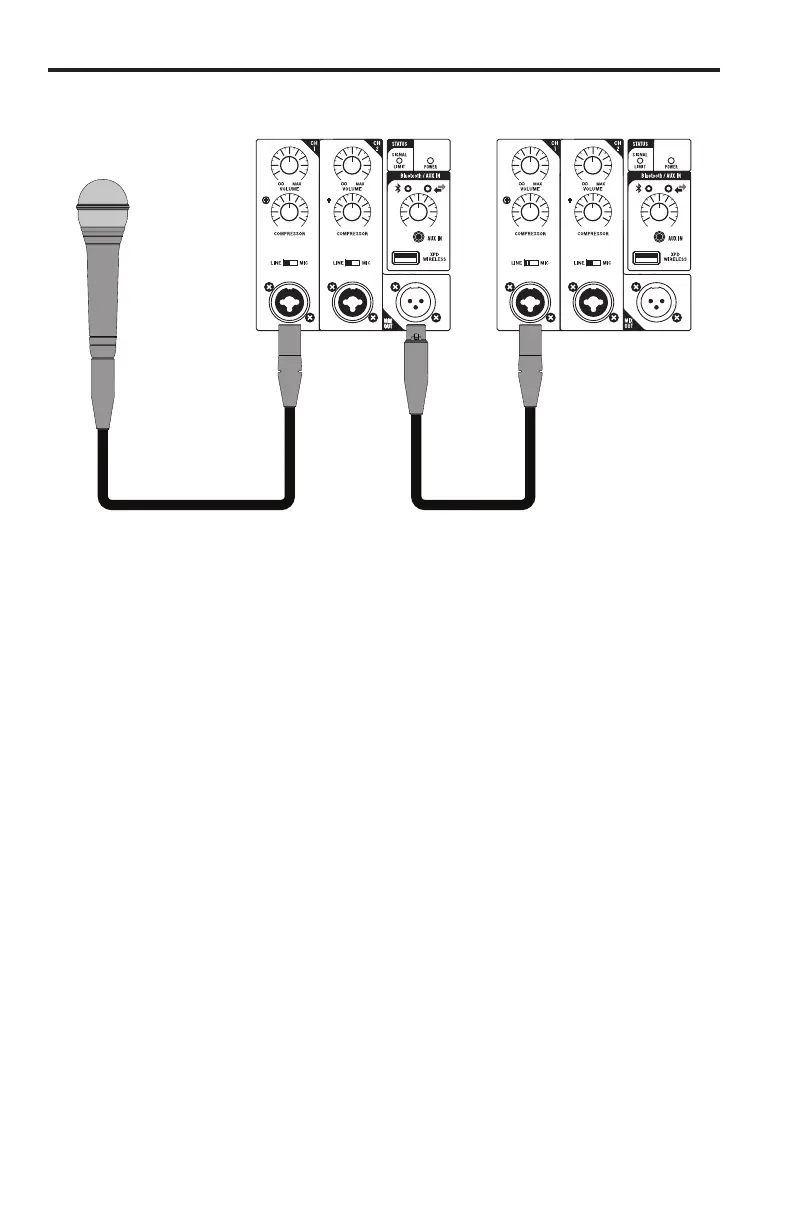

Follow these steps to connect a microphone level signal to your RS Loudspeaker and daisy-
chain the signal to a second RS Loudspeaker:
1. Set the both RS Loudspeaker’s POWER switch to the OFF position.
2. Turn the VOLUME control down, fully counterclockwise.
3. Connect the power cables for each cabinet to an AC socket.
4. Connect a standard XLR cable from the main RS Loudspeaker’s MIX OUT to the second
RS Loudspeaker’s INPUT 1 XLR input.
5. On the second RS Loudspeaker, set the SENSITIVITY switch to the LINE p
osition.
6. Using a standard XLR cable, plug a dynamic microphone into the RS Loudspeaker’s XLR
INPUT.
7. Set the SENSITIVITY switch to the MIC position.
8. Switch the Power switch to the ON position.
9. While speaking or singing into the microphone, slowly raise the VOLUME control until you
have reached the desired level.
10. For larger sound reinforcement you can run several monitors using the Link Output to
daisy-chain one RS Loudspeaker to another. Set the input Sensitivity on the additional
cabinet
s to the LINE level position.
Connecting a Wired Microphone
7RS112A / RS115A
