Samson SM10 User Manual

SM10
8
Input and Output Connections
21
3
4
5
6
7
8
9
11
12
13
10
14 15
1617
18
19
20
21
2223
2425
21
3
4
5
6
7
8
9
11
12
13
10
14 15
1617
18
19
20
21
2223
2425

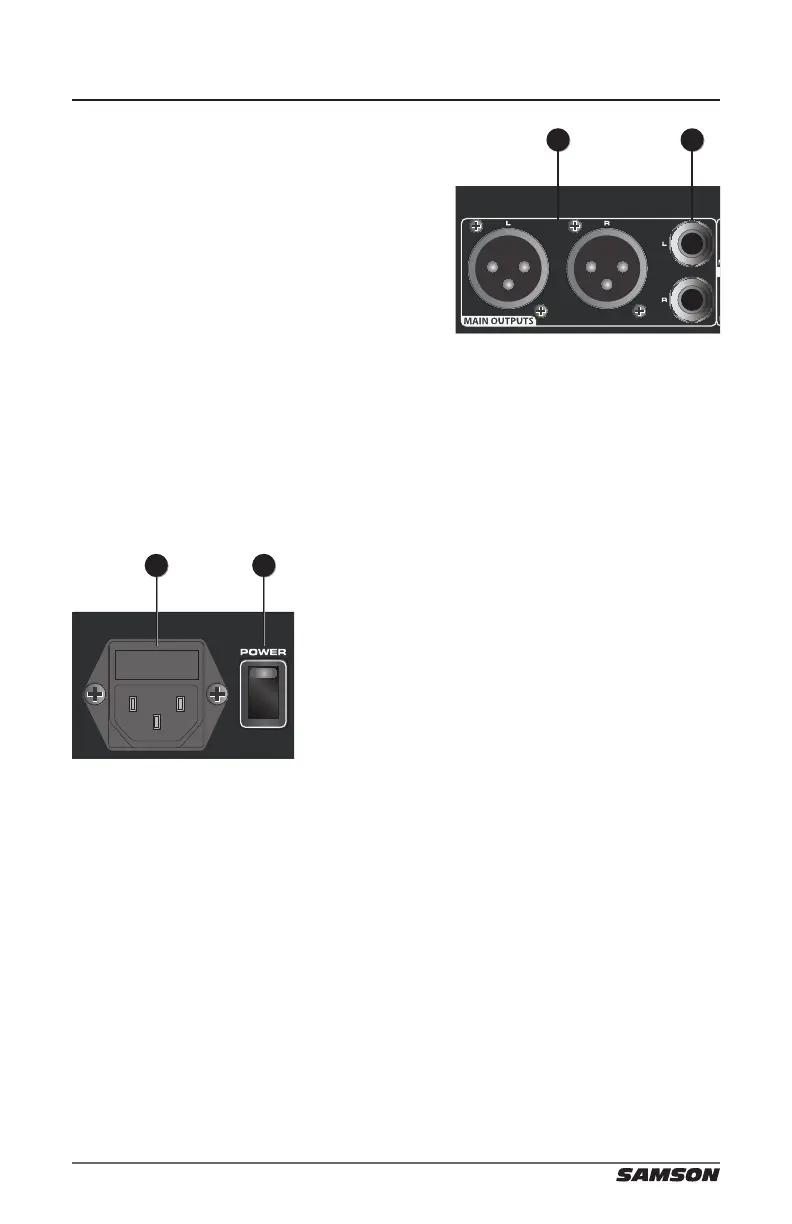

22. MAIN OUTPUTS 1/4-inch Jacks - In live
performance applications, these outputs
can be used to connect the SM10 to a
power amp and speakers. In recording
applications, these outputs are used
to connect to a stereo device such as
computer sound card, MP3, or hard disk
recorder. The signals at the Main Out-
puts jacks follow the Main Output level
controls.
23. MAIN OUTPUTS XLR Jacks - In live per-
formance applications, these male XLR outputs can be used to connect
the SM10 to a power amp and speakers. In recording applications, these
outputs can be used to connect to a stereo device such as computer
sound card, MP3, or hard disk recorder. The signal at the Main Outputs
jacks follow the Main Output level control.
24. Power Switch – Use this switch to turn the
SM10 on and o. To avoid potential damage
to your speakers, turn the SM10 on before you
turn on any connected power amps—and turn
it o after the power amps are turned o. The
switch should be in the o position when con-
necting the SM10 to the mains.
25. AC Inlet – Connect the supplied IEC cable
here.

Samson SM10 Specifications

General

Frequency range	- Hz
Channels quantity	2 channels
Digital sound processing	- bit
DJ mixer	No
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Video capability	-
Booth out (1/4\")	8
Phantom power	48 V
Nominal input level	4 dBu

Weight and Dimensions

Depth	279.4 mm
Width	577.85 mm
Height	114.3 mm
Weight	3650 g
