Samson SM10 User Manual

SM10
Owner's Manual
3
Features

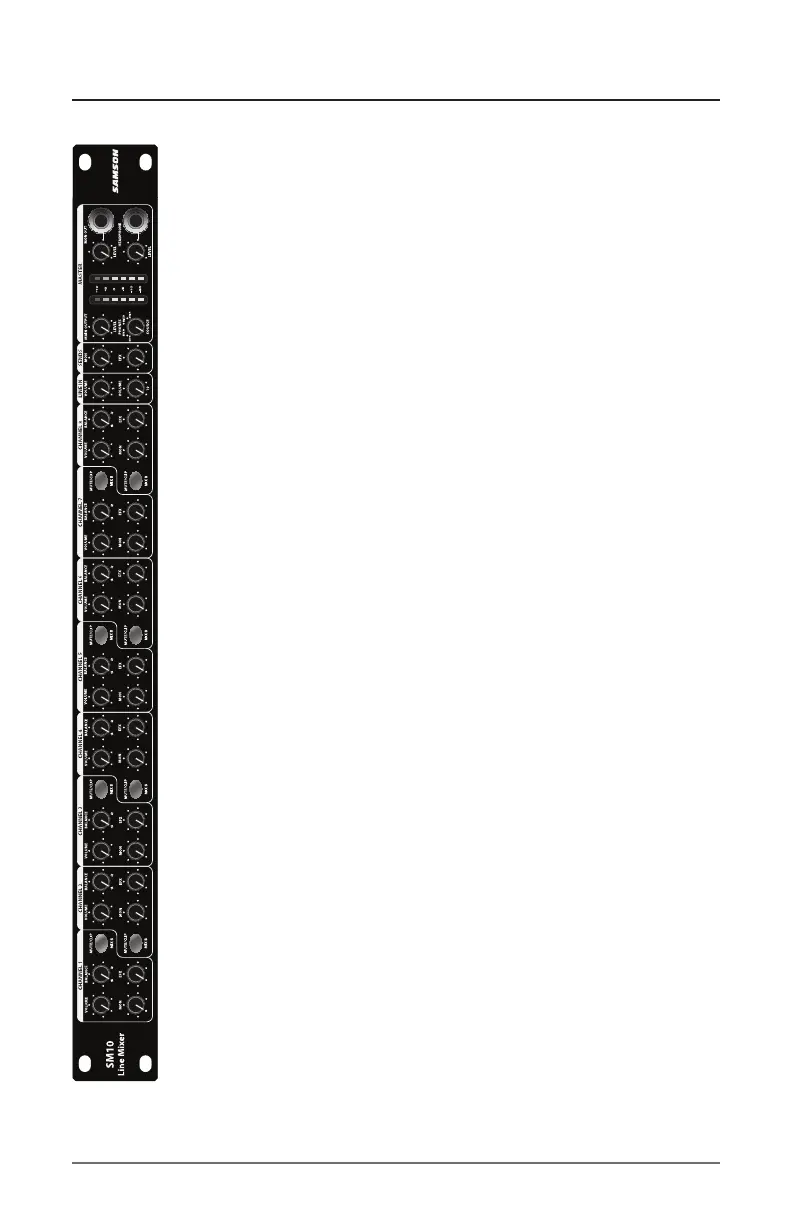

The Samson SM10 rack mount mixer is a comprehensive all-in-one
solution for xed installation, live sound, on-stage monitoring,
keyboard submixer and recording applications. Here are some of
its main features:
• 10 input channels – Two Mic/Line plus ten stereo line
• Low noise, discrete microphone pre-ampliers with 48-Volt
phantom power.
• Versatile signal routing via Main Mix, Mix B, Mon, EFX bus
outputs, as well as mono output.
• Balance controls for each channel that allow you to blend the
relative levels of stereo inputs.
• Two auxiliary sends can be used to route signals to external
eects, or to create a separate mix for on-stage monitors.
• Front-panel headphone and mono output jack with dedicated
level controls
• Flexible headphone and six-segment LED meter source con-
trol allows you to monitor the MON, EFX, MIX B and MAIN MIX
• Line Input Level switch for +4 dBu or -10 dBV line level input
signals.
• Electronically balanced main stereo XLR and 1/4” line outputs.
• Center detents for all input controls, for use in low-light situa-
tions such as live performance.
• Single 19” rack-mount metal chassis with internal power sup-
ply, easily integrated into any existing system.
• Quality built and rugged construction ensure reliable perfor-
mance from venue to venue and session to session.

Samson SM10 Specifications

General

Frequency range	- Hz
Channels quantity	2 channels
Digital sound processing	- bit
DJ mixer	No
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Video capability	-
Booth out (1/4\")	8
Phantom power	48 V
Nominal input level	4 dBu

Weight and Dimensions

Depth	279.4 mm
Width	577.85 mm
Height	114.3 mm
Weight	3650 g
