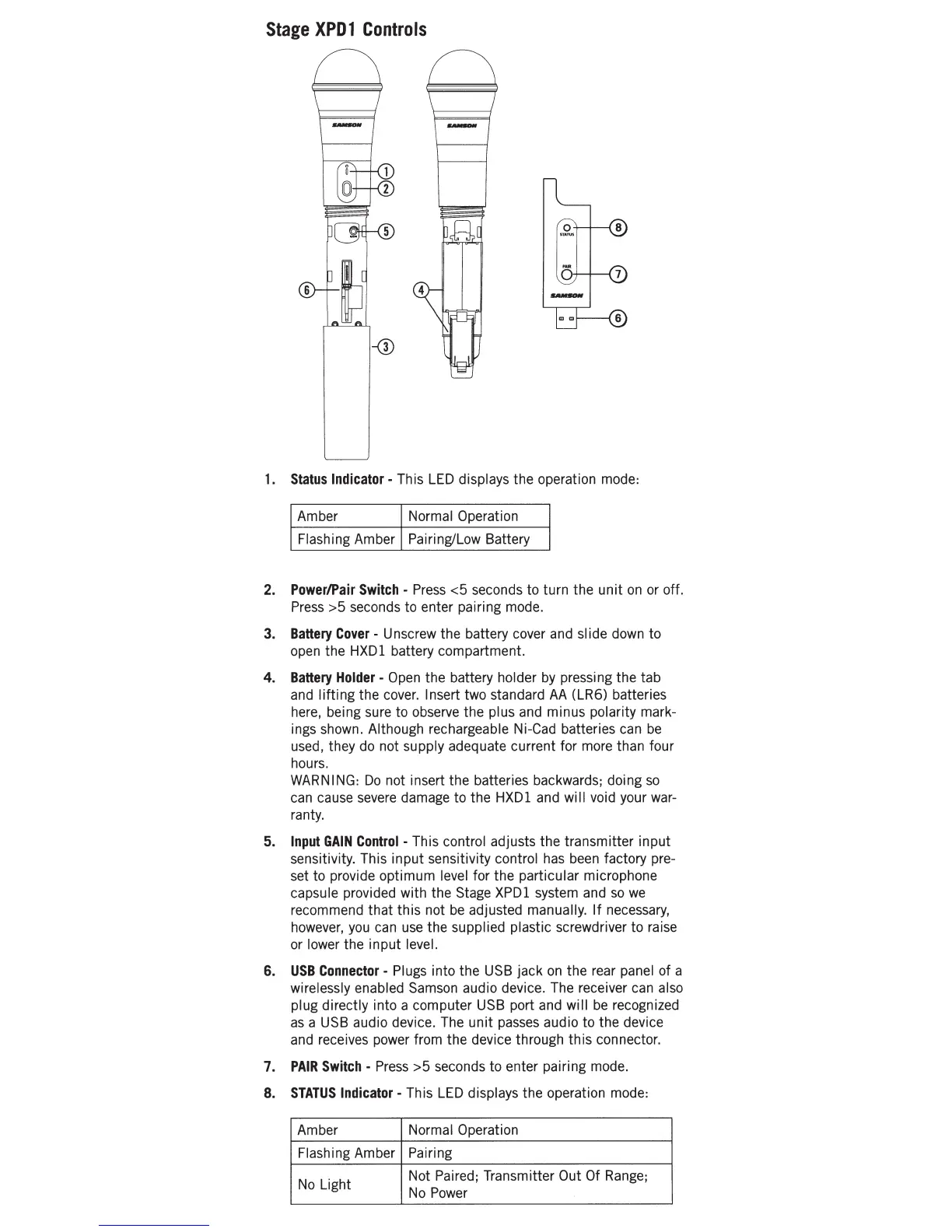

Stage
XPD
1
Controls
1.
Status
Indicator-
This
LED
displays the operation mode:
Amber Normal Operation
Flashing Amber Pairing/Low Battery
2.
Power/Pair
Switch-
Press
<5
seconds
to
turn the
unit
on or off.
Press
>5
seconds
to
enter pairing mode.
3.
Battery
Cover-
Unscrew the battery cover
and
slide down
to
open the
HXDl
battery compartment.
4.
Battery
Holder-
Open
the battery holder by pressing the tab
and lifting the cover. Insert two standard
AA
(LR6) batteries
here, being sure
to
observe the plus and minus polarity mark-
ings shown. Although rechargeable Ni-Cad batteries can
be
used, they do not supply adequate current for more than four
hours.
WARNING:
Do
not insert the batteries backwards; doing
so
can cause severe damage to the
HXDl
and will void your war-
ranty.
5.
Input
GAIN
Control
-This
control adjusts the transmitter input
sensitivity. This input sensitivity control
has
been factory pre-
set
to
provide optimum level for the particular microphone
capsule provided with the Stage
XPDl
system and
so
we
recommend that
this
not
be
adjusted manually.
If
necessary,
however,
you
can use the sup
pi
ied plastic screwdriver
to
raise
or lower the input level.
6.
USB
Connector-
Plugs into the
USB
jack
on
the rear panel of a
wirelessly enabled Samson audio device. The receiver can also
plug directly into a computer USB port
and
will
be
recognized
as
a
USB
audio device. The
unit
passes audio to the device
and receives power from the device through this connector.
7.
PAIR
Switch-
Press
>5
seconds to enter pairing mode.
8.
STATUS
Indicator-
This
LED
displays the operation mode:
Amber Normal Operation
Flashing Amber
Pairing
No
Light
Not Paired; Transmitter Out
Of
Range;
No
Power
