Samson STUDIOGT User Manual

Studio GT Owner’s Manual3

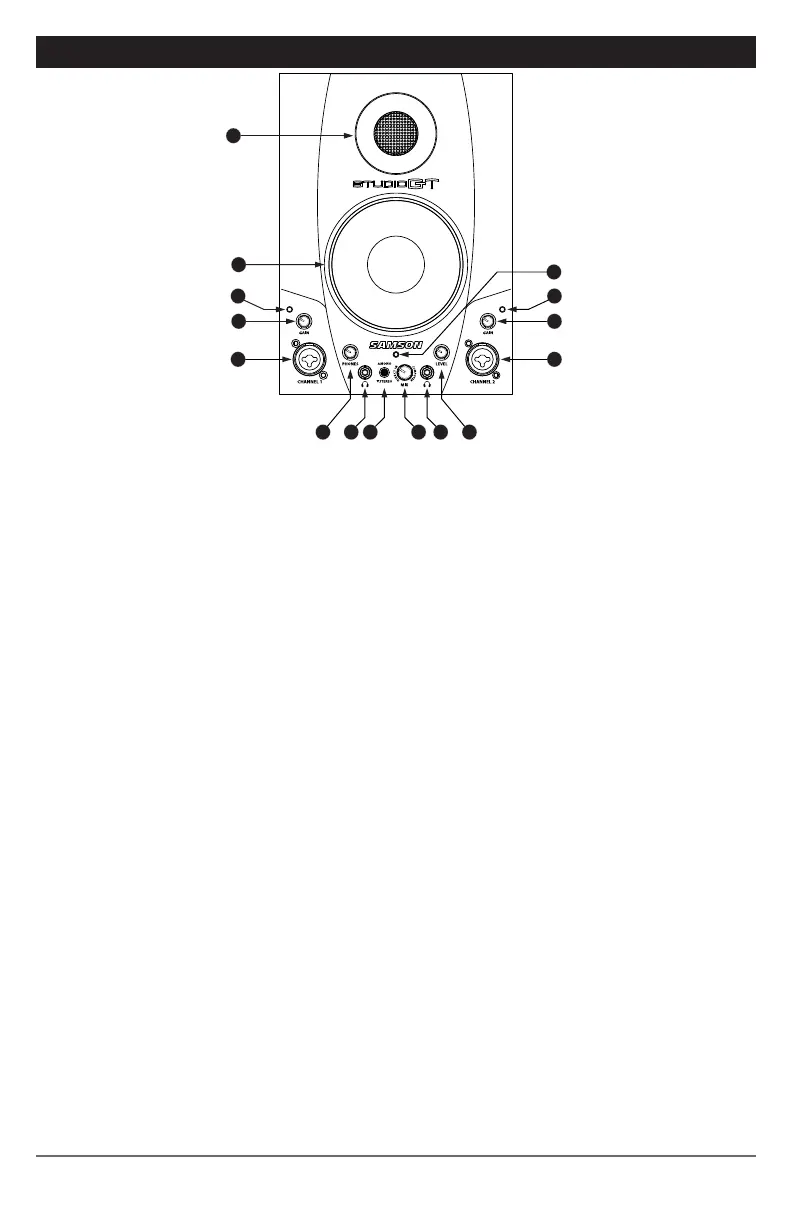

STUDIO GT FRONT PANEL LAYOUT
6
7 128 119 10
1
2
5
4
6
5
4
3
1. Silk Dome Tweeter - Smooth high
frequency response produced from a
1-inch silk dome tweeter.
2. Low Frequency Driver - Heavy duty
4.25” extended range low frequency
transducer.
3. POWER LED (active) - Green
LED illuminates indicating the unit is
powered on, ready for operation.
4. Clip LED - The Clip LED will illuminate
red when the input signal reaches
clipping point. If the red Clip LED
lights often or stays lit for any period
of time, lower the input gain level on
that channel.
5. Input Gain Level Knob (GAIN)
- Controls the input level of the
associated Mic/Inst input (6).
6. Microphone/Instrument Inputs
(Channel 1 & Channel 2) - Each XLR
/ ¼” combo connector will accept a
standard mic, line or instrument level
signal. Phantom power is provided on
the XLR microphone input.
7. Headphone - 3.5mm stereo output
jack for connecting headphones.
8. Phones Level - Controls the overall
output level to the left HEADPHONE
output (7).
9. STEREO/MONO Button - This button
allows you to select the direct input
monitoring between stereo and mono
operation. In Mono mode, the input
signals will be heard equally in the
left and right side of the Studio GT. In
Stereo mode, Channel 1 will be heard
in the left and Channel 2 will be heard
in the right.
10. MIX Control - The MIX control is used
to balance the audio mix of the input
signals and the audio coming from the
computer. When turned fully counter-
clockwise, only the signals connected
to the Studio GT inputs are heard.
When turned fully clockwise, only the
output signal from your computer is
heard at the speaker and headphone
outputs. Any adjustment between
the two endpoints will result in a
proportional mix of both the Studio
GT inputs and computer audio.
11. Headphone - 3.5mm stereo output
jack for connecting headphones. The
monitors automatically mute when
the right headphone is connected.
12. Level Control - Controls the overall
output level for both speakers and the
right HEADPHONE output (11).
