9

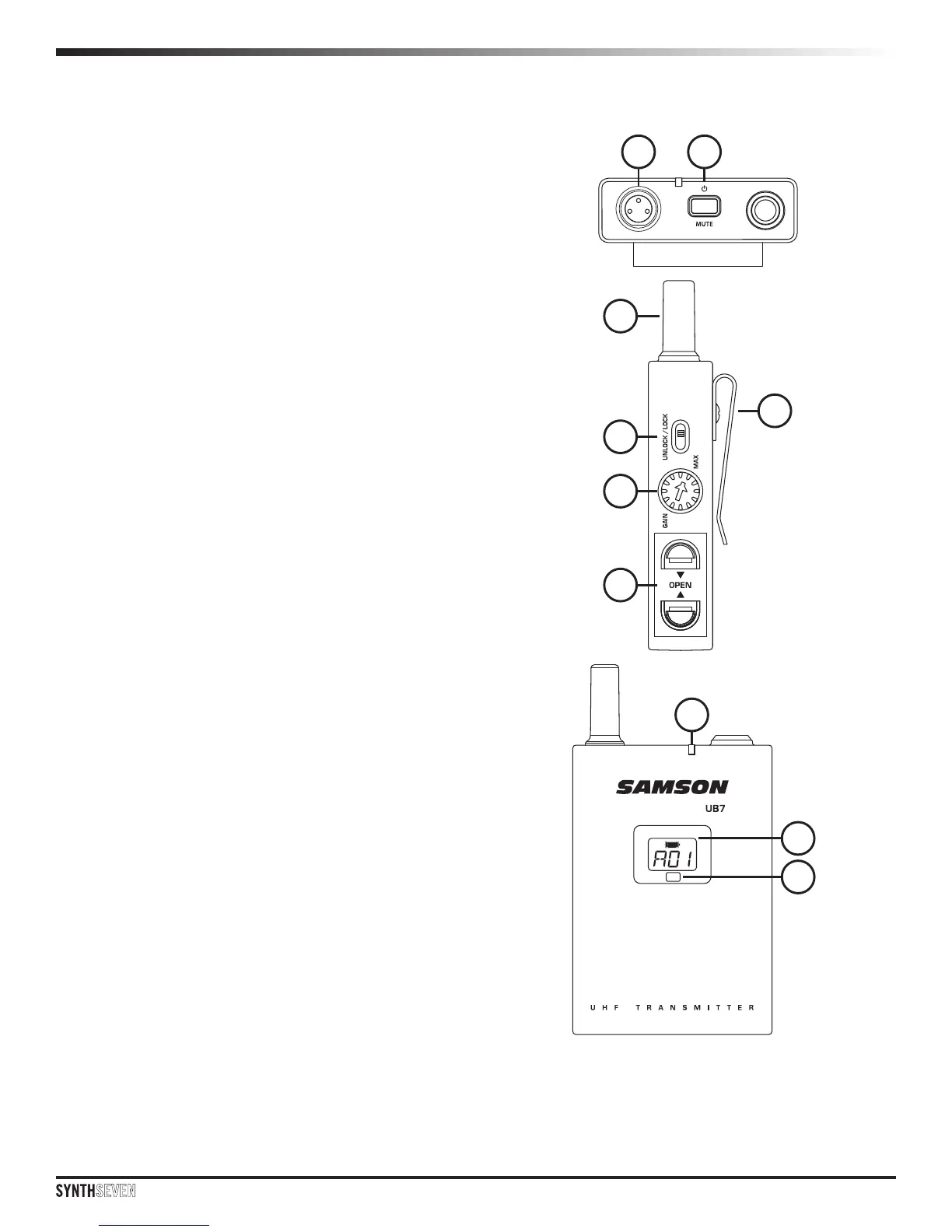

UB7 Callouts
1. Input Connector - Connect the input device via the
mini-XLR connector.
2. Power/Mute Switch - Press and hold to turn the unit
on or off. Press and release to mute or unmute the
transmitter.
3. Antenna - Permanently attached transmitter antenna.
4. Belt Clip - Use this clip to fasten transmitter to a
belt or guitar strap.
5. UNLOCK/LOCK Switch - Locking the system controls
prevents accidental muting or channel adjustment
during performance.
6. Input GAIN Control - This control adjusts the
transmitter input sensitivity to work with microphone
and instruments input signals. For optimal
performance set the input GAIN control to where
you see the UR7 PEAK indicator start to light under
high levels, then turn down slowly until the PEAK
light stops lighting or only occasionally flashes
during the loudest input each channel will see
7. Battery Holder - Insert two standard AA (LR6)
batteries here, being sure to observe the plus
and minus polarity markings shown. Although
rechargeable Ni-Cad batteries can be used, they
do not supply adequate current for more than four
hours.
WARNING: Do not insert the batteries backwards; doing
so can cause severe damage to the UR7 and will void
your warranty.
8. Status Indicator - This LED lights green when the
transmitter is powered, and lights red when the
transmitter is muted.
9. LCD Display - Displays the group, channel and
battery level information.
10. IR Lens - This window is used to capture the infrared
signal sent from the UR7 during the IR SET to
channelize the transmitter.
1 2
5
6
7
3
4
8
9
10
