SZ Series Output Wiring Guide
SZ Series Output Wiring Guide
There are several ways to interface the SZ series amplifers, depending on your exact system set-up. For most small
installation 14 to 16 gauge zip cord can be used for most small to medium size installations. Follow the cable dia-
grams below for connecting to the input of your amplifier.

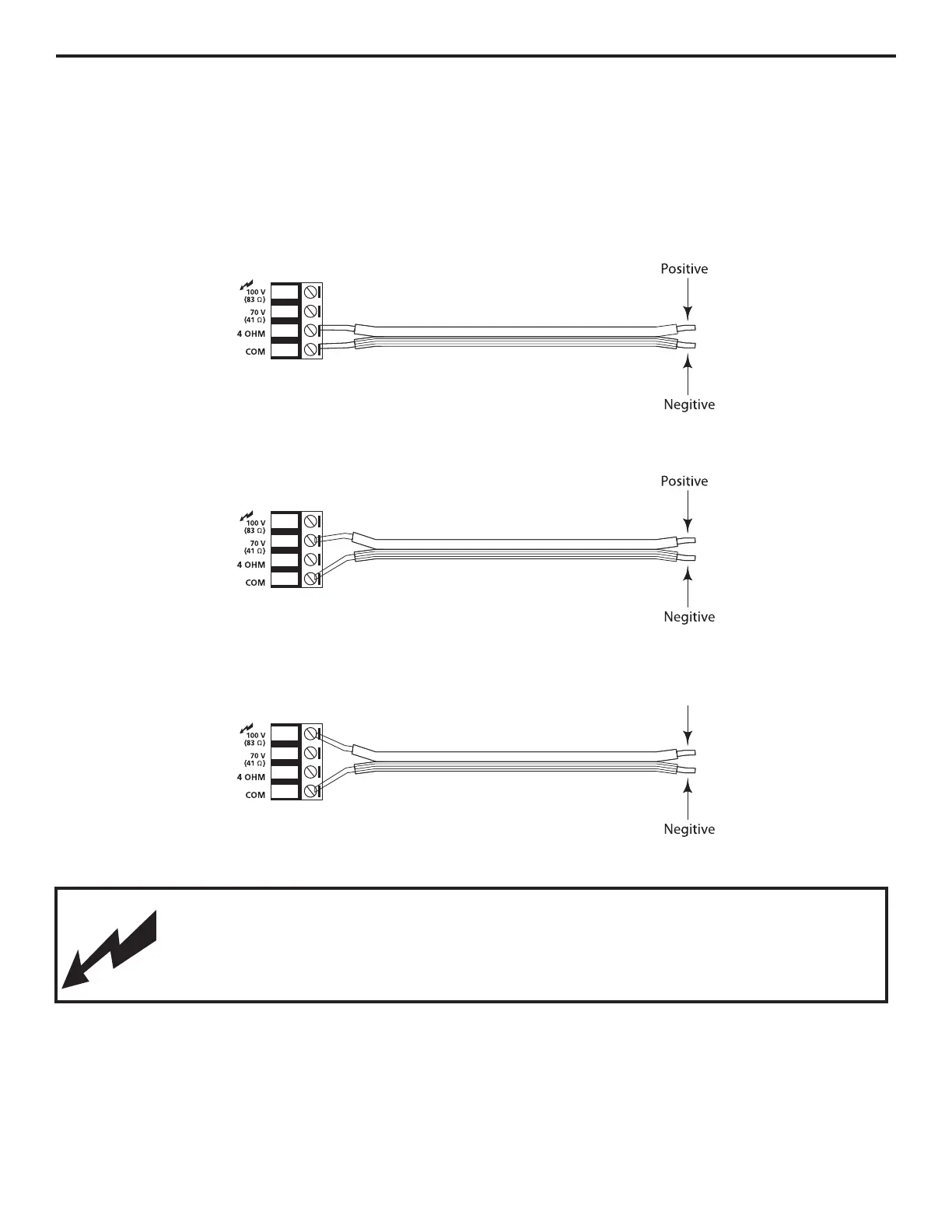

4 and 8 Ohm Wiring Guide
70 Volt Wiring Guide
100 Volt Wiring Guide
SHOCK HAZARD SYMBOL
WARNING!!! - PAY ATTENTION TO THE WARNING SYMBOL AND AVOID ELECTRICAL SHOCK.
DO NOT HOLD OR TOUCH THE COMMON AND 70 OR 100 VOLT WIRE CONNECTION WHILE
OPERATING THE AMPLIFIER.
