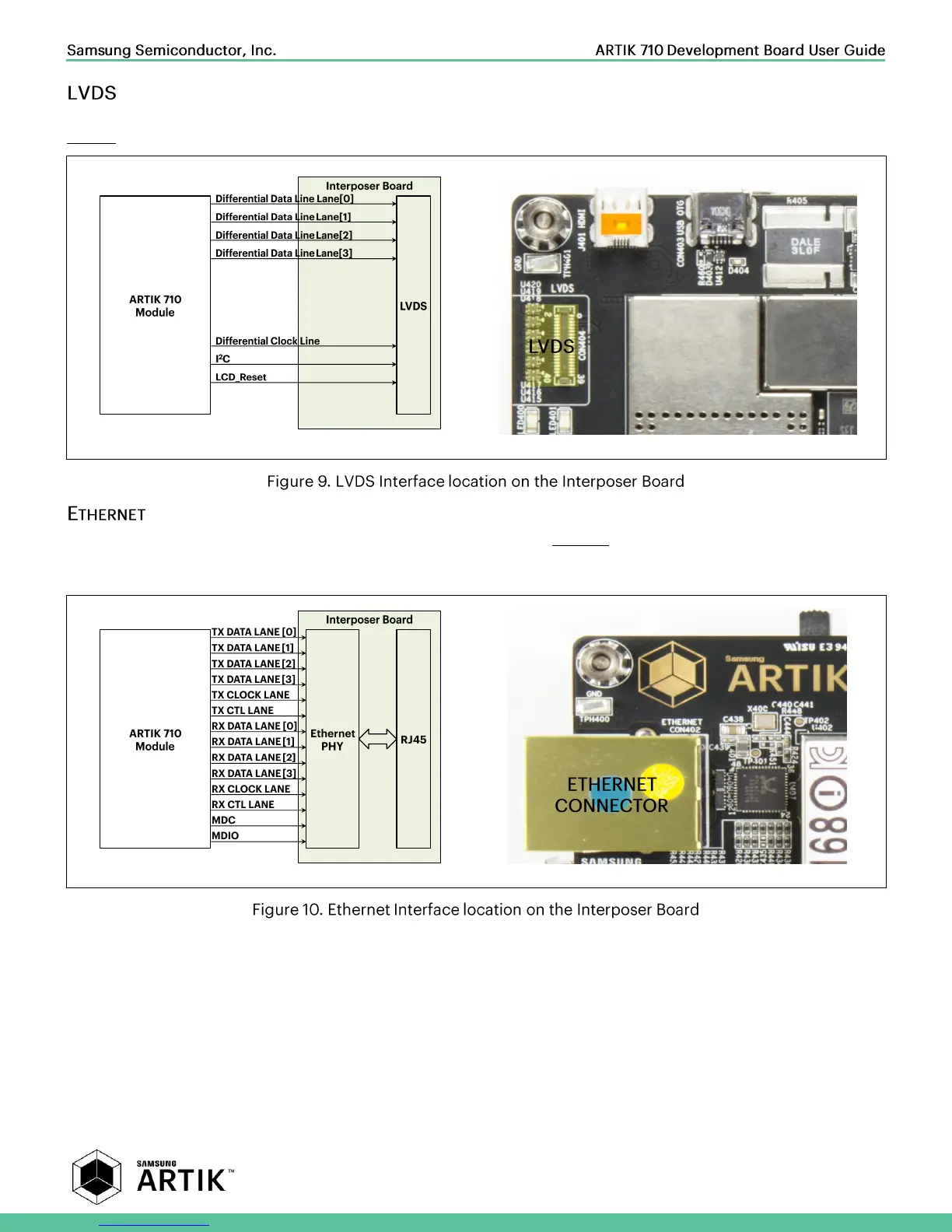

The Interposer board has 1x LVDS Interface containing 5x data channels and 1x clock channel, its location can be seen in
Figure 9. The available maximum resolution is 1920x1080@60fps.
The Interposer board has 1x Ethernet Interface, its location can be seen in Figure 10. The Ethernet Interface is based on
802.3az-2010 complying to the Energy Efficient Ethernet (EEE) standard. The maximum theoretical speed of the interface is
1000Mbps.
