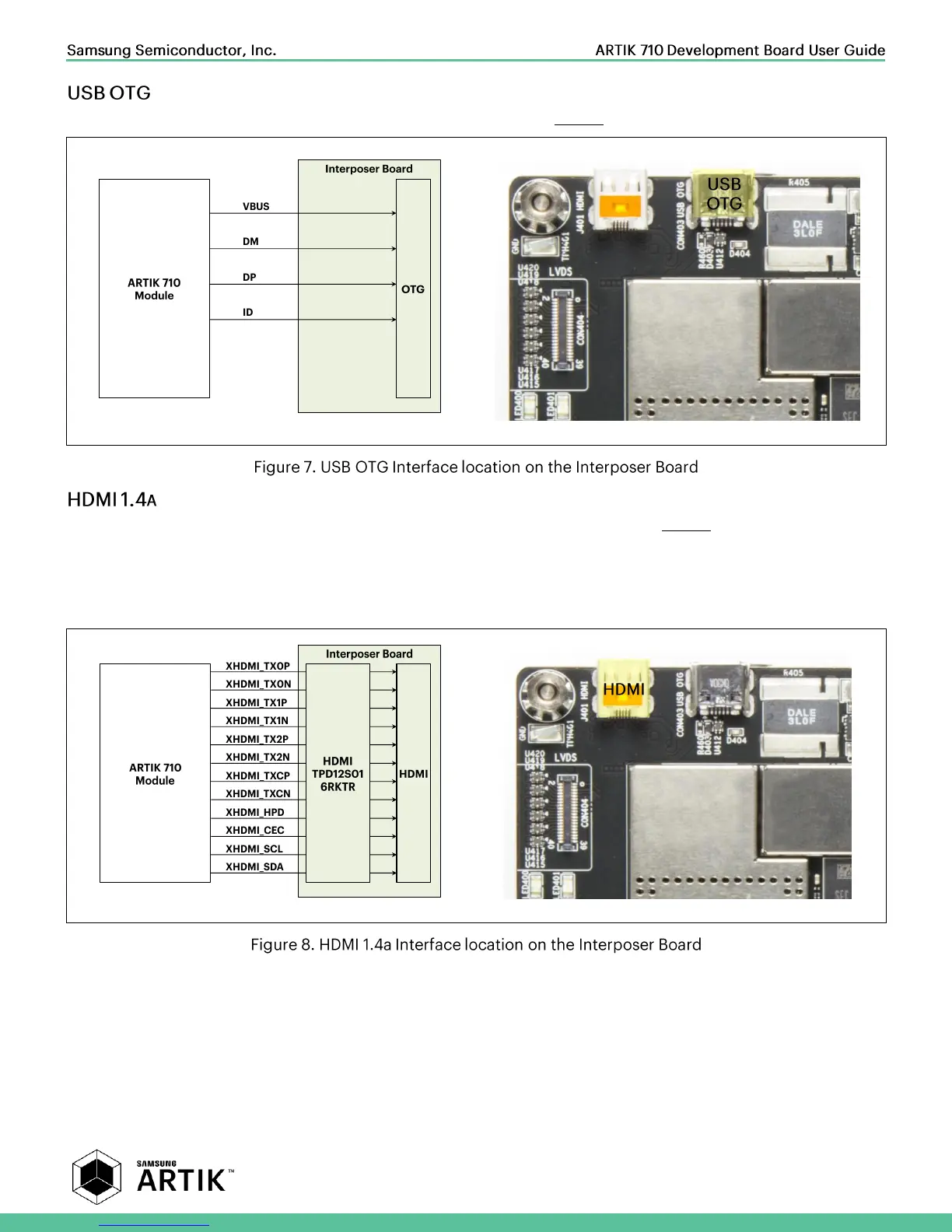

The Interposer board has 1x USB OTG connector located as can be seen in Figure 7.
The Interposer board has 1x HDMI 1.4a connector (Micro D-Type) located as can be seen in Figure 8. The following video
formats are supported:
1. 480p/480i @59.94Hz/60Hz, 576p/576i@50Hz
2. 720p/720i @50Hz/59.94Hz/60Hz
3. 1080p/1080i @50Hz/59.94Hz/60Hz
