Samsung AC MN DKH Series Service Manual

2-2 Samsung Electronics

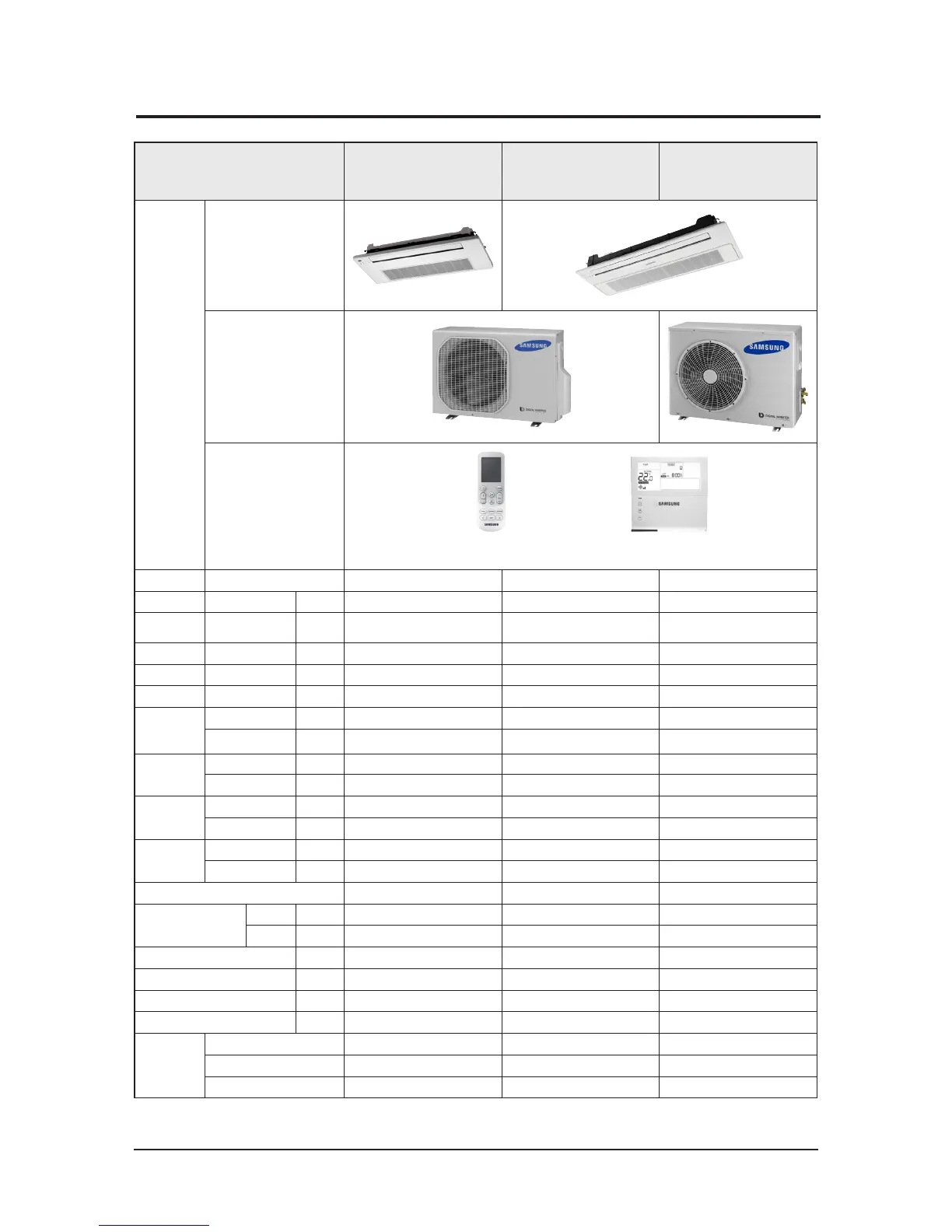

2-2 Product Specifications
ITEM
AC036JB1DEC/TL
AC026/035MN1DKH/TK
AC026/035MN1DKH/EU
AC036JCADEC/TL
AC052JB1DEC/TL
AC052JCADEC/TL
AC071JB1DEC/TL
AC071JCADEC/TL
Indoor Unit
Outdoor Unit
Remote Controller
Wireless remote controller
: MR-EC00
Wired remote controller
: MWR-WE10
Power Product 1Φ, 230V/50Hz 1Φ, 230V/50Hz 1Φ, 230V/50Hz
Indoor L x H x D mm 970x135x410 1200x138x450 1200x138x450
Panel L x H x D mm
1180x25x460(PC1NUSMAN)
1198x25x500(PC1NUPMAN)
1410 x 23 x 500 1410 x 23 x 500
Outdoor L x H x D mm 790x548x285 790x548x285 880x638x310
Indoor Product kg(Net) 9.5 13.4 13.4
Outdoor Product kg(Net) 34.0 34.0 46.1
Capacity
Cooling(STD) W 3,600 5,200 7,100
Heating(STD) W - - -
Power
Consumption
Cooling(STD) W 1,200 1,730 2,730
Heating(STD) W - - -
Operation
current
Cooling(STD) A 5.5 7.8 11.5
Heating(STD) A - - -
Noise
Indoor unit (C/H) dB 35/- 39/- 41/-
Outdoor unit (C/H) dB 49/- 50/- 50/-
Refrigerant 900 900 1,000
Connecting Pipe
Liquid mm 6.35 6.35 6.35
Gas mm 12.7 12.7 15.88
Additional Refrigerant (R410A) g/m 20 20 20
Standard m 5 5 5
Extension length(Total) m 30 30 30
Extension length(Elevation) m 15 15 15
Option Code
Product Option 01707C-11042D-272800-375260 01807C-19042C-273400-372560 01807C-19044C-274800-37F560
Installation option 020000-100000-200000-300000 020000-100000-200000-300000 020000-100000-200000-300000
Cycle Option 034000-103100-200000-300020 034C00-104000-200000-300020 034C00-103C00-200000-300020
