English

Indoor unit installation

Installation

Return air requirements

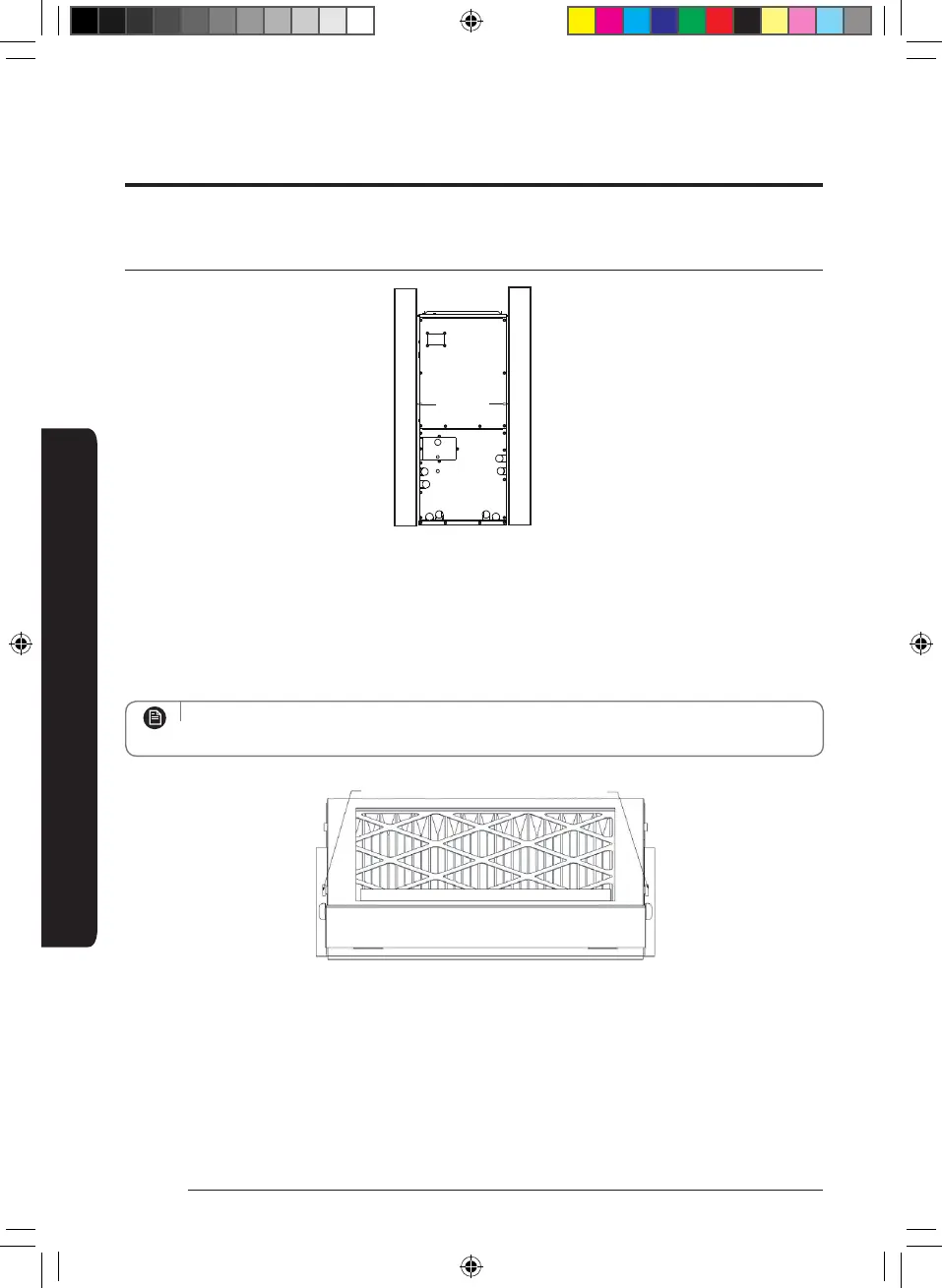

Closet Wall

Typical Closet Installations

Provisions shall be made to permit the air in the rooms and the living spaces to return to the air handler. Failure to comply





premature heating element failure (if electric heat kits are installed).

Upow Accessory Filter Box Kit







NOTE



ADJUSTMENT KNOB

FOR 1" OR 2" FILTER

ADJUSTMENT KNOB

FOR 1" OR 2" FILTER

Accessory Air Filter Box for 1” or 2” Air Filters. Filter Size Adjustment knob is on both sides.

FILTER BASE ASSEMBLY KIT MODEL NUMBERS - FIELD INSTALLED, PURCHASED SEPARATELY

VFB-1 – 16” X 20” X 2” Small Cabinet (12/18/24K)

VFB-2 – 20” X 20” X 2” Medium Cabinet (30/36K)

VFB-3 – 20” X 24” X 2” Large Cabinet (42/48K)

DB68-11271A-02_IM_CAC Universal AHU Indoor_AA_EN_.indd 10 2022-09-15 오전 9:53:15
