Samsung AC024BNZDCH - Page 33

33
English
Installation

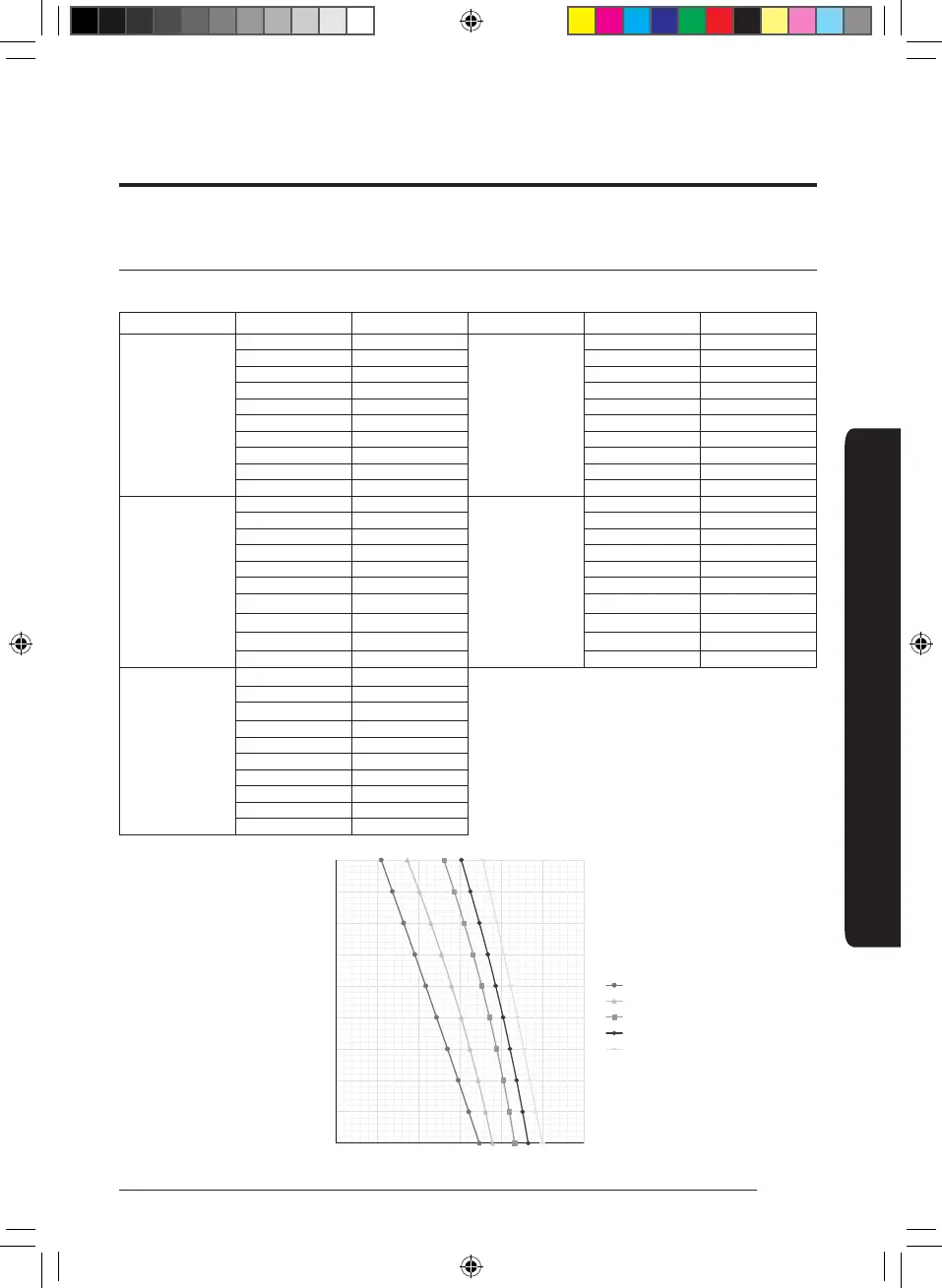

AC030BNZDCH
HP : 1/2 Default motor taps : High/Mid/Low = 4/3/2.
Motor Tap P(inwg) CFM Motor Tap P(inwg) CFM
1
0.1 894
4
0.1 1130
0.2 843 0.2 1103
0.3 792 0.3 1074
0.4 740 0.4 1042
0.5 687 0.5 1009
0.6 635 0.6 973
0.7 582 0.7 935
0.8 528 0.8 894
0.9 474 0.9 851
1 420 1 807
2
0.1 957
5
0.1 1198
0.2 924 0.2 1168
0.3 888 0.3 1138
0.4 848 0.4 1108
0.5 806 0.5 1077
0.6 760 0.6 1045
0.7 711 0.7 1012
0.8 659 0.8 979
0.9 604 0.9 945
1 546 1 911
3
0.1 1065
0.2 1039
0.3 1010
0.4 978
0.5 943
0.6 905
0.7 864
0.8 820
0.9 773
1 723
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
200 400 600 800 1000 1200 1400
Q (CFM)
1
2
3
4
5
P (inwg)
