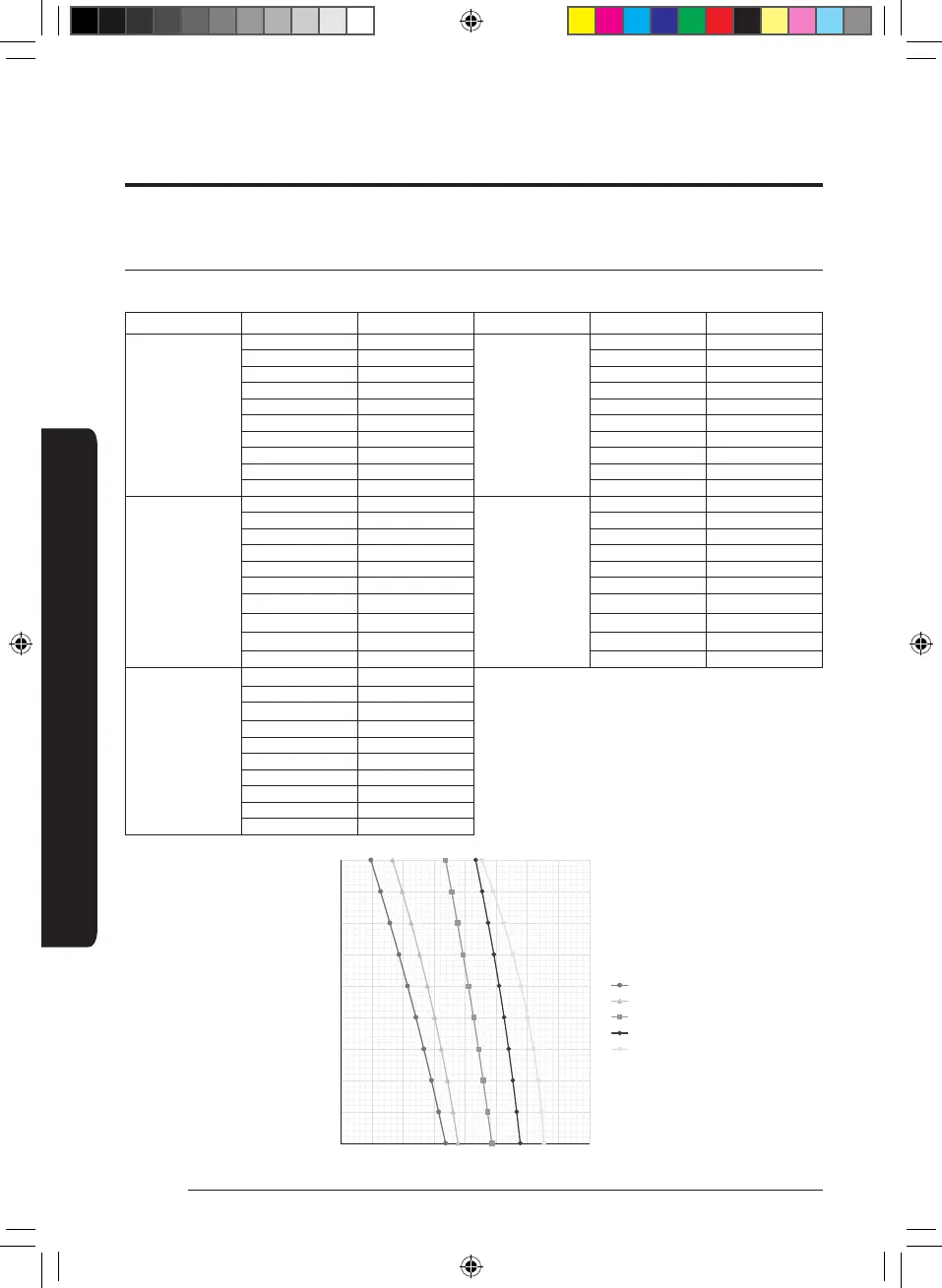

Blower CFM tables
Installation
AC036BNZDCH
HP : 1/2Default motor taps:High / Mid /Low = 4/3/2.
Motor Tap P(inwg) CFM Motor Tap P(inwg) CFM
1
0.1 873
4
0.1 1354
0.2 828 0.2 1331
0.3 782 0.3 1306
0.4 733 0.4 1279
0.5 682 0.5 1250
0.6 628 0.6 1218
0.7 572 0.7 1184
0.8 514 0.8 1147
0.9 454 0.9 1108
1 392 1 1067
2
0.1 953
5
0.1 1507
0.2 921 0.2 1492
0.3 885 0.3 1469
0.4 845 0.4 1439
0.5 802 0.5 1402
0.6 756 0.6 1358
0.7 705 0.7 1306
0.8 651 0.8 1246
0.9 593 0.9 1180
1 531 1 1106
3
0.1 1171
0.2 1144
0.3 1115
0.4 1085
0.5 1053
0.6 1020
0.7 985
0.8 949
0.9 912
1 873
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
200 400 600 800 1000 1200 1400 1600 1800
Q (CFM)
1
2
3
4
5
P (inwg)
