Samsung AC024BNZDCH - Page 35

35
English
Installation

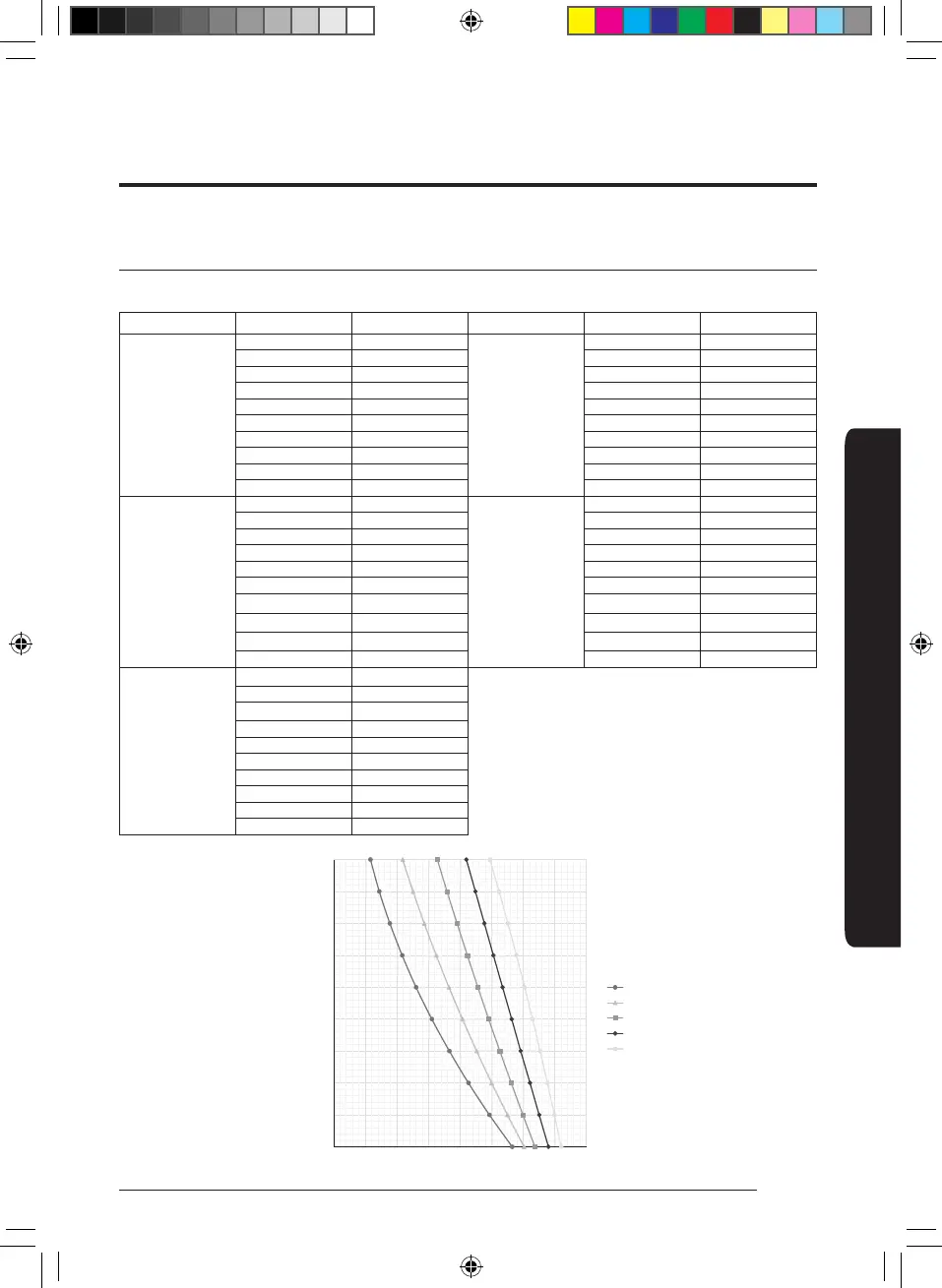

AC042BNZDCH
HP : 1/2Default motor taps:High / Mid /Low = 4/3/2.
Motor Tap P(inwg) CFM Motor Tap P(inwg) CFM
1
0.1 1331
4
0.1 1561
0.2 1187 0.2 1502
0.3 1054 0.3 1444
0.4 933 0.4 1385
0.5 822 0.5 1328
0.6 722 0.6 1270
0.7 634 0.7 1212
0.8 556 0.8 1155
0.9 489 0.9 1098
1 433 1 1041
2
0.1 1406
5
0.1 1641
0.2 1301 0.2 1599
0.3 1201 0.3 1554
0.4 1106 0.4 1508
0.5 1016 0.5 1460
0.6 930 0.6 1410
0.7 850 0.7 1358
0.8 774 0.8 1304
0.9 703 0.9 1248
1 637 1 1190
3
0.1 1475
0.2 1399
0.3 1325
0.4 1253
0.5 1182
0.6 1114
0.7 1047
0.8 982
0.9 918
1 857
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
200 400 600 800 1000 1200 1400 1600 1800
Q (CFM)
1
2
3
4
5
P (inwg)
