Disassembly and Reassembly
Samsung Electronics 3-3

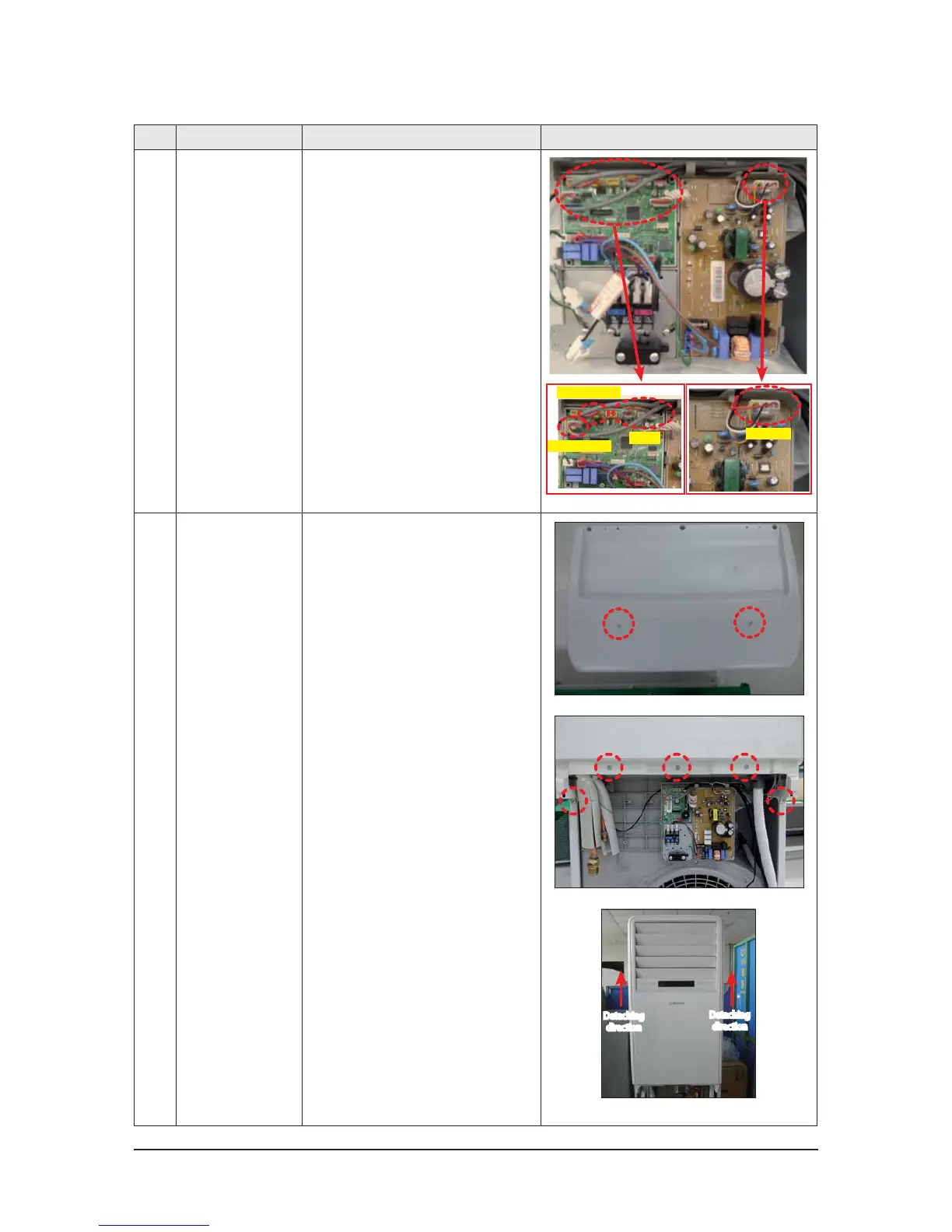

No Parts Procedure Remark
3) Detach the connectors connected to
Panel-Outlet and the Motor Connector.
Motor-In
Panel
Horizontal blade
Vertical blade
4 Ass'y Panel-outlet 1) Loosen the 7 fixing screws of
Ass'y Panel-Outlet and detach the
panel outlet by pushing upwards.
(Use +Screw driver)
Detaching
direction
Detaching
direction
To Next Page
