Samsung AC048KNPPCC - Panel PCB

PCB Diagram and Parts List
5-4 Samsung Electronics

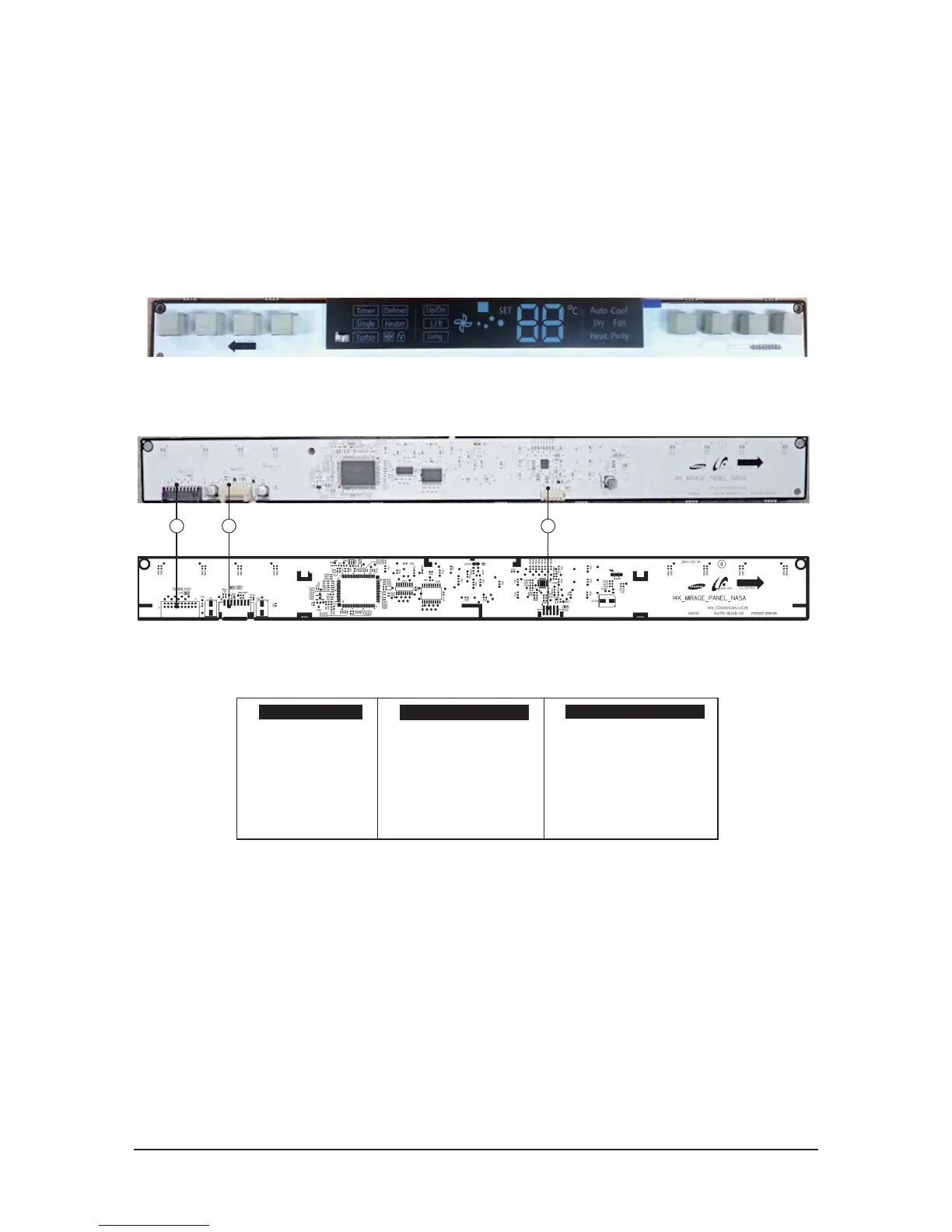

5-1-3 Panel PCB
▶ This Document can not be used without Samsung’s authorization.
  
①
CN903-DISPLAY
#1 : DC 12V
#2 : GND
#3 : PANEL_TXD
#4 : PANEL_RXD
#5 : REMOCON_RXD
#6 : DC 5V
#7 : KEY_INT
②
CN31-DOWNLOAD(MICOM)
#1~#20 : Download
③
CN01-DOWNLOAD(Touch-IC)
#1 : DC 5V
#2 : GND
#3 : -
#4 : I2C
#5 : I2C
