Samsung AE RXYDEG Series User Manual

13
ENGLISH

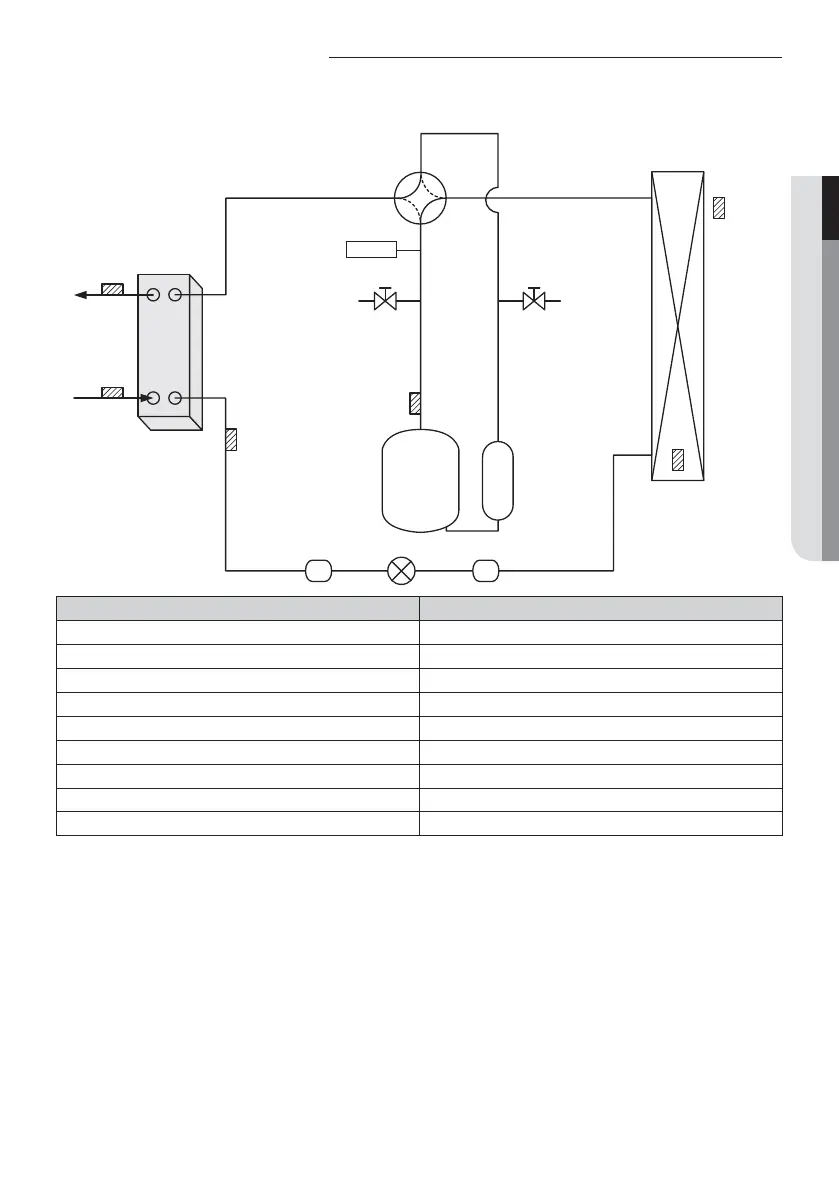

Functional diagram
PHE
T/S #3
Charging
port
Charging
port
4WAY
v/v
T/S #4
Comp
Filter
HP s/w
Filter
Exp. v/v
Accum
T/S #5
T/S #6
T/S #2(TW2)
T/S #1(TW1)
Part Description
PHE Plate heat exchanger
T/S #1 For water inlet temp sensor
T/S #2 For water outlet temp sensor
T/S #3 For PHE temp sensor
T/S #4 For discharge temp
T/S #5 For cond temp
T/S #6 For ambient temp sensor
Charging port For refrigerants
Accum Accumulator
