Application examples
t The application examples given below are for illustration purposes only.
t When the SAMSUNG Air-to-Water Heat Pump system is used in series with another heat source (e.g. gas
boiler), ensure that the return water temperature not exceed 65°C.
t The unit is only to be used in a closed water system. Application in an open water circuit can lead to excessive
corrosion of the water piping.
t SAMSUNG can not be put responsible for incorrect or unsafe situations in the water system. Make sure that the
boiler, radiators, convectors, solar collectors, UFHs, FCUs, additional pumps, pipings, and controls in the water
system are in accordance with relevant local laws and regulations under the installer's responsibility.
t By-pass valve shall be installed for space heating loops. When one of loops or all loops are closed , water ow
rate could be low condition. To keep ow rate approximately and prevent ow stop, the by-pass valve shall be
installed between supply collector and return collector.
t SAMSUNG shall not be held liable for any damage resulting from not observing this rule.
t SAMSUNG do not provide specic water system components such as Pressure relief valve, Air vent valve, buer
tank and etc. Installers and end-users shall consider how to install the above designated components in overall
water system depending on the installation conditions. If the components are not installed in appropriate
location, the water system can not be operated as designed.
WARNING

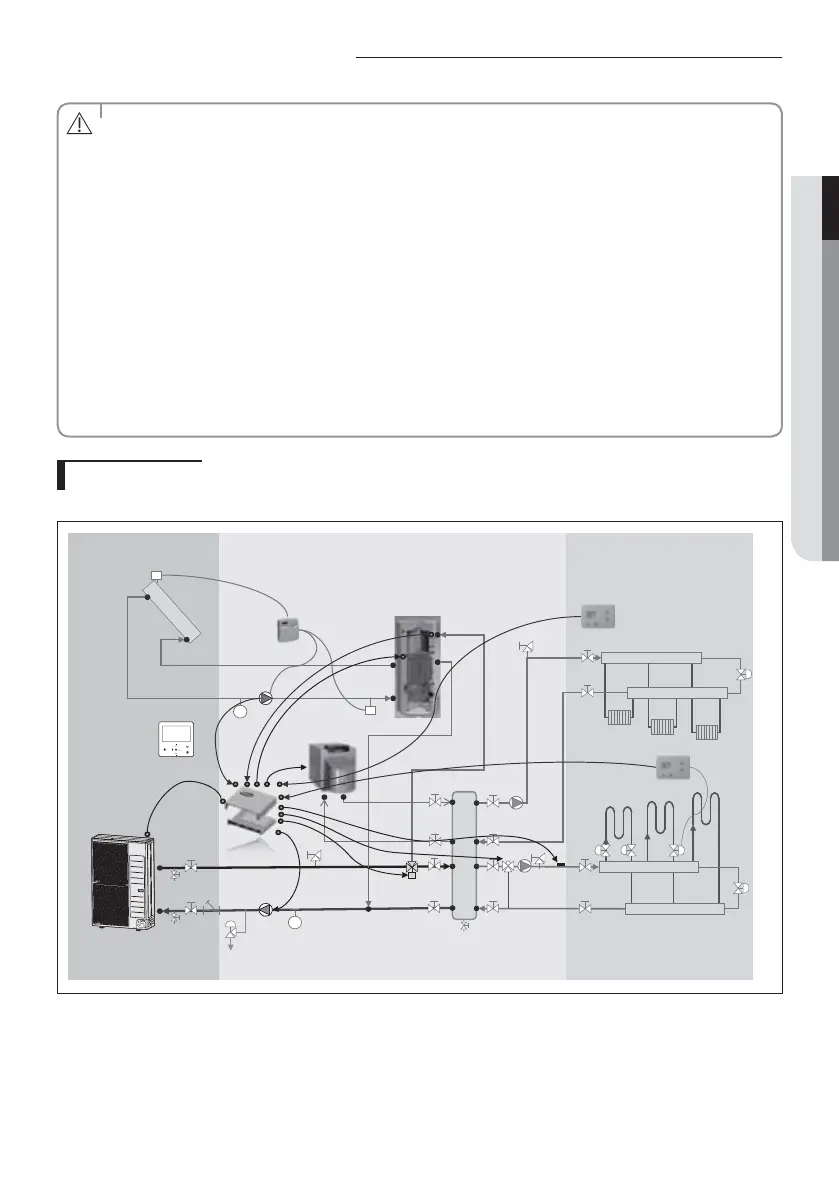

Application #1
Mono outdoor + Control kit
Outdoor Mechanical room Indoor
Solar collector
Solar signal input
DHW sensor input
& Booster heater output
Back up boiler
operation output
Booster heater
Zone Controller #1 (Radiators)
Zone Controller #2 (UFHs)
Wired controller
(provided by SAMSUNG)
Shut-O &
Drain valve
Strainer
Pressure
relief valve
3.0 bar
Air-vent
Air-vent
Bypass
valve
Bypass valve
Air-vent
50 ~ 55°C
35°C
45°C
Primary
pump
Expansion
tank
3-way valve
Balancing Vessel
Mixing valve
Secondary
Pump #1
Drain
Control Kit
(provided by SAMSUNG)
DHW tank
Outdoor unit
Solar pump
Supply header
Supply header
Return header
Return header
Under- Floor Heating Coils
Radiators or convectors
TW4
