8

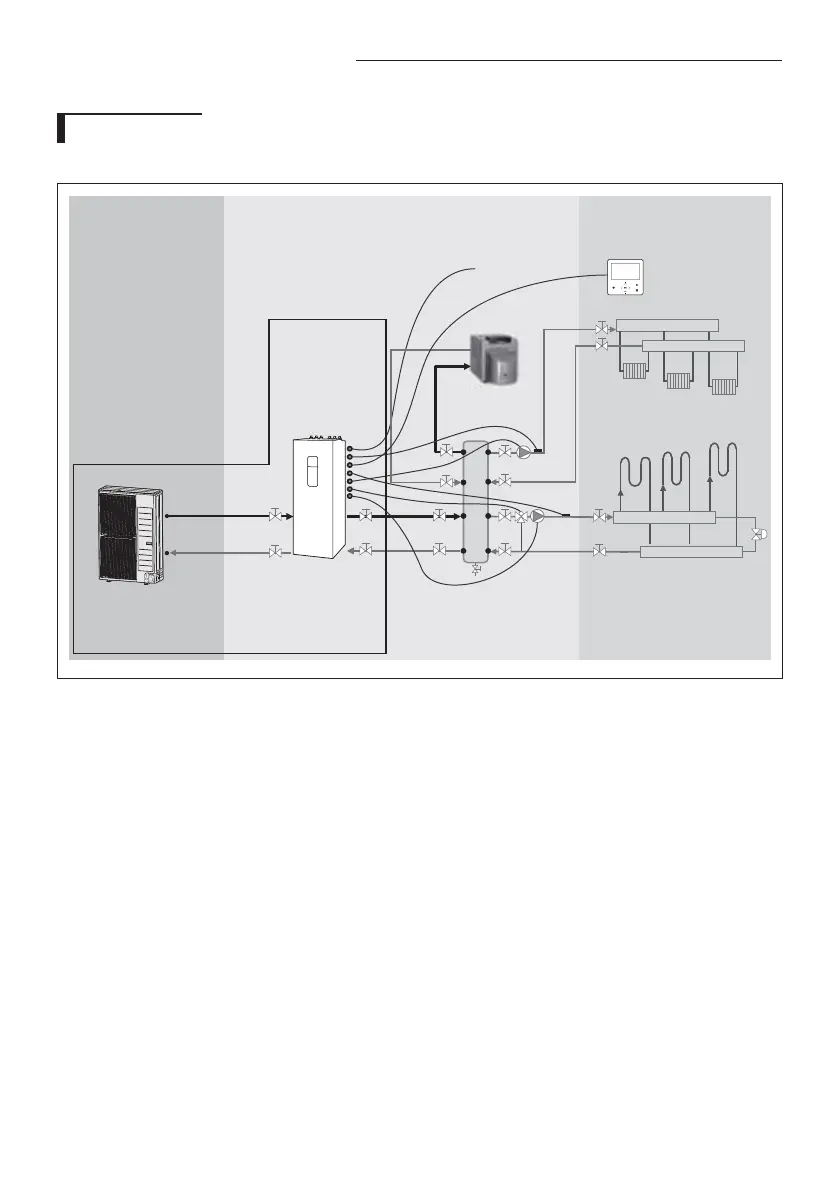

Application examples
Application #2
Mono outdoor + Tank Integrated Hydro Unit
Outdoor unit
[ Supply Scope ]
Tank Integrated Hydro Unit
Balancing Vessel
Back up Boiler
Operation
Back-up Boiler
Room Controller
Zone Control
Supply Header
Return Header
Supply Header
Return Header
Under-Floor Heating Coils
Radiators or Convectors
45°C
35°C
Water
pump #2
Water
pump #1
Outdoor Indoor Mechanical Room
Tw2_z1
Tw2_z2
