Samsung AM MXVAFC Series - Page 55

55
ENGLISH
Classication Example Remarks
Maximum
allowable
length after
branch joint
First branch joint
~ Farthest Indoor
unit
Pipe length
45m (148')
or less
b+c+d+e+f+g+p ≤ 45m (148'), i ≤ 45m (148')
45m~90m
(148'~295')
Note 1)
Required conditions must be satised
 When AMNQD is installed, H2 is 15 m or less.
EEV kit Model name Remarks
EEV Kit ~
Indoor unit
Actual pipe
length
2m(6.6') or
less
MEV-E24SA
1 indoor
Apply to products without
EEV(Wall mounted & ceiling)
MEV-E32SA
20m(66') or
less
MXD-E24K132A
2 indoorMXD-E24K200A
MXD-E32K200A
MXD-E24K232A
3 indoor
MXD-E24K300A
MXD-E32K224A
MXD-E32K300A
 Please refer to the EEV Kit manual.

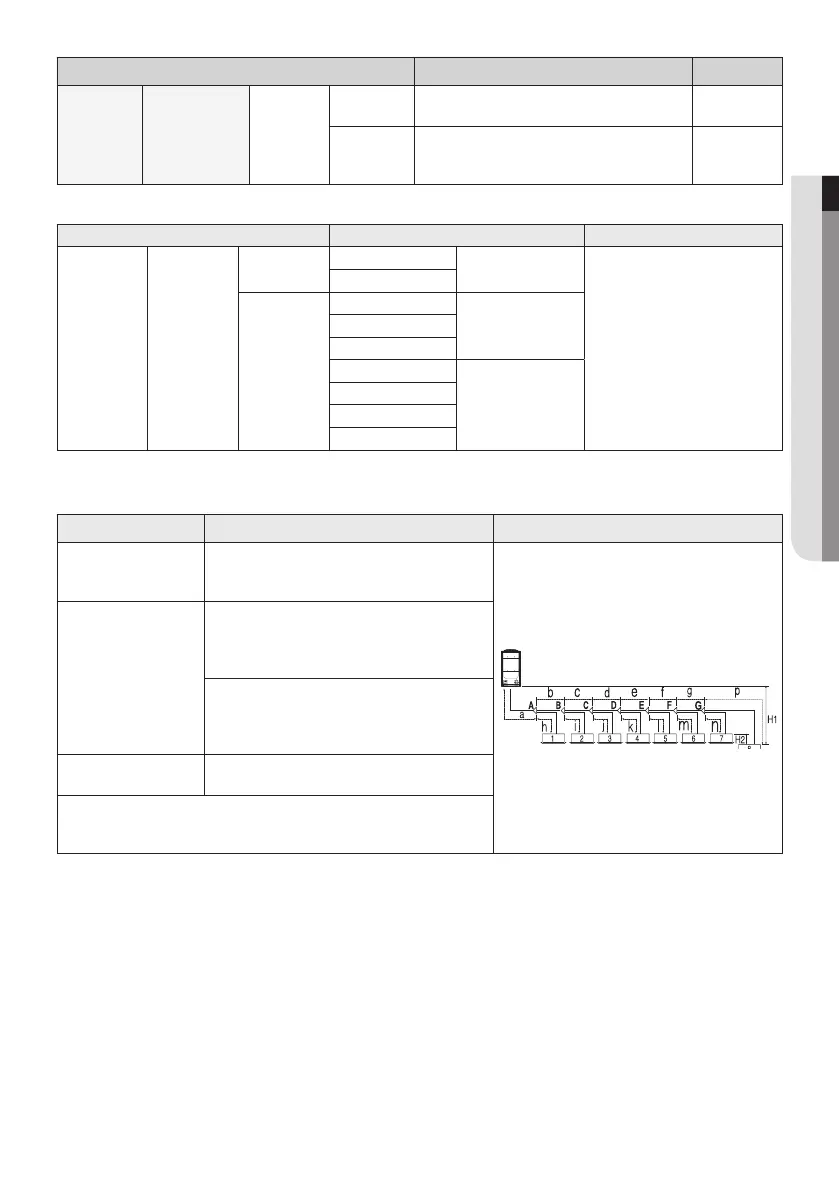

Note 1) Required condition
Classication Condition Example
First branch joint ~
Farthest Indoor unit
45m (148') ≤ b+c+d+e+f+g+p ≤ 90m (295'): branch
pipes (b, c, d, e, f, g) size must be increased by 1
grade
Total length of
extended pipe
If the size of pipe (main pipe), between the rst
branch joint and the outdoor unit, is not increased by
1 grade, a+(b+c+d+e+f+g)x2+h+i+j+k+l+m+n+p
≤ 1000m (3281')
If the size of pipe (main pipe), between the rst
branch joint and the outdoor unit, is increased by 1
grade, a+(b+c+d+e+f+g)x2+h+i+j+k+l+m+n+p ≤
1000m (3281')
Each Y-joint ~ Each
indoor unit
h, i, j, … p ≤ 45m (148')
Dierence between the distance of the outdoor unit to the farthest indoor
unit and nearest indoor unit ≤ 45m (148'), (a+b+c+d+e+f+g+p)-(a+h) ≤
45m (148')
Note 2) When indoor unit is located at higher level than outdoor unit, allowable height dierence is 110m(361’), (If the height
dierence is over 40m(131’), contact your local dealer for more information.) but when the indoor unit is located at
lower level than outdoor unit, allowable height dierence is 110m (361’) (If the height dierence is over 50m(164’),
need to decide whether to install PDM kit or not.)
Model name of the PDM kit : MXD-A38K2A, MXD-A12K2A, MXD-A58K2A
