Disassembly and Reassembly
3-66 Samsung Electronics

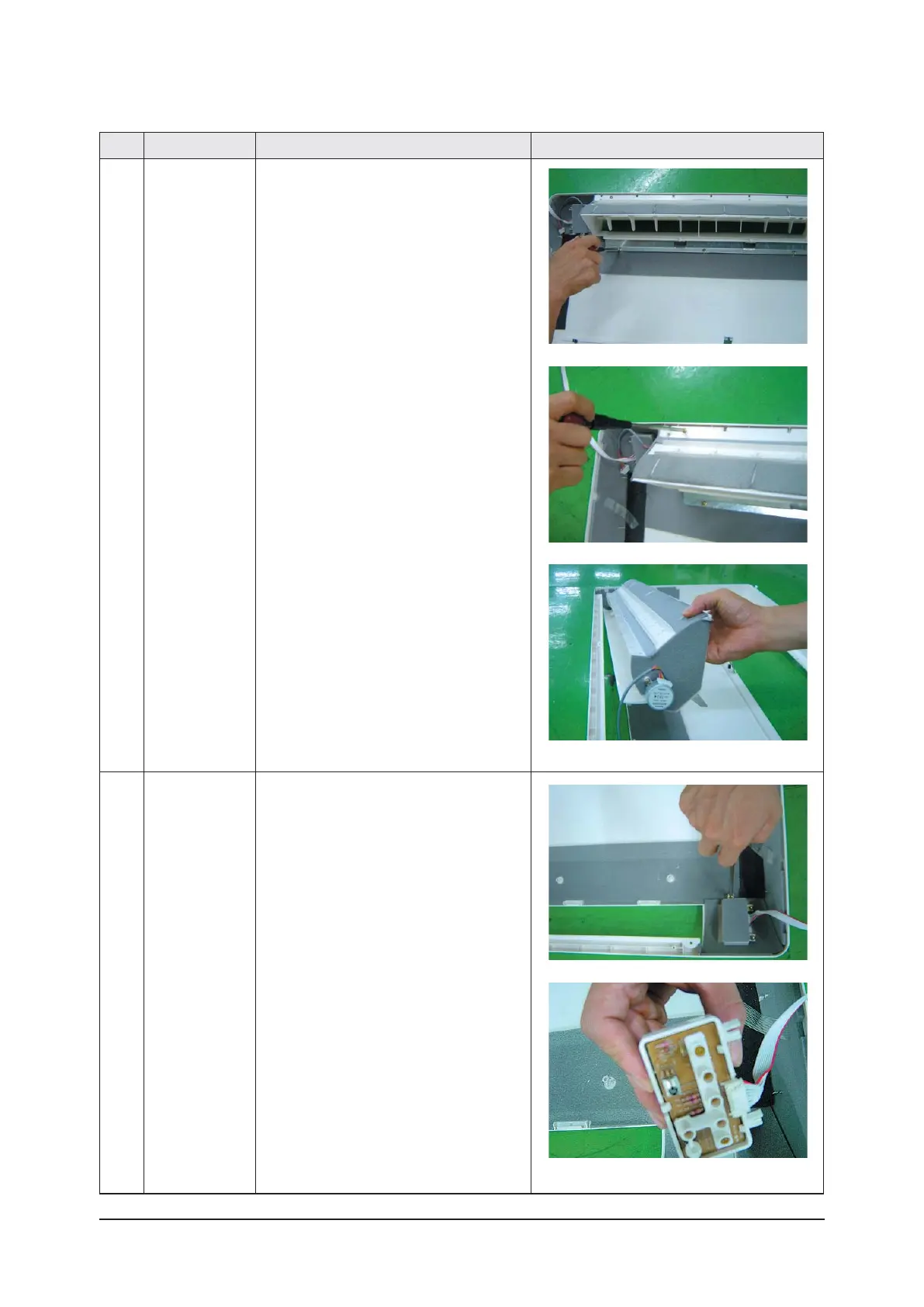

No Parts Procedure Remark
5 Stepping Motor 1) Loosen the 4 screws in rear side of Front
Cover assembly as shown in picture.
2) Loosen the 2 screws as shown in picture.
3) Disassemble the Blade and Stepping Motor
assembly and remove the 2 Screws Stepping
Motor.
6 Display PCB 1) Loosen the 3 screws in rear side of
Front Cover assembly as shown in picture.
2) Disassemble Display PCB assembly and
Disconnect Wire.
3) Disassemble the Display PCB.

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
