Samsung APH289SEF - Perfect Cleaner Assembly

Samsung Electronics44
Exploded Views and Parts List
9
5
11
2
8
3
7
1
10
12
4
6

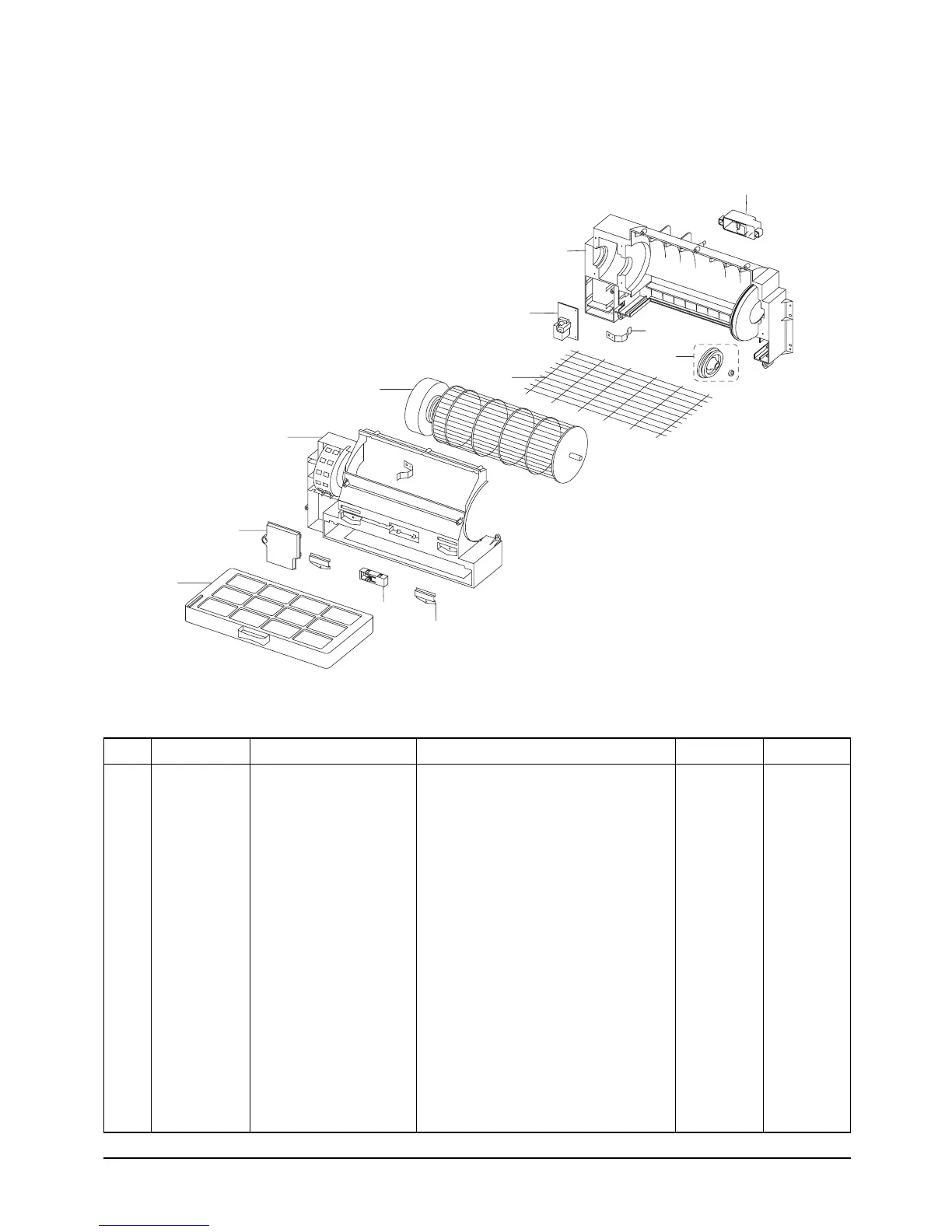

6-1-3 ASS'Y-PERFECT CLEANER-Indoor Unit No.16
■
Parts List
16 DB94-00517A ASS’Y-PERFECT CLEANER APH289SE,CIS TYPE 1 SNA
16-1 DB61-01591A GUIDE-C-FAN-UP HP-SR2371GB,HIPS,-,-,-,-, 1 SNA
16-2 DB61-01592A GUIDE-C-FAN-LOW HP-SR2371GB,HIPS,-,-,-,- 1 SNA
16-3 DB63-00546A GUARD-ELECTRIC FILTER AP-SR2370,MSWR,T=2 1 SA
16-4 DB63-00534A COVER-MAGNET S/W AP-SR2370,HIPS,-,-,-,-, 1 SNA
16-5 DB61-01043A PLATE-HVPS AP-SR2370,STS304,-,-,-,-,SUPR 2 SNA
16-6 DB70-00173B PLATE-MAGNET HP-SR2370,SECC-P,1.0,60,34. 2 SNA
16-7 DB94-00248A ASS'Y-CROSS FAN AP-SR2370,SUPREME-PJT 1 SA
16-8 DB91-00297A ASS'Y ELECTRIC S-PJT,DC12V 1 SNA
16-9 DB94-00258A ASS'Y BEARING G-PJT,CR,BLK 1 SA
16-10 DB63-00536A COVER-HVPS DC AP-SR2370,HIPS(V0),-,-,-,- 1 SC
16-11 DB91-00252A ASS'Y ELECTRIC-IONIZER AC-050C,-ION 1 SA
16-12 DB91-00254A ASS'Y ELECTRIC-FILTER APH289SE,CIS TYPE 1 SA
Code No.No. Specification Q'TY SA/SNADescription
