Exploded Views and Parts List
1
5
6
7
4
3
2

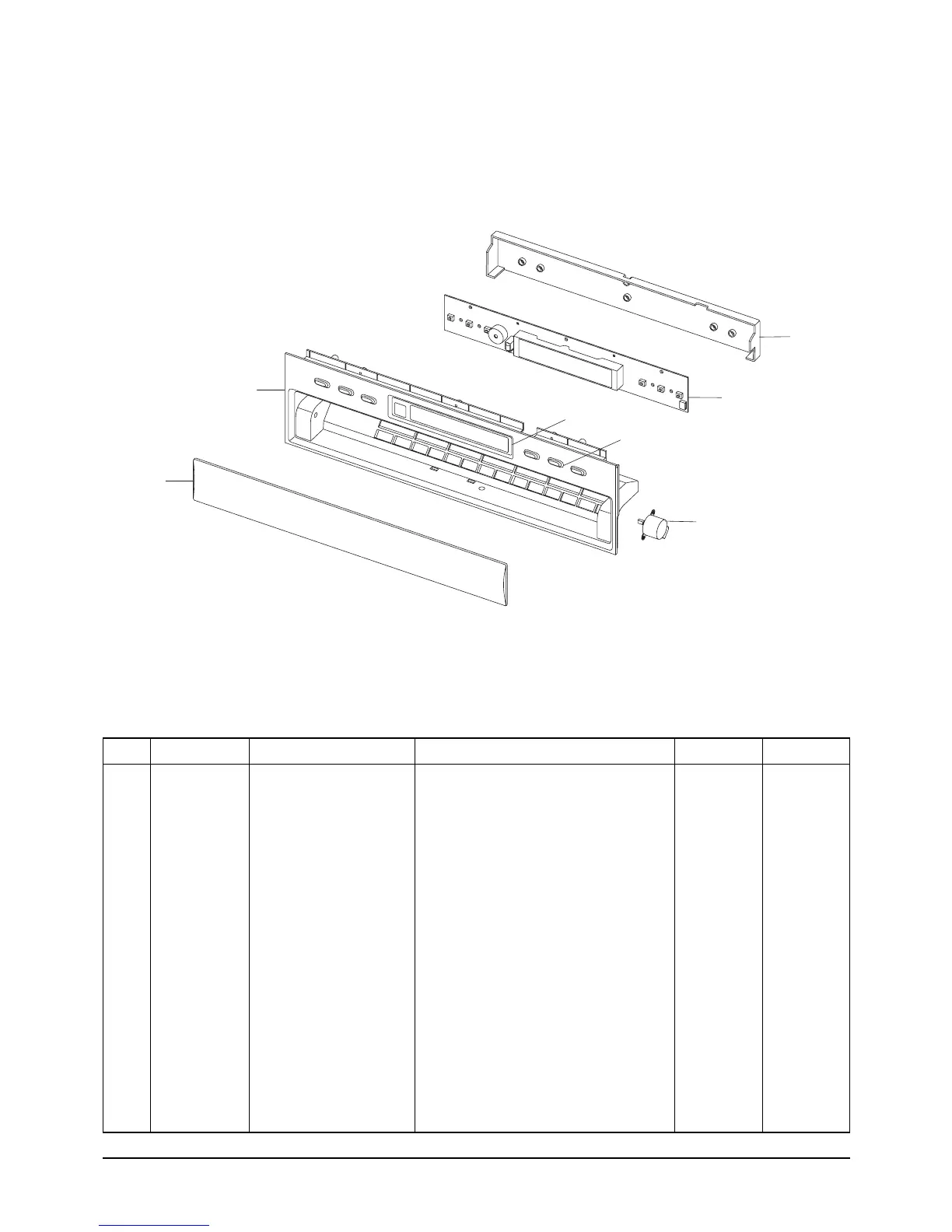

6-1-4 ASS'Y-PANEL DISPLAY-Indoor Unit No.17
■
Parts List
17 DB98-21626E ASS'Y-PANEL DISPLAY CO,SUPREME-PJT,-,-,-, 1 SNA
17-1 DB63-00834B COVER-DISPLAY SR HP-S182P,HIPS,T2.0,135. 1 SNA
17-2 DB66-00357C BLADE-CLEANER HP-S182P,ABS,2.0,-,SC-0162 1 SA
17-3 DB64-01051A INLAY-WINDOW HP-SR2371GB,TRANSPARENCY ACRYL,1.0 1 SA
17-4 DB64-00959A BUTTON-CONTROL HP-SR2371GB,HIPS,-,-,-,SU 1 SNA
17-5 DB94-00524A ASS'Y-COVER PANEL PCB HP-S2371B,- 1 SA
17-6 DB93-01419F ASS'Y PCB DISPLAY S-CIS(APH289SE),PANEL,N 1 SA
17-7 DB95-20138A ASS'Y MOTOR-STEPPING GSP-24RW-046,AS-568 1 SA
Code No.No. Specification Q'TY SA/SNADescription
