 AQV09AWA:DB93-05534A
 AQV12AWA:DB93-05534B

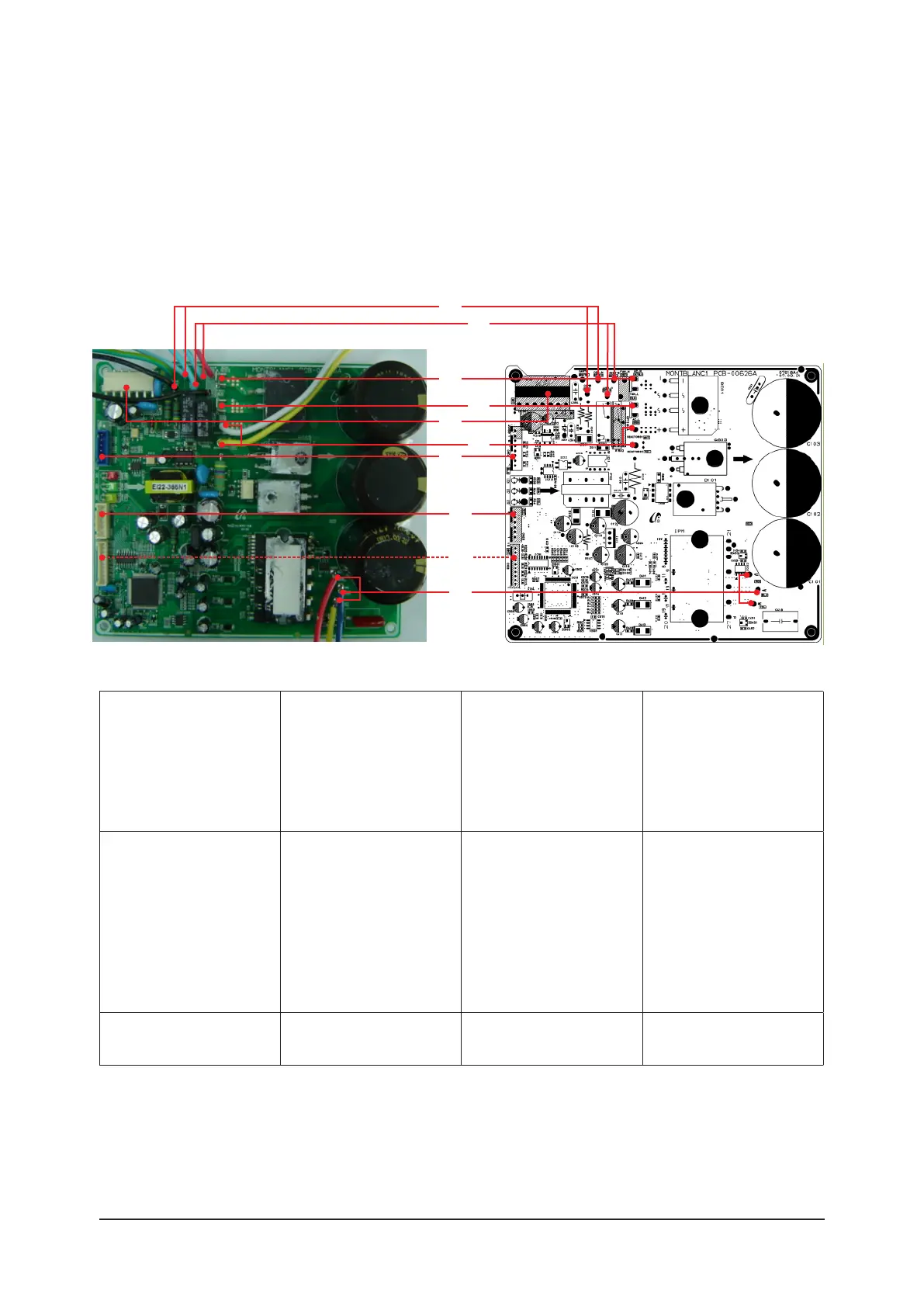

6-1-4. Outdoor MAIN PCB
④
⑤
①
②
③
⑨
⑥
⑦
⑧
⑩
①Power N Wire ②Power L Wire ③CN01-BLCD FAN MOTOR
#1: DC310V
#2: Null
#3: Motor Driving Signal
#4:15V
#5: Motor Driving Signal
#6: Feedback Signal
#7:Reverse Signal
④Communication AC
Wire
#Sky-blue
#Black
⑤ 4Way-valve Wire ⑥ CN54-DIS/OUTDOOR/
COND Temperature
Sensor
#1:Outdoor temperature
sensing
#2:GND
#3:Discharge tempera
-
ture sensing
#4:GND
#5:Cond. temperature
sensing
#6:GND
⑦CN63-EEV Connector
#1:EEV driving signal
#2:EEV driving signal
#3:EEV driving signal
#4:EEV driving signal
#5:EEV driving signal
#6:DC12V
⑧CN30-DOWMLOAD
미사용
⑨Reactor Connector Wire ⑩Compressor Wire
