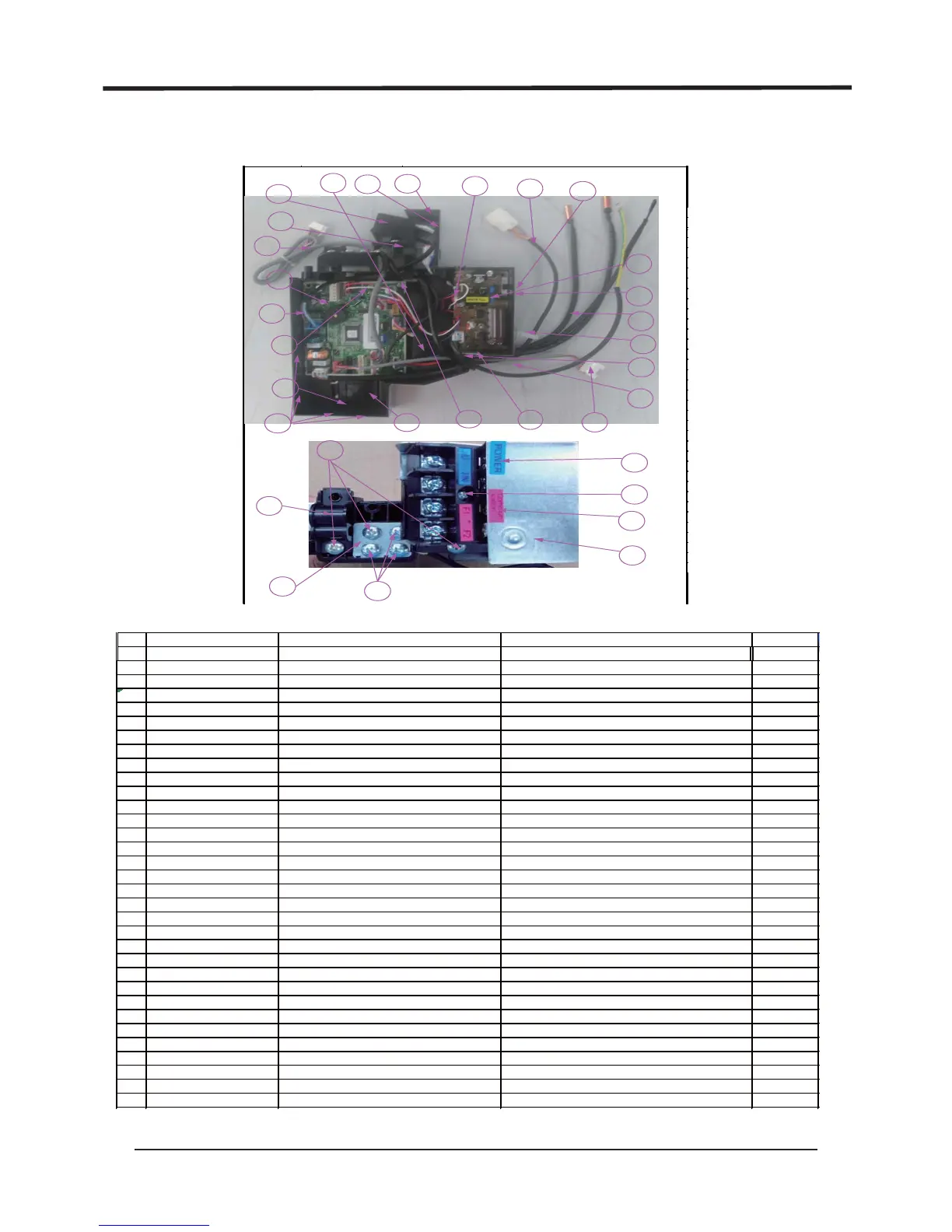

5-2 ASSY CONTROL IN
4
2
8
1
3
5
7
9
6
10
29
28
27
25
26
24
23
12
21
22
15
16
14
13
30
20
19
18
11
17
31
32
No C O DE
Spec Q'TY
DB93-14236D 1
1
6002- 000630
PBA緖話 2
2
DB93-14208A
power-main(310V 19V)
1
3
DB90-07749B
F-05
1
4
DB93-14218A
Step-main(up)
1
5
DB68-02809A
LABEL BAR CODE
1
6
DB92-02873A
STD4
1
7
DB92-02861A
11W
1
8
DB93-14202A
ma i n- po we r ( S M P S I N )
1
9
DB95-05163A
sensor 1room
ˈ
2evap
1
10
DB61-05891A
F-05
1
11
DB61-05963A
case sub
1
12
DB61-05961A
PLATE CONTROL-LEFT
1
13
DB62-11670A
FLOCKED 52*65*T1 BLACK
1
14
DB62-11656C
PVC 52*30*T1 BLACK
0.052m
15
DB63-03553C
10x10xT0.07,AL SHEET
4
16
DB63-03553D
22x22xT0.07,AL SHEET
1
17
DB65-00326A
TERMINAL BLOCK
1
18
DB61-05812A
PLATE CONTROL-SUB
1
19
DB93-14207A
power-main(12V 5V)
1
20
DB93-14203A
T/B-main(power)
1
21
DB93-14447A
T/B-main(485)
1
22
DB93-14245A
ASSY CONNECTOR WIRE-EARTH
1
23
DB91-00309A
M3,L25,ZPC(WHT),SWRCH18A
1
24
6002-000231
M4,L12,ZPC(WHT),SWRCH18A
`
25
6009-001001
TH,M4,L10,ZPC(WHT),SWRCH18A
3
26
DB61-05871A
HOLDER-WIRE
1
27
DB68-02809A
LABEL BAR CODE
1
28
DB98-33292A
ASSY-LABEL CAUTION
1
29
DB98-33293A
ASSY-LABEL CAUTION
1
30
DB71-50021A
WIRE-SADDLE
1
31
DB93-14221A
FJM
1
32
DB93-14211A
main-Wifi
1
ASSY CONNECTOR WIRE-DC
WIRE-SADDLE
ASSY CONNECTOR WIRE-DC
ASSY-LABEL CAUTION
ASSY-LABEL CAUTION
HOLDER-WIRE
LABEL BAR CODE
SCREW-TAPPING
SCREW-SPECIAL
ASSY CONNECTOR WIRE-EARTH
ASSY-SCREW TAPPING
ASSY CONNECTOR WIRE-COMM
A
SSY CONNECTOR WIRE-DC SIGNAL
ASSY CONNECTOR WIRE-POWER
TERMINAL BLOCK
PLATE CONTROL-SUB
SHEET-CONTROL
SHEET-CONTROL
SEAL CONTROL-A
SEAL CUTT
SUPPORT-CONTROL
PLATE CONTROL-LEFT
LABEL BAR CODE
ASSY CONNECTOR WIRE-DC
ASSY CASE CONTROL IN
ASSY-SCREW TAPPING
ASSY CONNECTOR WIRE-DC
De s c r i p t i o n
ASSY CON TROL I N
CASE CONTROL IN
ASSY CONNECTOR WIRE-POWER
ASSY THERMISTOR IN
ASSY MODULE
ASSY PCB MAIN IN
AR18(24)HSFNBWKNEU
AR18(24)HSFNBWKNEU
AR18HSFSRWKNER
AR18HSFNRWKNER
