5-2 Samsung Electronics

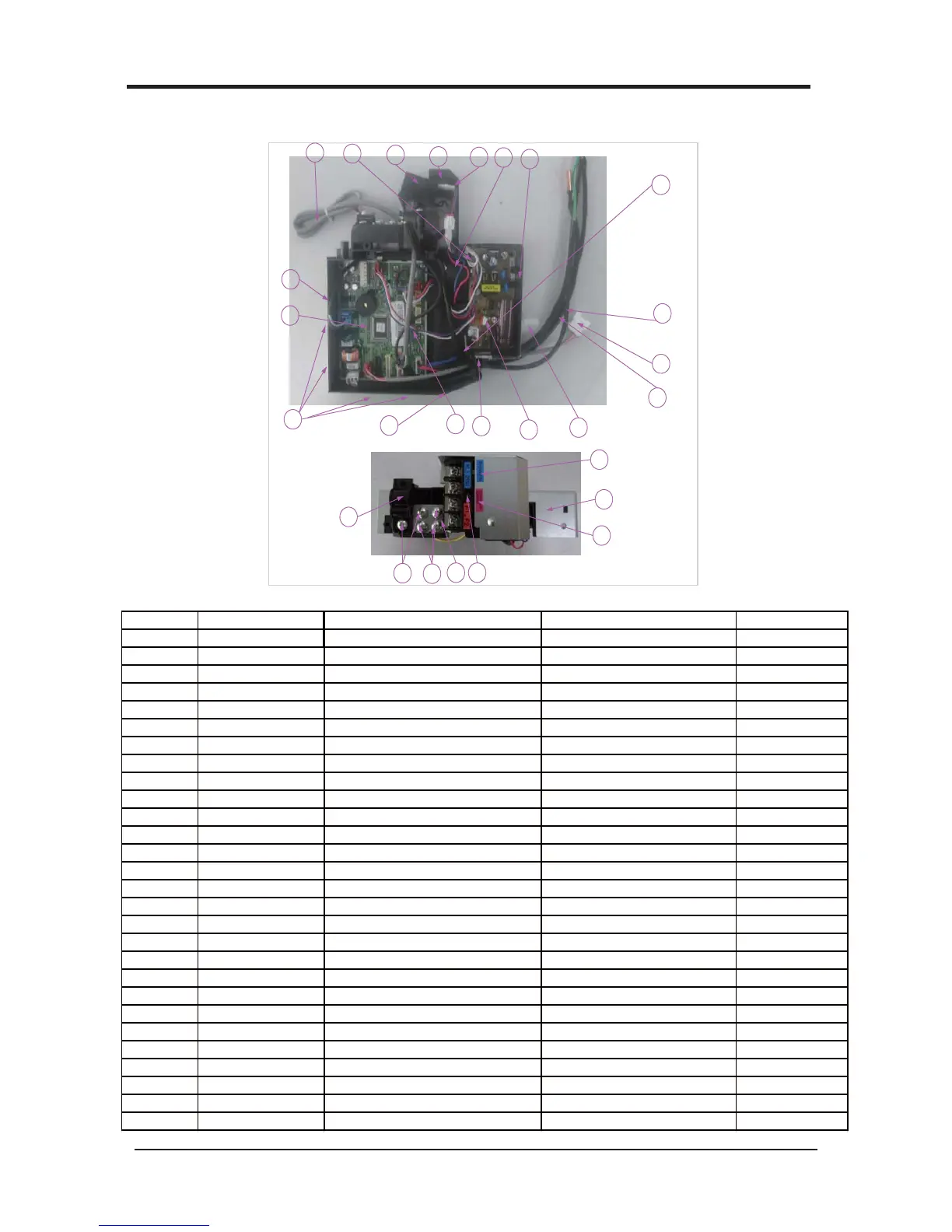

5-2 ASSY CONTROL IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1516
17
18
19
20
21
22
24
25
23
26
27
No CODE Description Spec Q'TY
DB93-14235G ASSY CONTROL IN
1
Aluminum SHEET
10x10xT0.07,AL SHEET
4
2
CASE-CONTROL IN CASE-CONTROL IN 1
3
POWER WIRE T/B-main(power) 1
4
EARTH WIRE
EARTH WIRE
1
5
TERMINAL BLOCK TERMINAL BLOCK 1
6
SEAL CUTT PVC,BLACK,T1,W54 1
7
SEAL CONTROL
FLOCKED,BLACK,T1,W50,54
1
8
ASSY-LABEL
ASSY-LABEL
1
9
COMMUNICATION WIRE T/B-main(485) 1
10
FUSE WIRE power-main(12V 5V) 1
11
Aluminum SHEET
22x22xT0.07,AL SHEET
1
12
ASSY-LABEL ASSY-LABEL 1
13
PLATE-CONTROL IN F01 1
14
ASSY-LABEL
ASSY-LABEL
1
15
SCREW M3,L25,ZPC(WHT),SWRCH18A嘅 1
16
PLATE
PLATE
1
17
SCREW TH,M4,L10,ZPC(WHT),SWRCH18A嘅 3
18
SCREW M4,L12,ZPC(WHT),SWRCH18A嘅 2
19
HOLDER-WIRE CLAMP
HOLDER-WIRE CLAMP
1
20
MAIN PBA STD4 1
21
POWER PBA STD11W 1
22
WIRE-SADDLE
WIRE-SADDLE
1
23
ASSY CONNECTOR WIRE-DC power-main(310V 19V) 1
24
ASSY THERMISTOR IN sensor 1roomˈ2evap 1
25
ASSY CONNECTOR WIRE-DC
FJM
1
26
ASSY CONNECTOR WIRE-DC
main-power(SMPS IN)
1
27
ASSY CONNECTOR WIRE-DC main-Wifi 1
DB92-02873A
6009-001001
6002-000231
DB61-05871A
DB68-33292A
DB91-00309A
DB63-03553C
DB61-05826A
DB93-14203A
DB93-14245A
DB65-00326A
DB93-14211A
DB62-11656F
DB62-11680A
DB68-02809A
DB68-33293A
DB61-05807A
DB93-14208A
DB95-05163A
DB93-14221A
DB93-14202A
DB93-14447A
DB93-14207A
DB63-03553D
DB92-02861A
DB71-50021A
DB61-05812A
