4-2 Outdoor Unit (N-V2MD)
AR09TXFCAWKXEU
AR12TXFCAWKXEU

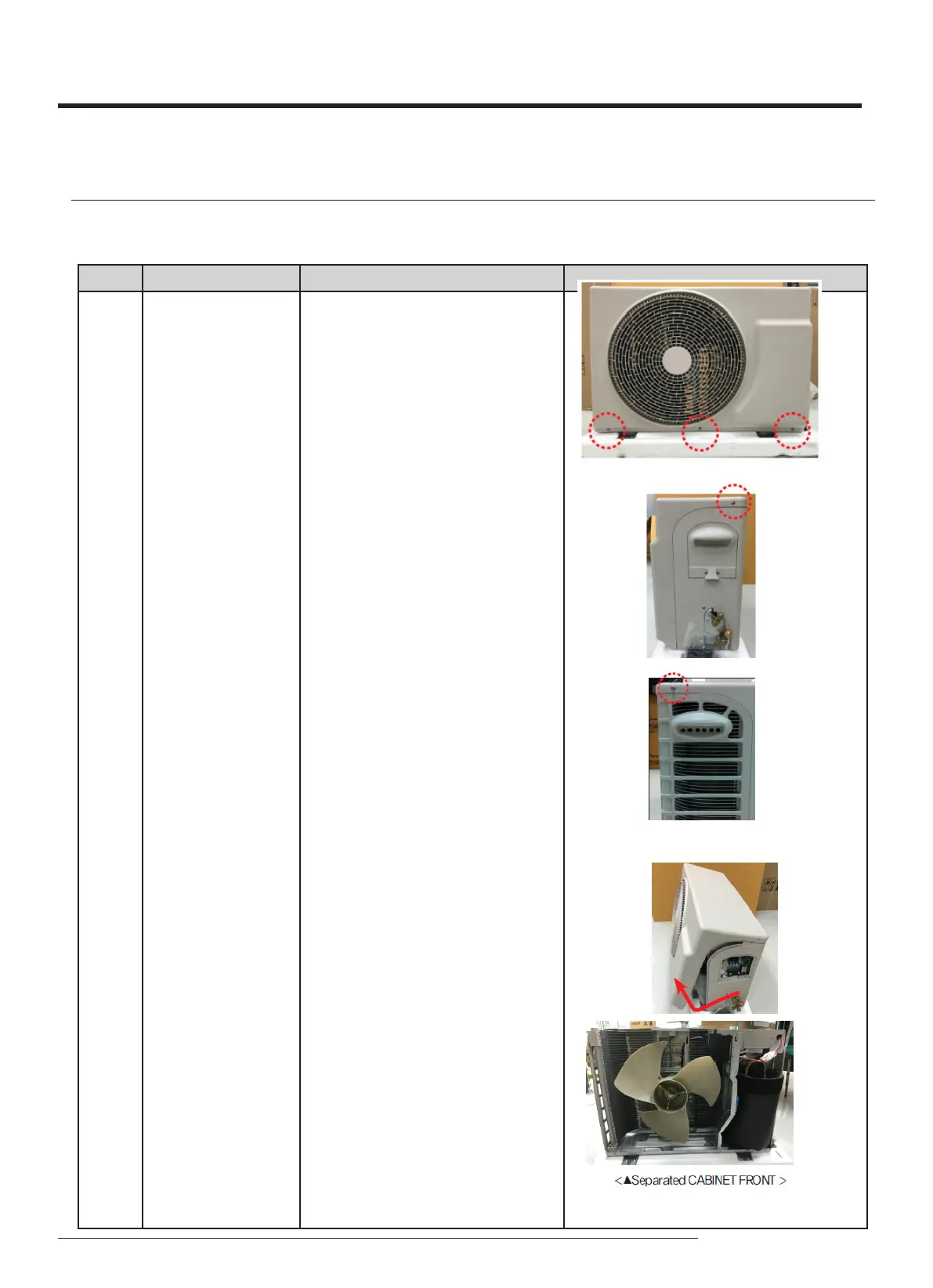

No. Parts Procedure Remark
1 Common work 1) First, stop the operation of the air
conditioner, please cut off the supply of
power.
2) Please separate outdoor after loosen
the bottom screw 3EA of the front three
places. (+ screw driver Use)
3) Please separate the positions of the
sides screw 1EA (+ screw driver Use)
4) Please remove the portions of the
side screw 1. (+ screw driver Use)
5) Please separate lifting up and
grab the ends of the lower end of the
CABINET FRONT.
